Description

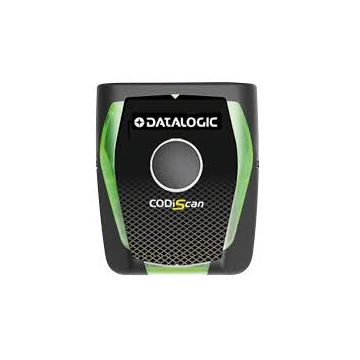

Boost your workforce productivity with the Datalogic CODiScan, a lightweight, hands-free wearable Bluetooth barcode scanner engineered for retail, logistics, and manufacturing environments. Weighing only 44 grams, this ergonomic device provides unmatched comfort and scanning performance, reducing worker fatigue and increasing accuracy by up to 33%.
Designed with Bluetooth 5.2 BLE, 2D medium-range imaging, and IP54 protection, the CODiScan ensures reliable, high-speed scanning even in tough environments. Pair it easily with Android devices via the Mobile Aladdin App or connect multiple scanners to a PC or cloud through the optional Datalogic Gateway.
Product Features
- Lightweight & Ergonomic: Only 44g – ideal for all-day wear on hand, belt, or neck
- 2D Medium-Range Scanning: Captures 1D/2D barcodes up to 1.6 metres
- Feedback System: Green Spot, audio beeps, LEDs, and vibration feedback
- Smart Aiming: Ensures accurate targeting, reducing scan errors and boosting speed
- IP54 Rated: Dust and water resistant; rugged for retail, warehouse, and logistics use
- Battery Life: 16 hours / 12,000 scans per charge
- Modular Hand Trigger: Washable, adjustable, ambidextrous, reusable
- Bluetooth® 5.2 + Wi-Fi Gateway Support: Seamless pairing and 100m range
- Datalogic Aladdin™ Compatibility: Easy configuration and firmware updates
- Multiple Charging Options: Available in 1-slot, 2-slot (modular up to 6), or 12-slot stations
Product Specifications
| Specification | Details |
|---|---|
| Dimensions | 53 x 44 x 19 mm (2.0 x 1.7 x 0.7 in) |
| Weight | 44 g (1.5 oz) |
| Scanning Capability | 1D/2D barcodes incl. PDF417, QR, DataMatrix, Postal codes |
| Scan Range | Up to 5 m depending on barcode type and size |
| Connectivity | Bluetooth BLE 5.2 (100 m range), Wi-Fi via optional Gateway |
| Battery | 640 mAh Li-polymer – 16 hours / 12,000 scans |
| Feedback Modes | LEDs (3), Green Spot, audio (85 dBA), vibration |
| Operating Temp | -20°C to 50°C |
| Drop Resistance | 1.8 m to concrete, 1,000 tumbles @ 0.5 m |
| Charging Time | 2.15 hours (via Datalogic charger) |
| Environmental Rating | IP54 - Water and dust resistant |
| Mounting Options | Hand (adjustable trigger), neck, belt, pocket |
Features
Connectivity:
- Bluetooth
Ruggedness:
- Non-rugged
Brand:
Datalogic
Form Factor:
- Handsfree
Scan Engine/Technology:
- 2D
Interface:
- Bluetooth
Scan Range:
- Standard Range
Colour:
- Green
Rugged:
- General purpose
Usage:
- Entry Level
- Mid Level
IP Rating:
- IP54
Industry/Vertical:
- Hospitality
- Logistics/Warehouse
- Transportation
Warranty:
- 1 Year
Product Type/Condition:
- New
