Description

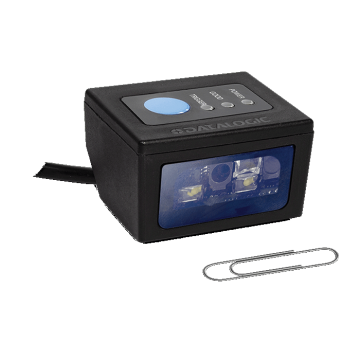

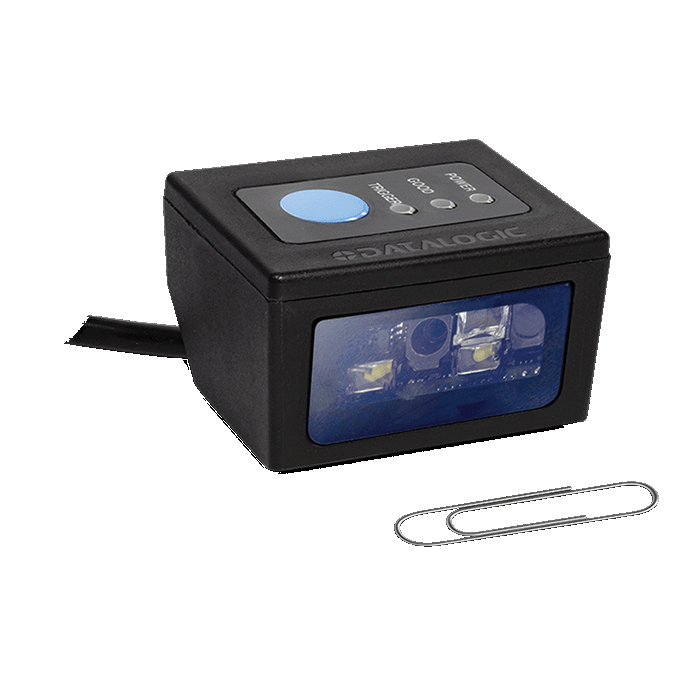

The Datalogic DSM0400 2D Fixed Scan Module is a compact yet high-performance scanning solution engineered for embedded and fixed-mount applications. Equipped with a megapixel imager (MP-DL), this scanner offers excellent motion tolerance, enhanced resolution, and a versatile aiming system. Whether you're integrating into self-checkouts, robotics, ticketing systems, or industrial kiosks, the DSM0400 delivers fast, accurate barcode capture even in tight spaces. With USB connectivity and a rugged, solvent-resistant IP54-rated enclosure, it ensures long-lasting reliability in demanding environments like retail, logistics, healthcare, and manufacturing.
Product Features
- Compact fixed-mount design for seamless integration
- 2D megapixel imager for high-resolution barcode capture
- Excellent motion tolerance for fast scanning
- Datalogic’s Green Spot technology for visual good-read feedback
- Supports 1D, 2D, postal, and stacked codes
- Water and dust-resistant (IP54-rated)
- Interface: USB with 50 cm cable included
- Integrated beeper and LED indicators
- Wide reading angle for enhanced field of view
- Supports multiple scan modes including autosense and software trigger
Product Specifications
| Specification | Details |
| Model Number | DSM0422-DL |
| Scan Engine/Tech | 2D Area Imager, Megapixel (MP-DL) |
| Connectivity | Wired |
| Interface | USB |
| Cable Length | 50 cm |
| Colour | Black |
| Dimensions | 4.7 × 2.7 × 3.8 cm |
| Weight | Approx. 131 g (USB version) |
| Drop Resistance | 3 ft (0.9 m) to concrete |
| IP Rating | IP54 |
| Operating Temp | -20°C to 50°C |
| OS Compatibility | Windows, Linux, Android |
| Certifications | CE, RoHS, Laser Class 2 |
| Reading Resolution | Down to 2 mil (1D), 6 mil (2D) |
| Warranty | 3 Years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Datalogic
Form Factor:
- Fixed Mount
Scan Engine/Technology:
- 2D
Interface:
- USB
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 3 Years
Product Type/Condition:
- New
