Description

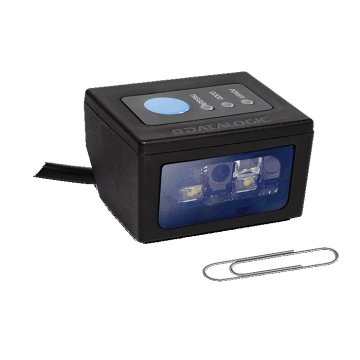

The Datalogic DSM0400 2D Fixed Scan Module with RS-232 interface and a 2-metre cable is a robust, high-performance barcode scanner tailored for embedded and OEM solutions. Powered by a megapixel MP-DL imager, this compact device excels in speed, accuracy, and motion tolerance, making it ideal for high-throughput environments such as self-checkout, AGVs, kiosks, ticketing systems, and industrial robotics.
With advanced decoding of 1D, 2D, postal, and stacked barcodes, IP54-rated protection, and Green Spot technology for visual feedback, the DSM0400 ensures dependable performance under tough conditions. Its multi-position mounting brackets and compact footprint make it a plug-and-play favourite for system integrators across retail, transport, healthcare, and manufacturing industries.
Product Features
- Compact fixed-mount scanner with RS-232 connectivity
- High-resolution 2D MP-DL imager for rapid barcode capture
- Supports 1D, 2D, postal, and stacked barcode symbologies
- Patented Datalogic Green Spot good-read feedback
- Wide reading angles and high motion tolerance
- Water and dust-resistant (IP54 rated)
- Includes 2m cable for flexible integration
- Mounting brackets support multi-directional installation
- Integrated image capture in JPEG/BMP formats
- Interface support for Windows, Linux, and Android platforms
Product Specifications
| Specification | Details |
| Model Number | DSM0452-DL |
| Scan Engine/Technology | 2D Area Imager – MP-DL |
| Connectivity | Wired |
| Interface | RS-232 |
| Cable Length | 2 metres |
| Colour | Black |
| Dimensions | 4.7 × 2.7 × 3.8 cm |
| Weight | Approx. 155 g (RS-232 version) |
| Drop Resistance | 3 ft (0.9 m) to concrete |
| IP Rating | IP54 |
| Operating Temp | -20°C to 50°C |
| OS Compatibility | Windows, Linux, Android |
| Image Capture | Greyscale (256), BMP/JPEG formats |
| Reading Indicators | Green Spot, Beeper, LED |
| Input Voltage | 5 VDC ± 5% |
| Reading Resolution | 1D: 2.5 mils, 2D: 6 mils |
| Reading Range (13 mil EAN-13) | Up to 42 cm |
| Certifications | CE, RoHS, Laser Class 2 |
| Warranty | 3 Years |
Features
- Wired
- Non-rugged
- Handheld
- 2D
- Serial/RS232
- Standard Range
- Black
- General purpose
- Entry Level
- IP54
- Logistics/Warehouse
- 3 Years
- New
