Description

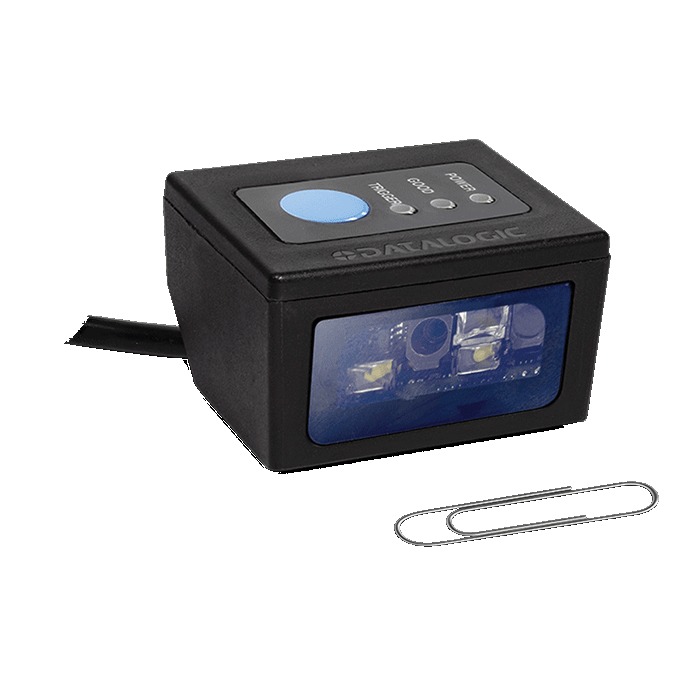

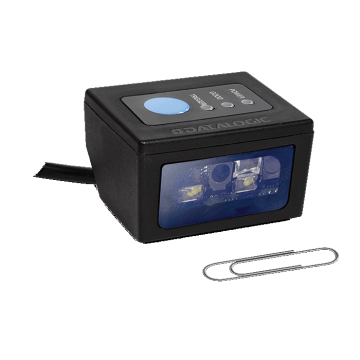

The Datalogic DSM0400 Fixed Scan Module (MP-SR) is a rugged, compact, and high-performance 2D barcode reader designed for space-sensitive embedded applications. Featuring a megapixel imager with standard range optics, this scanner delivers reliable and precise barcode capture in OEM environments like kiosks, AGVs, access control systems, self-checkouts, and lab equipment.
With its USB interface, highly visible 4-dot aimer, and Datalogic’s patented Green Spot technology, the DSM0400 ensures consistent scanning performance and clear good-read feedback. The device is housed in a solvent-resistant IP54-rated enclosure and is built to withstand the rigors of industrial and commercial use.
Product Features
- High-resolution MP-SR (Standard Range) 2D imager
- Compact fixed-mount design for OEM integration
- USB connectivity with multiple interface support
- Reads all 1D, 2D, postal, and stacked codes
- Wide operating temperature: -20°C to 50°C
- IP54 rated for dust and water resistance
- 4-dot aimer with crosshair for precise targeting
- Integrated Green Spot and audible beeper
- Multiple scanning modes: autosense, software triggering
- Supports image capture in BMP or JPEG formats
- High motion tolerance and fast read speed
- Supplied with 50 cm USB cable
- 5-sided mounting bracket included for flexible installation
Product Specifications
| Specification | Details |
| Model Number | DSM0422 |
| Scan Range | Standard Range (SR) |
| Connectivity | Wired |
| Cable Length | 50 cm |
| Colour | Black |
| Dimensions | 4.7 × 2.7 × 3.8 cm |
| Weight | ≈ 131 g (USB version) |
| Drop Resistance | 3 ft (0.9 m) to concrete |
| IP Rating | IP54 |
| Operating Temp | -20°C to 50°C |
| Storage Temp | -40°C to 70°C |
| Humidity | 5% – 95% (non-condensing) |
| Light Source | 650 nm VLD aimer, white LED illumination |
| Motion Tolerance | Excellent |
| Reading Angle | Pitch ±60°, Roll ±180°, Skew ±60° |
| OS Compatibility | Windows, Linux, Android |
| Power Input | 5 VDC ± 5% |
| Print Contrast | ≥ 25% |
| Image Capture | BMP, JPEG (Grayscale 256 levels) |
| Reading Indicators | Green Spot, Top LED, Adjustable Beeper |
| Certifications | CE, RoHS, Laser Class 2 |
| Mounting Options | 5-side bracket (included) |
| Warranty | 3 Years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Datalogic
Form Factor:
- Fixed Mount
Scan Engine/Technology:
- 2D
Interface:
- USB
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 3 Years
Product Type/Condition:
- New
