Description

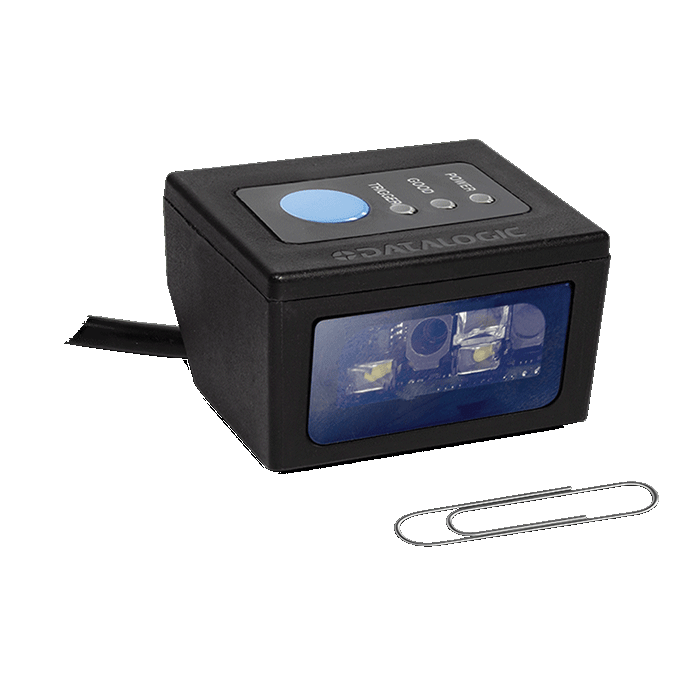

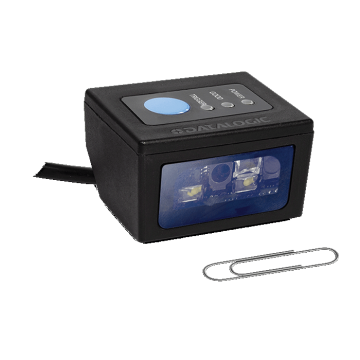

The Datalogic DSM0400 MP-WA RS-232 Fixed Scan Module delivers high-performance megapixel 2D scanning in a rugged, compact form factor ideal for embedded OEM applications such as self-checkouts, kiosks, AGVs, robotics, healthcare devices, and industrial automation.
Engineered for integration, this scanner includes a wide-angle lens, RS-232 interface, and a 2-meter cable, with IP54 sealing, Green Spot read feedback, and versatile mounting options. Designed for high motion tolerance, it excels in barcode decoding, image capture, and document scanning even in space-constrained environments.
Product Features
- Wide-Angle Megapixel 2D scan engine
- Compact design optimized for OEM & kiosk integration
- RS-232 interface with 2 m cable
- Reads all standard 1D, 2D, stacked & postal barcodes
- Green Spot and LED indicators for visual feedback
- Excellent motion tolerance with high-speed decoding
- Image capture in BMP, JPEG (256-level grayscale)
- High-impact resin enclosure, solvent & disinfectant resistant
- IP54 rating for water and dust protection
- Autosense and software triggering support
- Adjustable beeper for audible read feedback
- Mountable from 5 sides with included bracket
Product Specifications
| Specification | Details |
| Model Number | DSM0452-WA |
| Scan Range | Wide Angle (WA) |
| Connectivity | Wired |
| Interface | RS-232 |
| IP Rating | IP54 |
| Operating Temp | -20°C to 50°C |
| Storage Temp | -40°C to 70°C |
| Humidity | 5% – 95% (non-condensing) |
| Motion Tolerance | Excellent |
| Reading Angle | Pitch ±60°, Roll ±180°, Skew ±60° |
| Field of View | 52° H × 40° V (Wide Angle) |
| OS Compatibility | Windows, Linux, Android |
| Power Input | 5 VDC ± 5% |
| Current (Operating) | ≈ 246 mA (RS-232) |
| Standby/Idle Current | ≈ 50 mA |
| Low Power Mode | ≈ 9 mA |
| Image Capture | BMP, JPEG (256-level grayscale) |
| Reading Indicators | Green Spot, Top LED, Adjustable Beeper |
| Certifications | CE, RoHS, Laser Class 2 |
| Mounting Options | 5-side bracket (included) |
| Warranty | 3 Years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Datalogic
Form Factor:
- Fixed Mount
Scan Engine/Technology:
- 2D
Interface:
- Serial/RS232
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 3 Years
Product Type/Condition:
- New
