Description

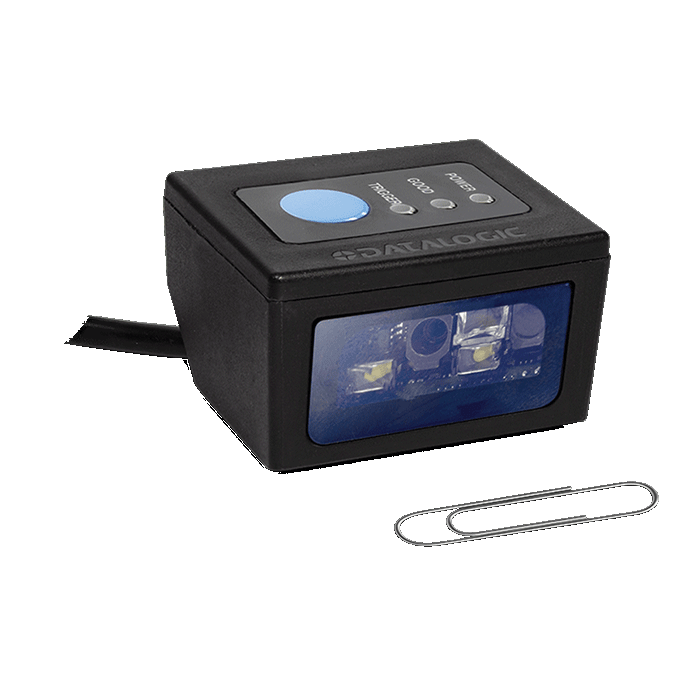

The Datalogic DSM0400 MP-WA Fixed Scan Module is a wide-angle megapixel 2D scanner, purpose-built for embedded applications in self-checkouts, kiosks, robotics, AGVs, healthcare labs, and more. With its compact design, high-resolution imaging, and USB connectivity, this module provides dependable scanning even in tight spaces.
The scanner features a megapixel wide-angle imager (MP-WA), a highly visible 4-dot aimer with a center cross, and Datalogic’s patented Green Spot for intuitive good-read feedback. Its IP54-rated enclosure is impact- and solvent-resistant, ensuring long-lasting performance in demanding environments.
Product Features
- 2D megapixel wide-angle scan engine (MP-WA)
- Compact fixed-mount design for space-limited installations
- USB interface with support for multiple modes (HID-KBD, COM, OEM)
- Reads all major 1D, 2D, postal, and stacked codes
- Excellent motion tolerance and image capture capabilities
- High-resolution reading down to 2 mils
- Green Spot technology and top LED for clear read feedback
- IP54 sealed housing for dust and water resistance
- Multiple scan modes: autosense, software triggering
- Built-in adjustable beeper for audible feedback
- Supplied with 50 cm USB cable
- 5-sided mounting bracket included for versatile installation
Product Specifications
| Specification | Details |
| Model Number | DSM0422-WA |
| Scan Range | Wide Angle (WA) |
| Connectivity | Wired |
| Interface | USB (HID-KBD, COM, OEM, Composite) |
| Cable Length | 50 cm |
| Colour | Black |
| Dimensions | 4.7 × 2.7 × 3.8 cm |
| Weight | ≈ 131 g (USB version) |
| Drop Resistance | 3 ft (0.9 m) to concrete |
| IP Rating | IP54 |
| Operating Temp | -20°C to 50°C |
| Storage Temp | -40°C to 70°C |
| Humidity | 5% – 95% (non-condensing) |
| Motion Tolerance | Excellent |
| Reading Angle | Pitch ±60°, Roll ±180°, Skew ±60° |
| Field of View | 52° H × 40° V (Wide Angle) |
| OS Compatibility | Windows, Linux, Android |
| Power Input | 5 VDC ± 5% |
| Current (Operating) | ≈ 214 mA (USB) |
| Warranty | 3 Years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Datalogic
Form Factor:
- Fixed Mount
Scan Engine/Technology:
- 2D
Interface:
- USB
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 3 Years
Product Type/Condition:
- New
