Description

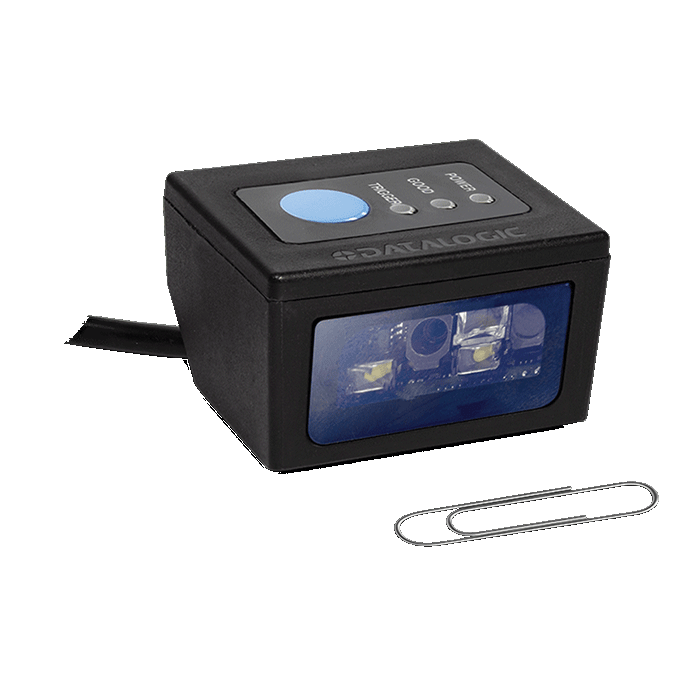

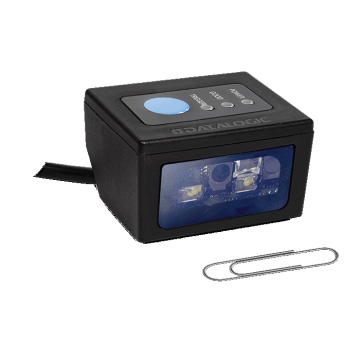

The Datalogic DSM0400 MP-DL Fixed Scan Module delivers high-performance megapixel 2D scanning in a compact and rugged housing, perfect for embedded OEM applications such as self-checkouts, ticket readers, AGVs, access control, robotics, healthcare kiosks, and industrial automation.
Equipped with dual RS-232 and USB interfaces via RJ-45 connector, this model ensures flexible connectivity across multiple platforms. Featuring Green Spot read confirmation, a 4-dot aimer with center cross, IP54 sealing, and high motion tolerance, this fixed mount barcode scanner provides lightning-fast decoding, document scanning, and image capture even in space-constrained or high-volume environments.
Product Features
- 2D Megapixel scan engine (MP-DL version)
- Dual-interface support: RS-232 and USB (via RJ-45)
- High visibility 4-dot aimer with crosshair for targeting
- Compact design ideal for kiosks, robots, and automation
- Excellent motion tolerance and fast scanning speed
- Green Spot visual confirmation and adjustable beeper
- Autosense and software triggering modes
- Disinfectant-resistant, solvent-tolerant IP54-rated enclosure
- Multiple mounting options with 5-side mounting bracket
- Captures images in BMP and JPEG (256-level grayscale)
- Reads 1D, 2D, postal, stacked, and composite codes
- Supports Windows, Android, and Linux systems
- Rugged build with 3 ft drop resistance
Product Specifications
| Specification | Details |
| Model Number | DSM0400 MP-DL |
| Dimensions | 4.7 × 2.7 × 3.8 cm |
| Weight | ≈ 96 g (RJ-45 version) |
| Drop Resistance | Withstands 3 ft (0.9 m) to concrete |
| IP Rating | IP54 |
| Operating Temp | -20°C to 50°C |
| Storage Temp | -40°C to 70°C |
| Humidity | 5% – 95% (non-condensing) |
| Motion Tolerance | Excellent |
| Reading Angle | Pitch ±60°, Roll ±180°, Skew ±60° |
| Field of View | 42° H × 32° V (MP-DL model) |
| OS Compatibility | Windows, Linux, Android |
| Power Input | 5 VDC ± 5% |
| Print Contrast | ≥ 25% |
| Image Capture | BMP, JPEG (256-level grayscale) |
| Reading Indicators | Green Spot, Top LED, Adjustable Beeper |
| Certifications | CE, RoHS, Laser Class 2 |
| Mounting Options | 5-side bracket (included) |
| Warranty | 3 Years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Datalogic
Form Factor:
- Fixed Mount
Scan Engine/Technology:
- 2D
Interface:
- USB
- Serial/RS232
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Retail
Warranty:
- 3 Years
Product Type/Condition:
- New
