Description

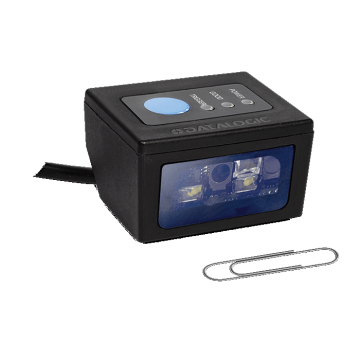

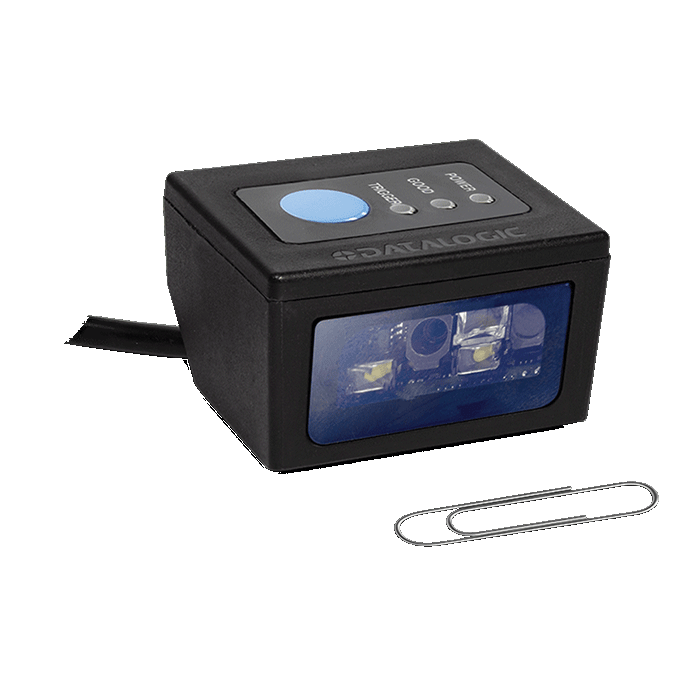

The Datalogic DSM0400 MP-WA Fixed Scan Module offers megapixel 2D barcode scanning with an extended wide-angle field of view, ideal for tight-space installations across retail, automation, healthcare, and transport sectors. Designed for OEM integration, this rugged barcode reader delivers high-speed decoding of 1D, 2D, postal, stacked, and composite barcodes with image capture, Green Spot feedback, and a highly visible 4-dot aimer with center cross.
This wide-angle model features dual RS-232 and USB interface via RJ-45 connector, perfect for embedded systems, kiosks, robotics, AGVs, self-checkouts, and access control stations where space is limited but performance is essential.
Product Features
- 2D Megapixel wide-angle imaging
- Extended field of view: 52° H × 40° V
- Compact rugged housing ideal for embedded applications
- Dual interface: RS-232 + USB via RJ-45
- Green Spot visual confirmation and top LED feedback
- Integrated adjustable beeper
- Autosense and software triggering support
- Excellent motion tolerance and fast decoding
- Captures images in BMP and JPEG formats
- Reads all major 1D/2D/postal/composite barcodes
- Water and dust resistant (IP54 rated)
- Drop-tested for 3 ft impact resistance
- Mountable from 5 different sides (bracket included)
- Supports Windows, Android, and Linux
Product Specifications
| Specification | Details |
| Model Number | DSM0400 MP-WA |
| Drop Resistance | Withstands 3 ft (0.9 m) drops to concrete |
| IP Rating | IP54 |
| Operating Temp | -20°C to 50°C |
| Storage Temp | -40°C to 70°C |
| Humidity | 5% – 95% (non-condensing) |
| Motion Tolerance | Excellent |
| Reading Angle | Pitch ±60°, Roll ±180°, Skew ±60° |
| Print Contrast | ≥ 25% |
| Image Capture | BMP, JPEG (256-level grayscale) |
| Reading Indicators | Green Spot, Top LED, Adjustable Beeper |
| Mounting Options | 5-side bracket (included) |
| Supported Barcodes | 1D, 2D, Postal, Stacked, Composite |
| OS Compatibility | Windows, Android, Linux |
| Certifications | CE, RoHS, Laser Class 2 |
| Warranty | 3 Years |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Datalogic
Form Factor:
- Fixed Mount
Scan Engine/Technology:
- 2D
Interface:
- USB
- Serial/RS232
Scan Range:
- Standard Range
Colour:
- Black
Rugged:
- General purpose
Usage:
- Entry Level
IP Rating:
- IP54
Industry/Vertical:
- Logistics/Warehouse
Warranty:
- 3 Years
Product Type/Condition:
- New
