Datalogic Gryphon GM4500-HC 2D Healthcare Barcode Scanner Kit with USB & 433 MHz Wireless Charging Base

Wireless, Non-rugged, Datalogic, Handheld, 2D, USB, Standard Range, White, General purpose, Entry Level, IP52, Healthcare, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
GM4500-HC-433K1RED

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

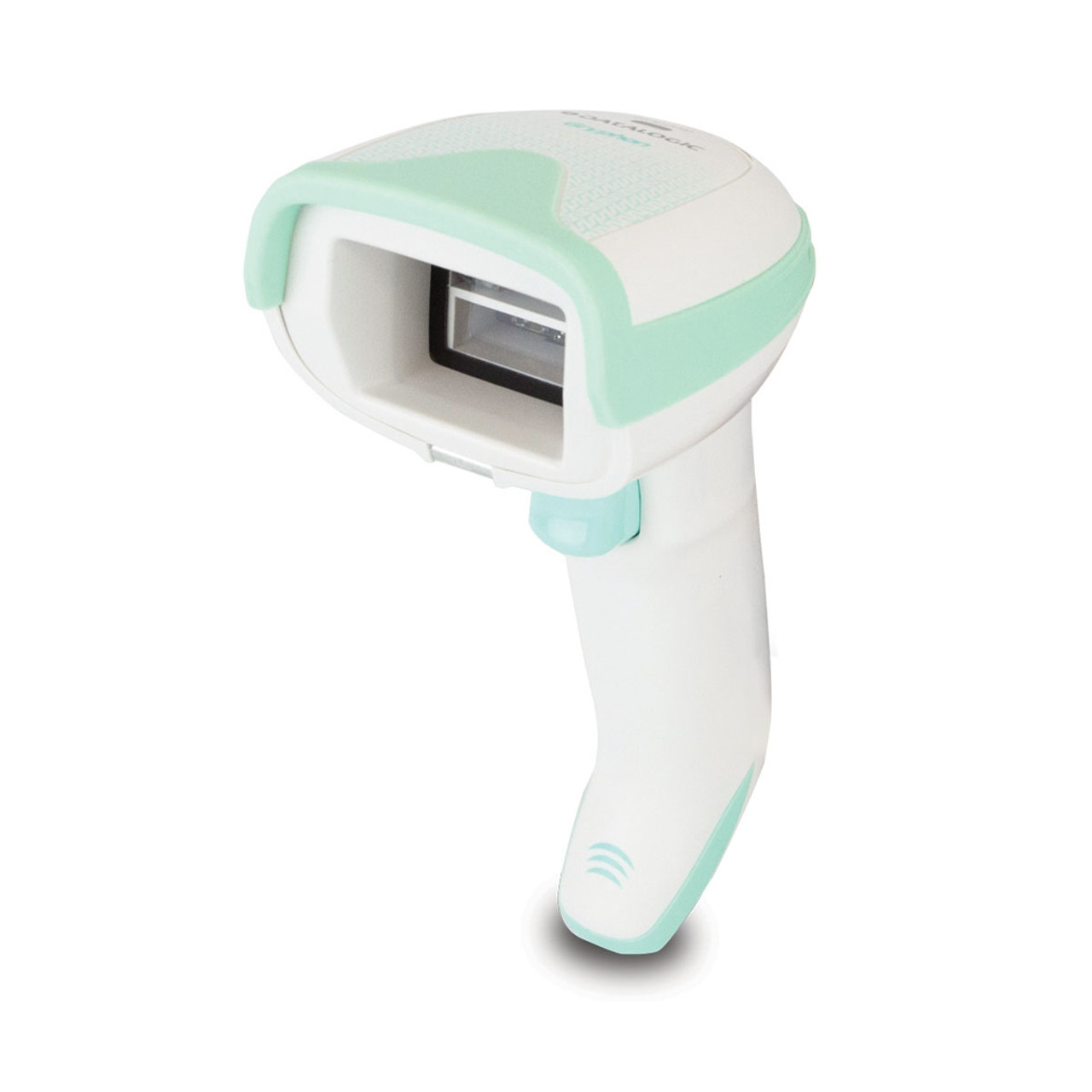

The Datalogic Gryphon GM4500-HC is a premium 2D cordless barcode scanner purpose-built for healthcare environments. Engineered with disinfectant-ready and anti-microbial enclosures, this scanner ensures reliable and safe barcode capture for bedside patient care, lab processing, or pharmacy operations. This healthcare model comes with STAR Cordless System communication on 433 MHz frequency, offering dependable long-range wireless data transfer. The kit includes the GM4500-HC scanner, WLC4090-HC-433 base with wireless charging, and a USB cable for streamlined setup.

Combining warm white illumination and a red aiming system, the Gryphon GM4500-HC excels in reading from screens and color-coded labels without straining the user’s eyes. Datalogic’s patented 3GL™ (Three Green Lights) and ‘Green Spot’ technology provide real-time visual confirmation of accurate scans, ideal for noise-sensitive clinical environments. Its wireless battery charging system eliminates contact-based failures, reduces downtime, and lowers the total cost of ownership.

Product Features

  • Designed for Healthcare: Disinfectant-ready, anti-microbial housing meets ISO22196 & JISZ 2801 standards.
  • Reliable Cordless Scanning: STAR 433 MHz radio ensures robust wireless performance with a 50m open-air range.
  • Wireless Charging Cradle: No-contact charging system extends product longevity and reduces maintenance.
  • Advanced Imaging: 1 Megapixel sensor with warm white illumination and red aimer captures 1D/2D/postal/stacked codes.
  • Superior Feedback: 3GL™ technology (Green Spot + Dual LEDs) confirms every good scan even in quiet zones.
  • High Endurance Battery: 3250 mAh lithium-ion battery delivers up to 80,000 scans per charge.
  • Ergonomic Design: Lightweight, well-balanced form factor for daily clinical workflows.
  • Durable Build: IP52-rated sealing, 1.8 m drop resistance, and 16kV ESD protection.
  • Multiple Interfaces: USB, RS-232, and Keyboard Wedge support for flexible system integration.
  • Wide Decode Support: Reads from mobile devices, curved surfaces, low-contrast or damaged barcodes.


Product Specifications

Specification

Details

Scanner Type

Cordless 2D Imager (Healthcare Grade)

Radio Frequency

433 MHz (Datalogic STAR Cordless System™)

Charge Time

Approx. 4 hours (via 12VDC)

Interfaces Supported

USB, RS-232, Keyboard Wedge

Sensor Resolution

1 Megapixel (1280 x 800 pixels)

Aimer / Illumination

Red Laser 650 nm / Warm White LED

Sealing / Durability

IP52 rated, 1.8 m drop tested, 16kV ESD

Weight

235 g / 8.29 oz

Dimensions (L×W×H)

16.6 × 6.8 × 10.9 cm

Operating Temperature

0 to 50 °C

Storage Temperature

-40 to 70 °C

Humidity

0 - 95% non-condensing

Motion Tolerance

35 IPS

Reading Feedback

Green Spot, 3GL™, Vibration (optional)

Enclosure

Disinfectant-Ready with Anti-Microbial Additives

Compliance

China RoHS, EU RoHS, IEC 60825 Class 2 (Laser Safety)

Warranty

3 Years

Features

Connectivity:
  • Wireless
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • White
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP52
Industry/Vertical:
  • Healthcare
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (688-datasheet.pdf, 921 Kb) [Download]
