Description

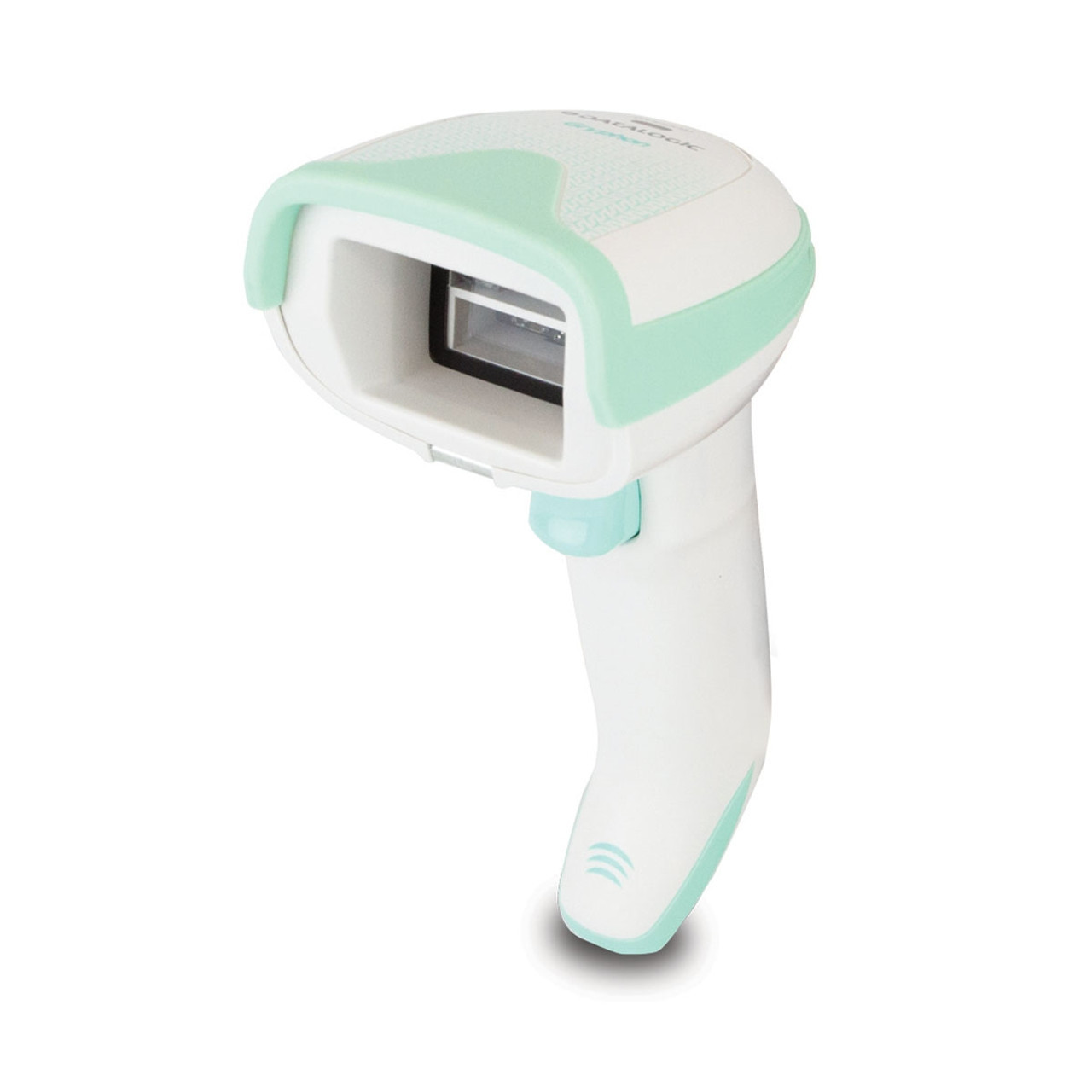

The Datalogic Gryphon GM4500-HC 2D Barcode Scanner Kit is engineered for the demanding environments of healthcare and clinical settings. Featuring disinfectant-ready and antimicrobial-treated housing, this scanner is ideal for patient care, pharmacy, lab, and administration use. Powered by Datalogic’s STAR Cordless System at 910 MHz, this wireless imager delivers enhanced mobility and performance while helping reduce cross-contamination risks.
Equipped with a red aimer, high-performance 2D imaging, Motionix™ motion-sensing technology, and a wireless charging base (WLC4090-HC-910), this scanner ensures efficient data capture even from curved, tiny, or low-contrast barcodes. With image capture, 3GL (Three Green Lights) for positive read confirmation, and up to 80,000 scans per charge, it excels in mission-critical healthcare tasks.
Product Features
- Healthcare Compliant: Disinfectant-ready enclosure with antimicrobial additives, ISO22196 & JISZ 2801 certified.
- 910 MHz Wireless Communication: Datalogic STAR Cordless System ensures secure, reliable connectivity with up to 50 m range.
- Red Illumination Aimer: Precise 4-dot aimer with center cross for accurate targeting on medical packaging and lab labels.
- Wireless Battery Charging: Contactless charging with the included WLC4090-HC-910 cradle reduces maintenance costs.
- High Scan Performance: Reads 1D, 2D, postal, and stacked codes, including those on curved, reflective, or poorly printed surfaces.
- Image Capture Ready: Supports JPEG, BMP, and TIFF for documentation and patient recordkeeping.
- Durable & Drop-Resistant: IP52-rated housing, withstanding 1.8 m drops and resistant to harsh cleaning chemicals.
- Multi-Interface Support: USB (included), RS-232, and Keyboard Wedge interface options available.
- Visual & Tactile Feedback: 3GL feedback with Green Spot, LEDs, and optional vibration – ideal for quiet healthcare environments.
- Long Battery Life: Replaceable 3250 mAh lithium-ion battery offers 80,000+ scans per charge with 4-hour full recharge time.
Product Specifications
Specification | Details |
Model | Datalogic Gryphon GM4500-HC 2D |
Frequency | 910 MHz – Datalogic STAR Cordless System |
Image Sensor | 1 Megapixel (1280 x 800 pixels) |
Illumination | Red laser aimer, Warm White illumination |
Drop Resistance | 1.8 m (6.0 ft) onto concrete |
Sealing Rating | IP52 |
Battery Type | Lithium-Ion, 3250 mAh, replaceable |
Charge Time | 4 hours @ 12V |
Reads per Charge | Up to 80,000 scans |
Motion Tolerance | 35 IPS |
Print Contrast Ratio | Minimum 15% |
Dimensions | 16.6 x 6.8 x 10.9 cm |
Weight | 235 g |
Operating Temperature | 0 to 50 °C |
Storage Temperature | -40 to 70 °C |
Ambient Light | 0 – 100,000 lux |
Warranty | 3-Years |
Features
- Wireless
- Non-rugged
- Handheld
- 2D
- USB
- Standard Range
- White
- General purpose
- Entry Level
- IP52
- Healthcare
- 3 Years
- New
