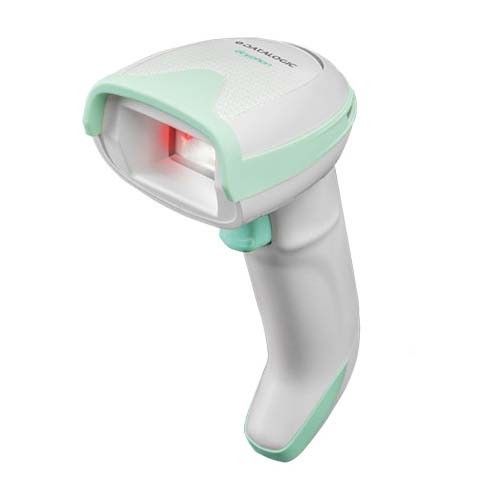

Datalogic Gryphon GM4500-HC 910 MHz Cordless 2D Healthcare Barcode Scanner Kit – USB, Non-EU Version

Wireless, Non-rugged, Datalogic, Handheld, 2D, USB, Standard Range, White, General purpose, Entry Level, IP52, Healthcare, 5 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
GM4500-HC-910K10-B

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

Designed specifically for healthcare environments, the Datalogic Gryphon GM4500-HC 2D barcode scanner delivers top-tier performance with unmatched hygiene standards. This 910 MHz cordless model features Datalogic’s STAR Cordless System and a disinfectant-ready, antimicrobial enclosure – ideal for hospitals, laboratories, and pharmacies where regular sanitation is a must.

Equipped with wireless charging, a high-resolution megapixel sensor, and Datalogic’s exclusive 3GL™ good-read feedback, the Gryphon GM4500-HC ensures fast and accurate scanning of 1D, 2D, postal, and stacked barcodes, even on curved or poorly printed surfaces. The included WLC4090-HC-910 base station with USB interface offers enhanced mobility and a reliable wireless connection – making it a perfect solution for high-demand healthcare workflows.

Product Features

  • Healthcare-ready build: Disinfectant-Ready Enclosure with anti-microbial additives (ISO22196 & JISZ2801 compliant)
  • Cordless operation: Operates on 910 MHz Datalogic STAR Cordless System with up to 50m open-air range
  • Wireless battery charging: Increases durability, reliability, and lowers maintenance needs
  • Advanced 2D imaging: Reads 1D/2D/stacked/postal barcodes on labels, screens, and curved surfaces
  • Motionix™ motion-sensing technology: Automatically switches between handheld and hands-free mode
  • Visual and audio good-read feedback: Patented Green Spot, vibration, and 3GL™ (Three Green Lights)
  • Long battery life: Up to 80,000 scans per charge with quick 4-hour charging via included cradle
  • Robust design: Withstands drops from 1.8m and rated IP52 for dust and water resistance
  • Multi-interface cradle: Includes USB cable and WLC4090-HC-910 wireless charging base station
  • Non-EU version: Optimised for specific regulatory regions (excluding EU)


Product Specifications

Specification

Details

Scanner Type

Cordless 2D Imager (STAR 910 MHz)

Connectivity

USB via base station (WLC4090-HC-910)

Radio Range (Open Air)

Up to 50 m / 164 ft

Image Sensor

1 Megapixel (1280 x 800 pixels)

Aimer & Illumination

Red Laser 650 nm, Warm White LEDs

Motion Tolerance

35 IPS

Supported Symbologies

1D, 2D, Postal, Stacked, Composite

Print Contrast

Minimum 15%

Battery Type

Lithium-Ion 3250 mAh (removable)

Battery Life

Up to 80,000 reads per charge

Charging Time

Approx. 4 hours via base station

Drop Resistance

1.8 m (6 ft) onto concrete

Sealing Rating

IP52

Operating Temperature

0°C to 50°C

Storage Temperature

-40°C to 70°C

Dimensions (LxWxH)

16.6 x 6.8 x 10.9 cm

Weight

235 g

Warranty

5-Years



Features

Connectivity:
  • Wireless
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • White
Rugged:
  • General purpose
Usage:
  • Entry Level
IP Rating:
  • IP52
Industry/Vertical:
  • Healthcare
Warranty:
  • 5 Years
Product Type/Condition:
  • New

Attachments

Brochure (688-datasheet.pdf, 921 Kb) [Download]
