Datalogic Gryphon I GFE4590 2D Megapixel OEM Barcode Scan Engine – Red Illumination, USB/RS232, 12-Pin Connector, 5–14V, Compact Embedded Module,

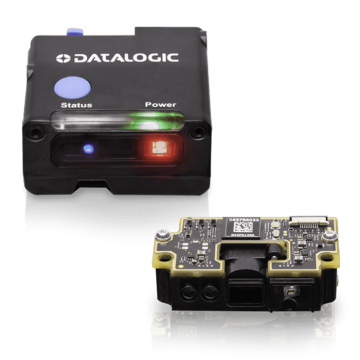

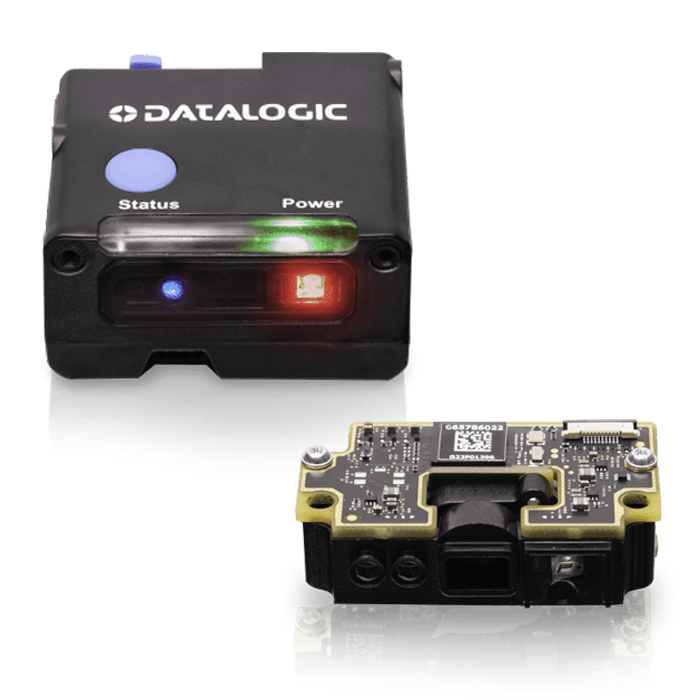

The Datalogic Gryphon I GFE4590 is a compact, high-performance OEM barcode scan engine designed for seamless integration into kiosks, smart lockers, ticketing systems, vending machines, access control gates, and other embedded applications. Built on the Gryphon 4500 Fixed Series platform, this “naked” version offers a minimal, compact form factor for easy installation in custom enclosures, with a 12-pin USB/RS232 interface for flexible connectivity.

Equipped with a 1-megapixel area imager, distinctive red LED illumination, and an intuitive Blue Dot aimer, it delivers fast omnidirectional reading of 1D, 2D, postal, stacked, and composite barcodes, as well as Digimarc digital watermarks. It reads barcodes from both paper and mobile device screens, even in high ambient light up to 120,000 lux.

The IP54-rated, disinfectant-ready housing, UV-protected scratch-resistant window, and rugged build ensure reliability in demanding environments, withstanding 1.5 m drops, vibration, and extreme temperatures. It offers multiple trigger modes — automatic sensing, software, external, or manual — and provides best-in-class feedback with Datalogic’s Green Spot, a top-front LED, and adjustable beeper volume. Backed by a 5-year warranty, the GFE4590 is ideal for OEMs requiring compact, durable, and high-speed barcode scanning.

Product Features

• Ultra-compact “naked” OEM scan engine for easy custom integration
• 1 MP wide-angle area imager for superior scanning and depth of field
• Reads all major 1D, 2D, postal, stacked, composite codes, dot codes, and Digimarc watermarks
• Red LED illumination with adjustable brightness
• Blue Dot LED aimer for precision targeting
• Omnidirectional scanning with high motion tolerance (70 IPS)
• Image capture and document scanning (BMP, JPEG, TIFF)
• USB/RS232 via 12-pin connector, 5–14V input
• Multiple trigger modes: auto-sense, software, external, manual
• IP54-rated housing resists dust, water, and disinfectants
• Superior good-read feedback with Green Spot, LED, and adjustable beeper
• Compact dimensions (2.0 × 2.7 × 4.8 cm) and ultra-lightweight (17 g)
• Withstands drops from 1.5 m and 5 G vibration resistance
• Operates in extreme temperatures (-20°C to 60°C)
• 5-year manufacturer warranty

Product Specifications
