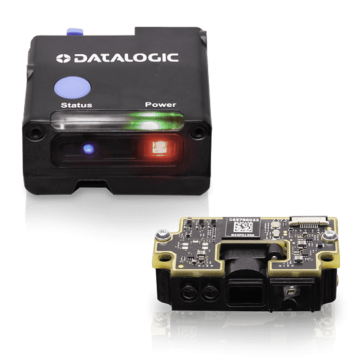

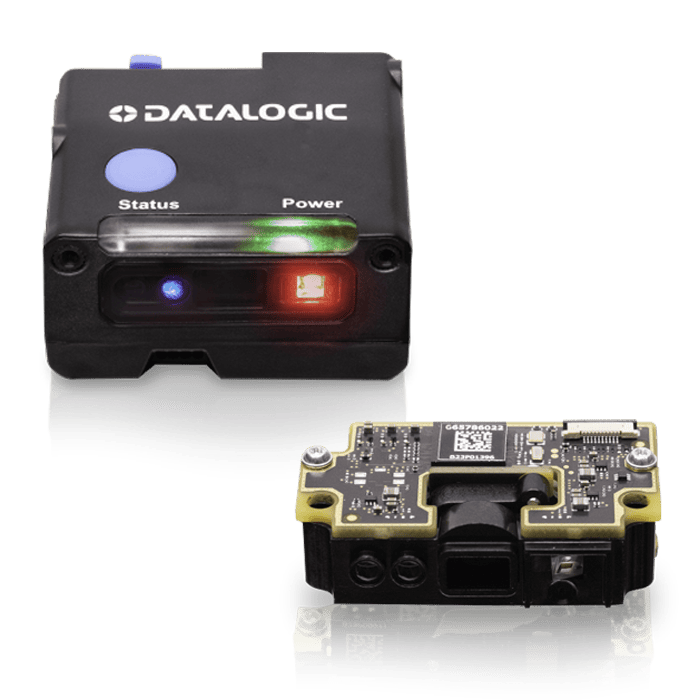

Datalogic Gryphon I GFS4520 2D Megapixel Fixed Mount Barcode Scanner – Red Illumination, 5V, USB (Micro-USB), Compact Black Module

The Datalogic Gryphon I GFS4520 is a compact, fixed-mount 2D barcode scan module designed for value-added integration into kiosks, smart lockers, access control gates, ticketing systems, reverse vending machines, and other OEM applications. Built on the Gryphon 4500 Fixed Series platform, this model features a USB-only micro-USB interface for streamlined connectivity, operating at 5 VDC.

Equipped with a 1-megapixel wide-angle area imager, distinctive red LED illumination with adjustable brightness, and a high-precision Blue Dot aimer, the GFS4520 provides fast omnidirectional decoding of 1D, 2D, postal, stacked, and composite barcodes, plus Digimarc digital watermark recognition. It excels at reading from paper labels and mobile device screens, even under bright ambient light up to 120,000 lux.

The IP54-rated disinfectant-ready housing, UV-protected scratch-resistant output window, and rugged construction ensure durability in demanding environments, withstanding drops, shock, vibration, and extreme temperatures. The module offers multiple trigger options — automatic sensing, software control, external input, or manual — along with superior user feedback via Datalogic’s Green Spot, a high-visibility LED, and adjustable beeper. Backed by a 5-year warranty, the GFS4520 delivers reliability, flexibility, and high-speed scanning for OEM integrators.

Product Features

• Compact fixed-mount 2D scan module for OEM integration
• 1 MP wide-angle area imager for fast, accurate decoding
• Reads all major 1D, 2D, postal, stacked, composite, and dot codes
• Digimarc digital watermark recognition on red illumination model
• Red LED illumination (617 nm) with adjustable brightness
• Blue Dot LED aimer for accurate targeting
• Omnidirectional scanning with high motion tolerance (70 IPS)
• Image capture and document scanning (BMP, JPEG, TIFF)
• USB-only micro-USB connector, 5 VDC input
• Multiple trigger modes: auto-sense, software, external, manual
• IP54-rated disinfectant-ready housing with scratch-resistant window
• Rugged build tolerates 1.5 m drops and 5 G vibration resistance
• Operates from -20°C to 50°C (up to 55°C in certain applications)
• Compact size (2.8 × 4.8 × 5.5 cm) and lightweight (52 g)
• Superior good-read feedback: Green Spot, LED, adjustable beeper
• 5-year manufacturer warranty
