Description

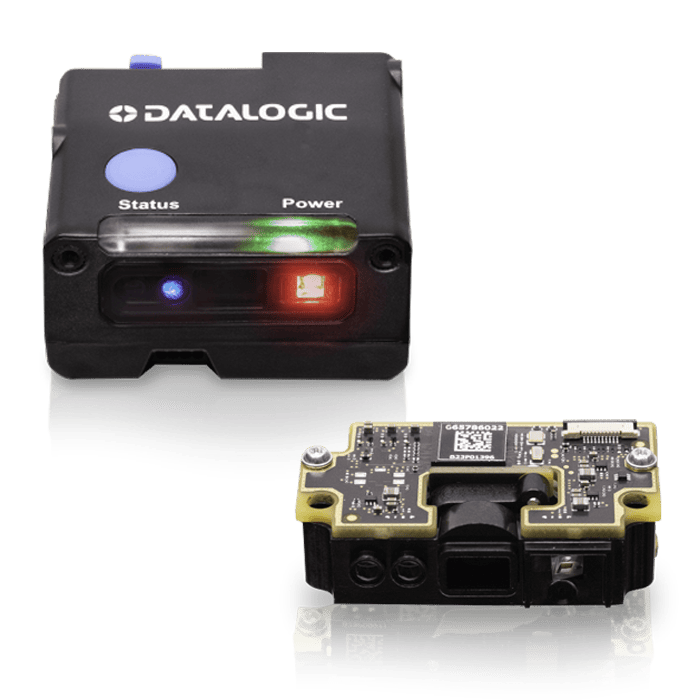

The Datalogic Gryphon I GFS4590 is a high-performance fixed-mount 2D barcode scan module designed for easy OEM integration into kiosks, ticketing systems, access control gates, vending machines, and healthcare devices. Featuring megapixel sensor technology, distinctive red LED illumination, and USB/RS232 connectivity via a 10 cm RJ-50 cable, it delivers fast, omnidirectional scanning with superior motion tolerance.
Its IP54-rated sealed enclosure, UV-protected scratch-resistant output window, and rugged build make it suitable for both indoor and outdoor use. Designed for space-constrained environments, it offers multiple mounting points for flexible installation, supports image capture, and easily reads barcodes from printed materials or mobile screens — even in high ambient light conditions.
Equipped with Datalogic’s ‘Green Spot’ good-read feedback, a high-visibility LED, and an adjustable beeper, the GFS4590 ensures intuitive user interaction. It reads all major 1D, 2D, postal, stacked, and composite codes, including Digimarc digital watermarks. Backed by a 5-year manufacturer warranty, it’s the reliable choice for OEM and automation applications.
Product Features
- Compact, rugged design for OEM integration with multiple mounting options
- Megapixel sensor with wide-angle optics for close-range and long-range scanning
- Reads 1D, 2D, postal, stacked, composite codes, and Digimarc watermarks
- USB/RS232 interface via 10 cm RJ-50 cable (5–14V input)
- Distinctive red LED illumination with adjustable brightness
- Intuitive Blue Dot aimer for accurate targeting
- Omnidirectional scanning with high motion tolerance (70 IPS)
- IP54-rated housing resists dust, water, and harsh disinfectants
- Image capture (BMP, JPEG, TIFF) with grayscale support
- Excellent performance on printed and mobile barcodes
- Withstands 1.5 m drops, shock, and vibration
- 5-year manufacturer warranty
Product Specifications
| Attribute | Details |
| Model | Datalogic Gryphon I GFS4590 |
| Scan Engine | 1 Megapixel (1280 x 800) Area Imager |
| Illumination | Red LED (617 nm) |
| Aimer | Blue LED (470 nm) |
| Connectivity | USB / RS-232 (10 cm cable, RJ-50 connector) |
| Input Voltage | 5 – 14 VDC |
| Scan Angle | 51° Horizontal, 32° Vertical |
| Motion Tolerance | Up to 70 IPS |
| Frame Rate | 60 fps |
| Image Capture | BMP, JPEG, TIFF – Greyscale (256, 16, 2) |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Drop Resistance | 1.5 m |
| Vibration Resistance | 5 G, 22–300 Hz |
| Sealing | IP54 |
| Dimensions | 2.8 x 4.8 x 5.5 cm |
| Weight | 95 g (including cable) |
| Mounting | Multiple sides, flexible OEM integration |
| Warranty | 5-Year Manufacturer Warranty |
Features
- Wireless
- Non-rugged
- Fixed Mount
- 2D
- USB
- Serial/RS232
- Standard Range
- Black
- General purpose
- Entry Level
- IP54
- Logistics/Warehouse
- 5 Years
- New
