Description

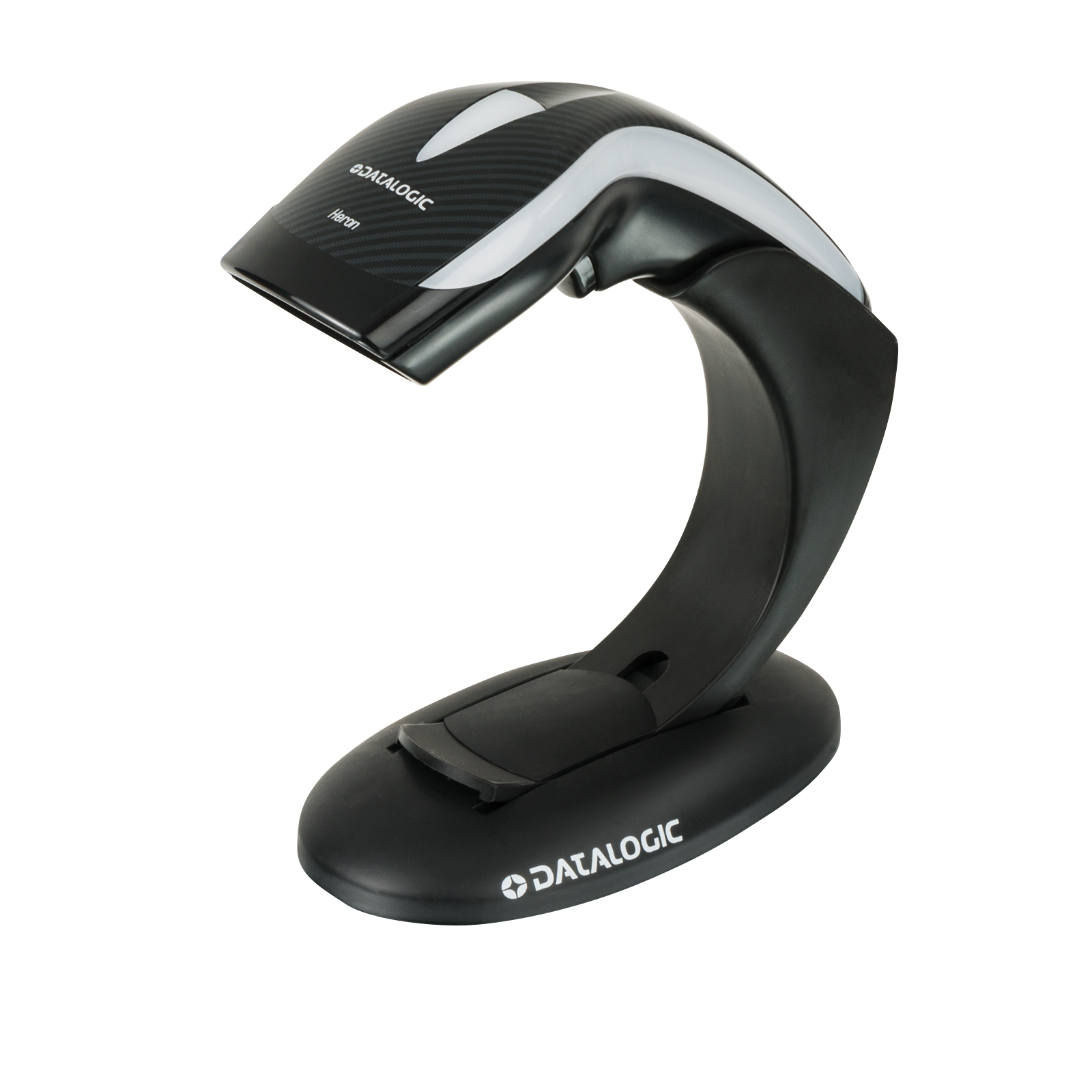

Redefine your retail checkout experience with the Datalogic Heron HD3130, a stylish 1D linear imager that combines high-performance barcode scanning with bold design and customisable features. Ideal for fashion retail, boutique shops, and speciality stores across the UK, the Heron HD3130 delivers fast, reliable 1D scanning in a sleek, modern form.
Complete with a stand and USB cable, this scanner is ready to integrate into your POS setup with plug-and-play simplicity. With its customisable top cap (Carbon-Fibre or Silver designs), changeable illumination colours, polyphonic speaker tones, and patented Green Spot feedback technology, the Heron HD3130 is more than a scanner – it’s a brand statement.
Whether in handheld or hands-free mode, it performs with exceptional speed and style, making it the perfect solution for UK businesses seeking both function and visual impact at point-of-sale.
Product Features
- Stylish Retail Design: Elegant, modern design with in-mould decorated covers in Carbon-Fibre or Silver finish.
- 1D Linear Imager: Reads all standard 1D barcodes including GS1 DataBar and stacked codes.
- USB Kit Included: Includes 1D scanner, black Autosense stand, and USB cable for easy installation.
- Customisable Aesthetics: Offers visual branding with changeable top cap, coloured LED lights, and unique audio feedback.
- Green Spot Technology: Visual confirmation of a successful read directly on the barcode.
- Auto-Sense Stand Mode: Automatically switches between handheld and hands-free use.
- High-Speed Performance: Reads at up to 270 scans per second for fast-paced retail environments.
- Durable Build Quality: IP40 rating, withstands 1.5m drops; ideal for busy checkout areas.
- Versatile Connectivity: USB, RS-232, and Keyboard Wedge interface support.
- 5-Year Warranty: Long-term assurance for UK businesses.
Product Specifications
| Specification | Details |
| Scanner Type | Corded 1D Linear Imager (CCD, 2500 pixels) |
| Supported Codes | All standard 1D barcodes, GS1 DataBar, Stacked, Postal (incl. China Post) |
| Interfaces | USB, RS-232, Keyboard Wedge |
| Read Rate | Up to 270 scans per second |
| Resolution (Min.) | 0.10 mm / 4 mils |
| Depth of Field | 5 mils: 5–15 cm, 10 mils: 2–35 cm, 20 mils: 2–60 cm |
| Print Contrast (Min.) | 15% |
| Ambient Light Tolerance | Up to 100,000 lux |
| Drop Resistance | 1.5m (5 ft) onto concrete |
| Sealing | IP40 |
| Weight | 150g |
| Dimensions | 15.2 x 15.3 x 6.8 cm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 90% (non-condensing) |
| Visual Indicators | Green Spot, Side & Top LEDs |
| Audio Feedback | Beeper (adjustable), Polyphonic speaker |
| Customisation | Logo, top cap design, light colour, sound |
| Warranty | 5 Years (Factory Warranty) |
Features
- rs232
- Wireless
- Non-rugged
- Handheld
- 1D
- USB
- Serial/RS232
- Standard Range
- Black
- General purpose
- Entry Level
- IP40
- Logistics/Warehouse
- 5 Years
- New
