Description

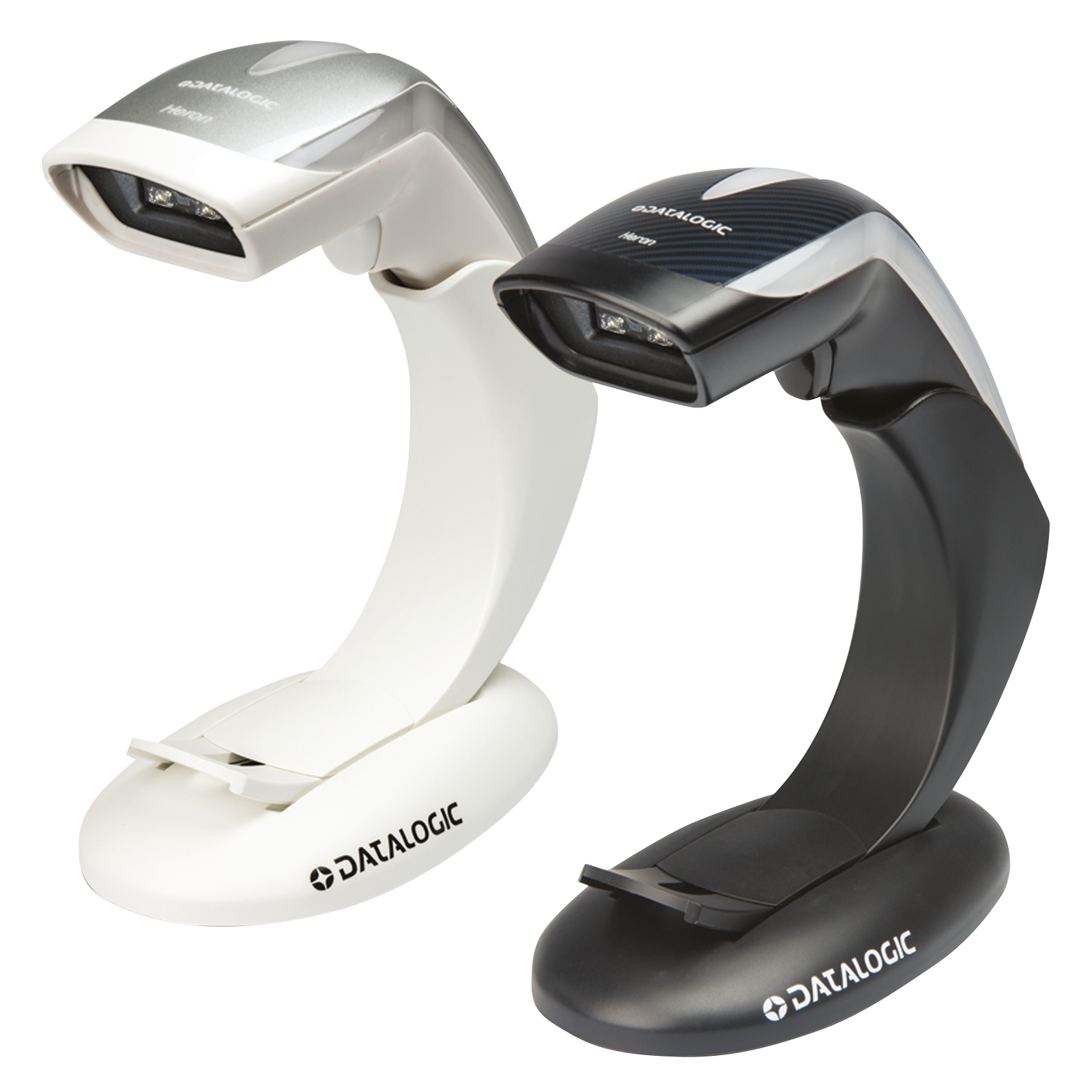

The Datalogic Heron HD3430 USB Kit blends stylish design with advanced 2D imaging performance for a superior point-of-sale experience. Designed for modern retail environments, this corded scanner offers an innovative visual experience with illuminating RGB colours, customizable sounds, and sleek carbon-fibre or silver top covers.
With its advanced area imaging technology, the Heron HD3430 effortlessly reads all standard 1D and 2D barcodes, making it perfect for retail checkouts, fashion outlets, and specialty stores. The scanner seamlessly switches between handheld and hands-free operation via its included Autosense stand, while Datalogic’s patented Green Spot technology ensures clear good-read feedback every time.
Enhance your brand identity at checkout with customizable visuals and polyphonic sound tones—delivering not just performance but also a personalised customer engagement
Product Features
- High-performance scanning of all standard 1D and 2D barcodes
- Customizable lighting (multiple changing colour LEDs) and audio feedback
- Stylish top covers available in Carbon-Fibre or Silver finishes
- Datalogic Green Spot technology for good-read confirmation
- Reads postal, stacked, and composite barcode types
- Image capture capabilities (BMP, JPEG, TIFF)
- Automatic switching between handheld and hands-free modes
- Durable build with 1.5m drop resistance and IP40 sealing
- Supports USB, RS-232, and Keyboard Wedge interfaces
- 5-year factory warranty ensures long-term reliability
Product Specifications
| Specification | Details |
| Scanner Type | 2D Area Imager |
| Supported Barcodes | 1D, 2D (QR, Aztec, Data Matrix), Postal, Composite, PDF417 |
| Interface | USB, RS-232, Keyboard Wedge |
| Image Capture | BMP, JPEG, TIFF (Grayscale: 256, 16, 2) |
| Sensor | Wide VGA: 752 x 480 pixels |
| Print Contrast | Minimum 15% |
| Depth of Field | Up to 40 cm (barcode dependent) |
| Drop Resistance | Withstands 1.5 m (5 ft) drops |
| Ingress Protection | IP40 |
| Light Source | White illumination, 650 nm VLD aiming |
| Motion Tolerance | 25 inches per second |
| Dimensions | 15.2 x 15.3 x 6.8 cm (6.0 x 6.0 x 2.7 in) |
| Weight | 150 g (5.3 oz) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 90% non-condensing |
| Ambient Light | Up to 100,000 lux |
| Warranty | 5-Year Factory Warranty |
Features
- rs232
- USB
- Wireless
- Non-rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Standard Range
- Black
- General purpose
- Entry Level
- IP40
- Logistics/Warehouse
- 5 Years
- New
