Description

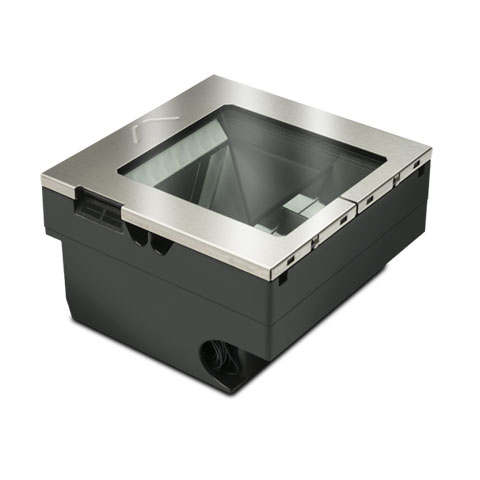

The Datalogic Magellan 3510HSi Enhanced (MGL35,ENH,LLT,FACT,1D/2D,ST,N,N,EU,N/RS) is a premium in-counter barcode scanner engineered to deliver best-in-class performance in high-volume retail environments. Equipped with RS-232 connectivity, this EU-version scanner supports seamless integration with legacy and custom POS systems.
Designed to read all standard 1D and 2D barcodes—including Digimarc® watermarks—the Magellan 3510HSi provides exceptional speed, accuracy, and reliability. Its wide-angle imaging window, subtle LED illumination, and solid-state electronics allow for smooth scanning of printed and mobile barcodes in even the busiest checkout lanes. Optional EAS support and remote management capabilities enhance its utility in enterprise applications.
Product Features
- High-speed in-counter scanner ideal for EU retail environments
- Supports all major 1D and 2D barcode symbologies
- Optional Digimarc® barcode decoding
- Subtle adaptive LED illumination enhances comfort
- Consistent scanning of printed or digital barcodes
- Powered by USB 5V or optional 12V input for auxiliary devices
- Integrated micro SD card slot for updates and configuration
- RS-232 connectivity ensures reliable integration in legacy systems
- Optional Checkpoint and Sensormatic EAS compatibility
- Diagnostic and remote management tools included
- Backed by Datalogic’s 3-Year factory warranty
Product Specifications
Feature | Specification |
Model | Magellan 3510HSi Enhanced (EU RS-232) |
Mount Type | In-counter |
Power Input | DC 5–12V, AC 100–240V, 50–60 Hz |
Power Consumption | Max: 3.3W @ 12V; Typical: 2.1W; Sleep Mode: 1.25W |
Image Sensor | 1 MP (1280 x 800 pixels) |
Image Capture | JPEG, BMP |
Light Source | Multiple diffused LEDs, optimised for eye comfort |
Print Contrast | Minimum 25% |
Read Height | 10.2 cm |
Scan Rate | Up to 30 million pixels per second |
Scan Angles | Pitch: ±65°; Roll: 360°; Skew: ±75° |
Indicators | Audio beeper, Good Read LED, Good Transmission |
Ingress Protection | IP52 |
Ambient Light | Up to 86,100 lux |
Operating Temp | 10°C to 40°C |
Storage Temp | -40°C to 70°C |
Humidity | 5% to 95% (non-condensing) |
ESD Protection | 25 kV air discharge |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Software Tools | Magellan Scanalyzer, JavaPOS, OPOS |
Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- Serial/RS232
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
