Description

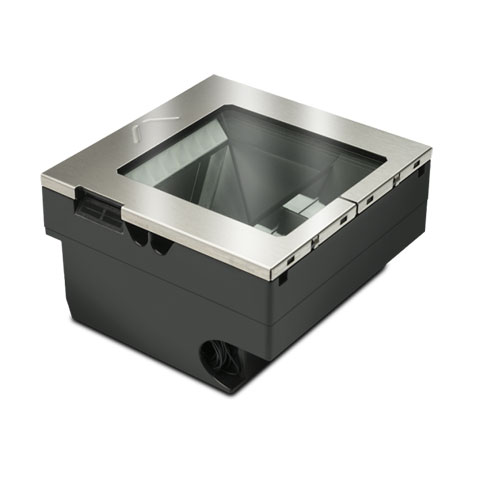

The Datalogic Magellan 3510HSi Enhanced (M35,ENH,LLT,FACT,1D/2D,STD,N,N,UK,USB/K) is a powerful in-counter barcode scanner built for demanding retail environments. Offering seamless scanning of 1D, 2D, and optional Digimarc® barcodes, this scanner delivers speed, flexibility, and intuitive performance through its large imaging window and adaptive illumination system.
With a 5V USB-powered connection and support for USB Keyboard interface, the 3510HSi Enhanced model simplifies POS system integration. Ideal for use in high-traffic point-of-sale areas, the scanner is engineered with solid-state electronics for silent and durable performance. Optional EAS compatibility, multiple interface support, and remote management tools further enhance its enterprise-readiness.
Product Features
- Enhanced model with expanded barcode scanning performance
- Advanced imaging reads all major 1D/2D symbologies including QR, Data Matrix, PDF417
- Supports Digimarc® digital watermark barcodes
- Adaptive, eye-friendly LED illumination for comfortable use
- Reads printed and mobile barcodes with equal efficiency
- Single 5V USB port powers the entire unit (no external power needed)
- Quiet, solid-state design – no moving parts
- Includes image capture capability (BMP, JPEG)
- Micro SD card slot for software updates and configuration
- Multi-interface support including USB Keyboard and RS-232
- Compatible with Checkpoint & Sensormatic EAS systems
- Magellan Scanalyzer software and JavaPOS/OPOS utilities available
- Backed by a 3-Year Datalogic warranty
Product Specifications
Feature | Specification |
Model | Magellan 3510HSi Enhanced (USB/K) |
Mount Type | In-counter |
Power Source | USB 5V via Type A |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep Mode: 0.95W |
Image Sensor | 1 MP (1280 x 800 pixels) |
Image Capture | JPEG, BMP |
Light Source | Multiple diffused LEDs with optimized wavelength |
Print Contrast | Minimum 25% |
Read Height | 10.2 cm |
Scan Rate | Up to 30 million pixels per second |
Scan Angles | Pitch: ±65°; Roll: 360°; Skew: ±75° |
Indicators | Audio beeper, Good Read LED, Good Transmission |
Ingress Protection | IP52 |
Ambient Light | Up to 86,100 lux |
Temperature Range | Operating: 10°C to 40°C; Storage: -40°C to 70°C |
Humidity | 5% to 95% (non-condensing) |
ESD Protection | 25 kV air discharge |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Software Tools | Magellan Scanalyzer, JavaPOS, OPOS |
Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
