Description

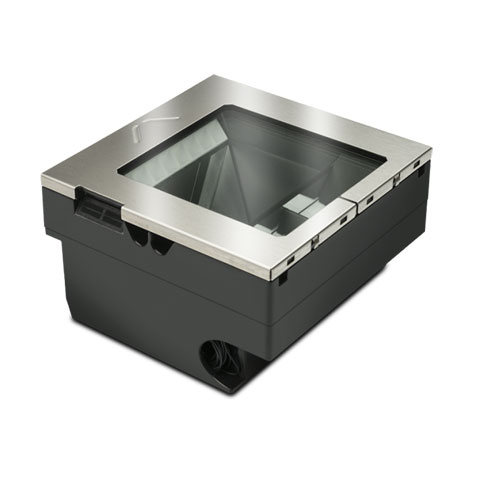

The Datalogic Magellan 3510HSi High-Spec (M3510) is a next-generation in-counter barcode scanner designed to handle high-volume retail environments with speed, efficiency, and precision. With support for 1D, 2D, and Digimarc® barcodes, this advanced imager delivers seamless scanning from both printed surfaces and mobile device screens.
Powered directly via a single 5V USB Type A connection, it simplifies installation and maintenance while ensuring quiet, reliable performance through its solid-state construction. The scanner also features multiple interface options, integrated image capture, adaptive LED illumination, and is EAS compatible with Checkpoint and Sensormatic systems.
Product Features
- High-performance in-counter scanner with broad 1D/2D/Digimarc® barcode support
- Seamless barcode capture from paper or mobile screens
- 1 MP image sensor for fast, high-resolution scanning
- Adaptive, eye-safe LED illumination for comfortable usage
- USB-powered design (2.5W) – no external adapter required
- Silent, durable solid-state electronics
- Micro SD card slot for fast software updates
- Multiple host interface options in a single unit
- Optional CSS (Customer Service Scanner) for coupon and mobile commerce scanning
- EAS integration for both Checkpoint and Sensormatic systems
- Remote device management via OPOS, JavaPOS, IBM Director®, Wavelink® Avalanche®
- Backed by a 3-year warranty from Datalogic
Product Specifications
Feature | Specification |
Mount Type | In-counter |
Power Source | USB 5V |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep: 0.95W |
Image Sensor | 1 MP (1280 x 800 pixels) |
Image Capture | BMP, JPEG |
Illumination | Multi-LED, eye-safe diffused light |
Print Contrast | ≥25% |
Scan Height | Up to 10.2 cm |
Scan Rate | 30 million pixels/second |
Scan Angles | Pitch: ±65°; Roll: 360°; Skew: ±75° |
Indicators | Adjustable beeper, Good Read LED, Good Transmission |
IP Rating | IP52 (resistant to dust and dripping water) |
Ambient Light Tolerance | Up to 86,100 lux |
Temperature Range | Operating: 10°C to 40°C; Storage: -40°C to 70°C |
Humidity | 5–95% non-condensing |
ESD Protection | 25 kV air discharge |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Software Utilities | Magellan Scanalyzer, JavaPOS, OPOS |
Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
