Description

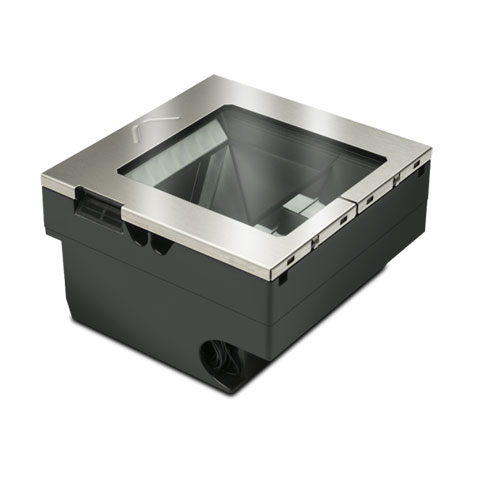

The Datalogic Magellan™ 3510HSi is a cutting-edge in-counter barcode scanner built for high-volume retail environments. This TIN/OX configuration is supplied without an interface cable, offering flexibility for users who already have cabling infrastructure in place or require a custom setup.
Designed for seamless integration at point-of-sale terminals, this model delivers top-tier performance in reading both 1D and 2D barcodes, including support for optional Digimarc® digital watermarking. With its high-speed imaging sensor, adaptive LED lighting, and rugged construction, the 3510HSi guarantees enhanced scanning accuracy, customer satisfaction, and operational efficiency.
Product Features
- TIN/OX variant: scanner unit only, without interface cable
- Reads 1D, 2D, and optional Digimarc® barcodes
- Image capture capability with Micro SD slot for diagnostics
- Silent solid-state construction for noise-sensitive environments
- Adaptive LED illumination for operator comfort
- Easy sweep or presentation scanning
- Ideal for mobile coupons and loyalty programs
- Remote management tools and JavaPOS/OPOS compatibility
- Supports multiple interfaces via user-supplied connection
- Backed by a 3-Year Factory Warranty
Product Specifications
Specification | Details |
Auxiliary Port | USB Type A (powered with 12V supply only) |
Image Sensor | 1 MP (1280 x 800 pixels); JPEG, BMP formats |
Scan Rate | 30 million pixels per second |
Resolution | Up to 5 mil |
Print Contrast | Minimum 25% |
Light Source | Eye-safe, diffused LED array |
Power Requirements | DC: 5–12V / AC: 100–240V, 50–60 Hz |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W @ 5V |
Environmental Sealing | IP52 |
Ambient Light Tolerance | 0 – 86,100 lux |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5% – 95% non-condensing |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg / 2.16 lb |
Mount Compatibility | Standard Counter Mount (11-0027, 11-0178) |
Software Tools | Scanalyzer, OPOS, JavaPOS, Wavelink® Avalanche® |
Compliance | EU RoHS, China RoHS, EN62471 (Exempt Group) |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
