Description

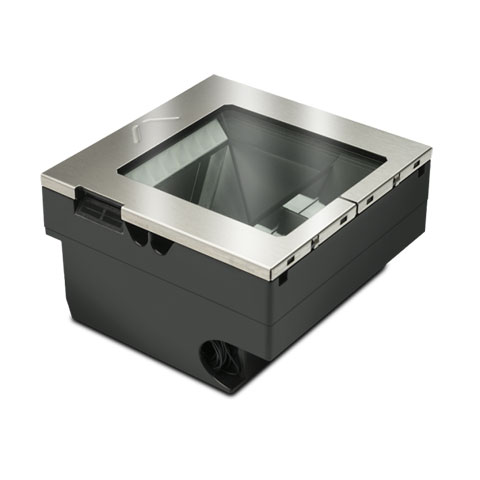

The Datalogic Magellan™ 3510HSi is a premium in-counter imaging barcode scanner purpose-built for high-volume retail checkouts. Engineered for performance, this model supports 1D, 2D, and Digimarc® barcode decoding, offering exceptional reliability for printed or mobile-based barcode scanning. This EU variant is equipped with a USB Keyboard (USB-KBD) interface, allowing plug-and-play operation with most modern POS terminals without the need for drivers or additional software.
Its solid-state design ensures silent operation, while adaptive LED illumination enhances operator comfort. Backed by advanced imaging technology, the 3510HSi seamlessly integrates into existing installations, improving checkout speed and customer satisfaction.
Product Features
- USB Keyboard (USB-KBD) interface for quick POS integration
- Reads all standard 1D/2D symbologies and optional Digimarc® barcodes
- Adaptive illumination optimised for barcode readability and user comfort
- Ideal for sweep and presentation scanning at checkout counters
- Captures barcodes from printed labels or mobile phone screens
- Image capture support (BMP/JPEG) with Micro SD card diagnostics
- Multiple interfaces and powered USB-A auxiliary port (12V required)
- Optional EAS compatibility with Checkpoint and Sensormatic systems
- Magellan Scanalyzer™ utility and OPOS/JavaPOS remote management support
- 3-Year Factory Warranty
Product Specifications
Specification | Details |
Interface | USB Keyboard (USB-KBD) |
Image Sensor | 1 MP (1280 x 800 pixels), JPEG/BMP output |
Scan Rate | 30 million pixels per second |
Resolution | Up to 5 mil |
Print Contrast | Minimum 25% |
Light Source | Diffused LEDs, optimised for eye comfort |
Power Requirements | DC: 5–12V / AC: 100–240V, 50–60 Hz |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W @ 5V |
Environmental Sealing | IP52 |
Ambient Light Tolerance | 0 – 86,100 lux |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5% – 95% non-condensing |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg / 2.16 lb |
Mount Compatibility | Standard Magellan Counter Mount (11-0027, 11-0178) |
Software Tools | Magellan Scanalyzer, OPOS, JavaPOS |
Compliance | EU RoHS, China RoHS, EN62471 (Exempt Group) |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
