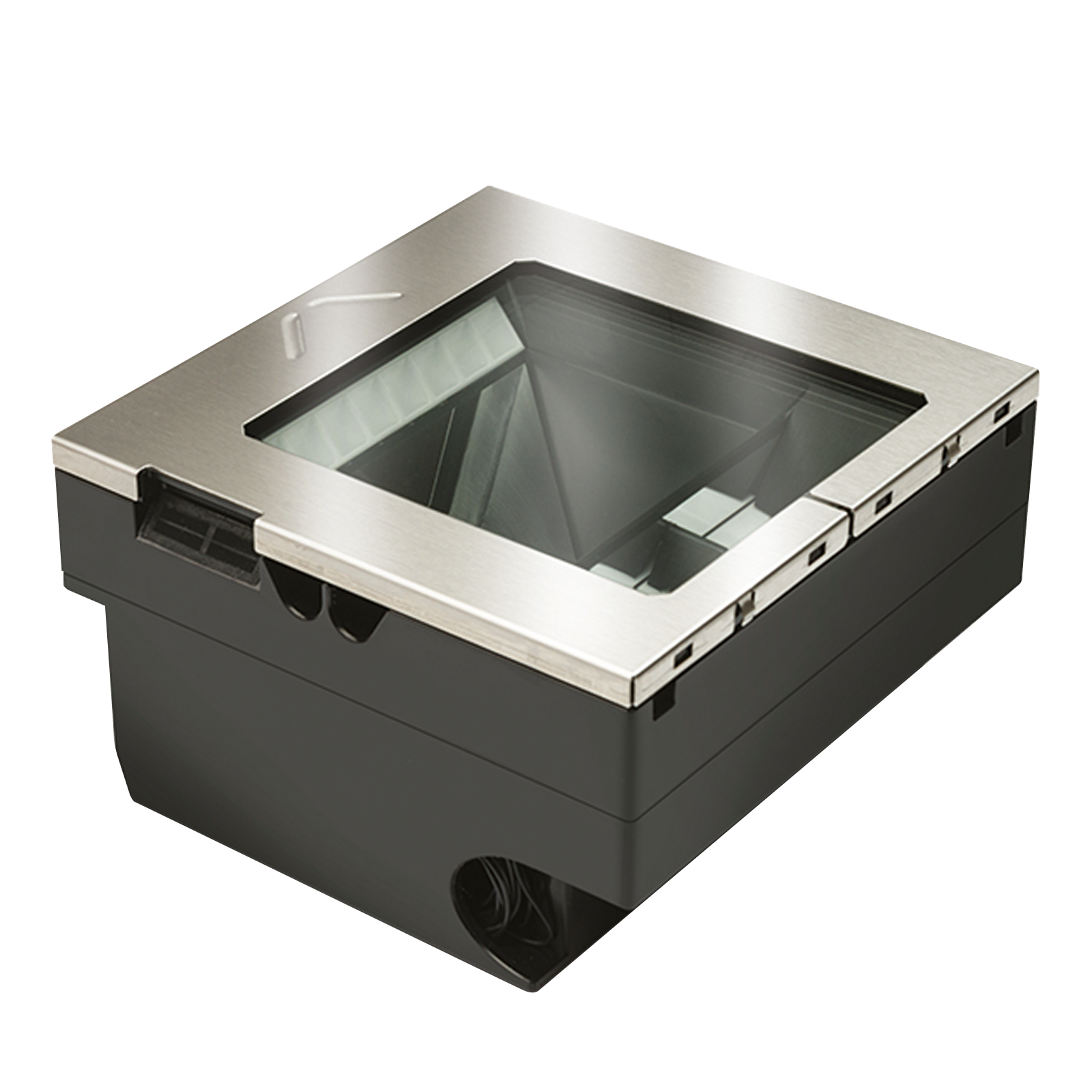

Datalogic Magellan 3510HSi In-Counter Barcode Scanner – 1D/2D, Digimarc, USB/RS232, Factory Configuration

Wired, Non-rugged, Datalogic, Presentation, 2D, USB, Midrange, Grey, General purpose, Mid Level, IP52, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
M3551-010200

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic Magellan™ 3510HSi In-Counter Barcode Scanner offers best-in-class imaging performance in a sleek, factory-configured design with no regional restriction. Equipped to decode 1D, 2D, and Digimarc® barcodes, this scanner supports a wide range of retail applications including POS, age verification, loyalty programs, and mobile marketing.

With powerful solid-state architecture, a high-resolution 1 MP sensor, and adaptive LED illumination, the Magellan 3510HSi is built for durability, efficiency, and ease of integration. It connects seamlessly to any POS system via USB or RS-232, ensuring maximum flexibility and high-speed checkout performance. Backed by a 3-year warranty and full remote management capabilities, it's the ideal solution for busy retail environments.

Product Features

  • Factory-configured in-counter barcode scanner with universal compatibility
  • Reads 1D, 2D, and Digimarc® barcodes from screens or paper
  • High-speed scanning with 30 million pixels/second read rate
  • USB and RS-232 interfaces included in every unit
  • Advanced adaptive LED illumination for comfortable use
  • Compact, durable, and IP52-rated housing
  • Seamless integration with Magellan accessories and existing POS systems
  • Multiple mounting options available (sold separately)
  • Remote management and diagnostic tools included
  • 3-Year Factory Warranty


Product Specifications

Feature

Specification

Mount Type

In-counter

Image Sensor

1 MP CMOS, 1280 × 800 resolution

Light Source

Multiple diffused LEDs, eye-comfort optimised

Scan Rate

30 million pixels per second

Scan Height

10.2 cm (4.0 in)

Minimum Print Contrast

25%

Resolution

5 mil

Scan Angles

Pitch: ±65°; Skew: ±75°; Roll: 360°

Sealing

IP52

Ambient Light Tolerance

0–86,100 lux

Operating Temperature

10°C to 40°C

Storage Temperature

-40°C to 70°C

Humidity

5–95% RH, non-condensing

Dimensions

15.2 × 15.2 × 8.7 cm (L×W×D)

Weight

0.98 kg (2.16 lbs)

Certifications

EU & China RoHS, EN62471 Exempt Group

Configuration Software

Magellan Scanalyzer, OPOS, JavaPOS

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
IP Rating:
  • IP52
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3972-datasheet.pdf, 179 Kb) [Download]
