Description

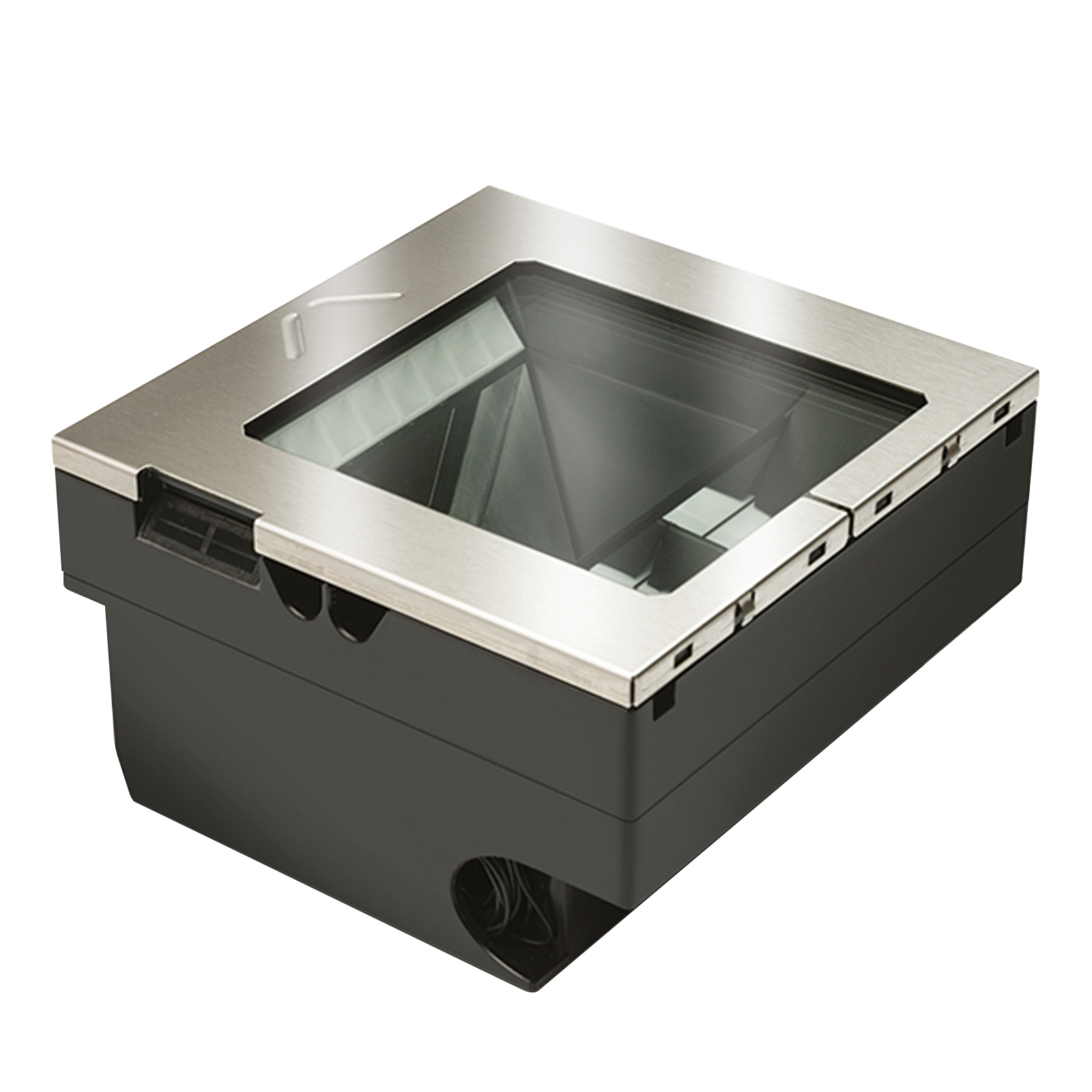

The Datalogic Magellan 3510HSi is a compact, high-performance in-counter barcode scanner, purpose-built for retail environments demanding speed, accuracy, and advanced decoding capabilities. This factory-configured model is equipped to read all major 1D and 2D barcodes, including those on mobile screens, making it ideal for checkout counters, loyalty programs, and digital coupon processing.
This model offers Digimarc® support and is powered by a single USB Type A connection for simplified installation and integration. Designed for EU markets, it ensures full compliance with regional regulations and POS system standards. Durable, efficient, and software-upgradeable, the Magellan 3510HSi delivers consistent performance for high-volume retail use.
Product Features
- Factory configuration with 1D/2D barcode reading capability
- Digimarc® digital watermark decoding support
- USB Type A host connection – powered directly, no external adapter required
- Reads codes from mobile devices, loyalty cards, and paper labels
- Eye-safe, adaptive LED lighting for user comfort
- Quiet, solid-state design – no moving parts, high reliability
- Integrated diagnostics and reporting tools
- EAS-compatible with Checkpoint and Tyco Sensormatic systems
- Supports multiple interfaces (OEM USB, USB Keyboard, RS-232, USB Com)
- Easy integration with popular POS systems
- Backed by a comprehensive 3-Year Factory Warranty
Product Specifications
Feature | Specification |
Mount Type | In-counter (mount kits sold separately) |
Power Input | 5–12V DC input (USB powered) |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep: 0.95W |
Image Sensor | 1 MP (1280 × 800 pixels) |
Image Capture | JPEG, BMP formats |
Light Source | Multiple diffused LEDs |
Minimum Print Contrast | 25% |
Read Height | 10.2 cm (4.0 in) |
Read Rate | 30 million pixels per second |
Scan Angles | Pitch: ±65°; Skew: ±75°; Roll: 360° |
Indicators | Audio beeper, Good Read LED, Transmission indicator |
IP Rating | IP52 |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5–95% non-condensing |
Ambient Light Tolerance | 0 to 86,100 lux |
Dimensions (L×W×D) | 15.2 × 15.2 × 8.7 cm |
Weight | 0.98 kg |
Certifications | EU RoHS, China RoHS, EN62471 (Exempt Group) |
Software Tools | Magellan Scanalyzer, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
