Description

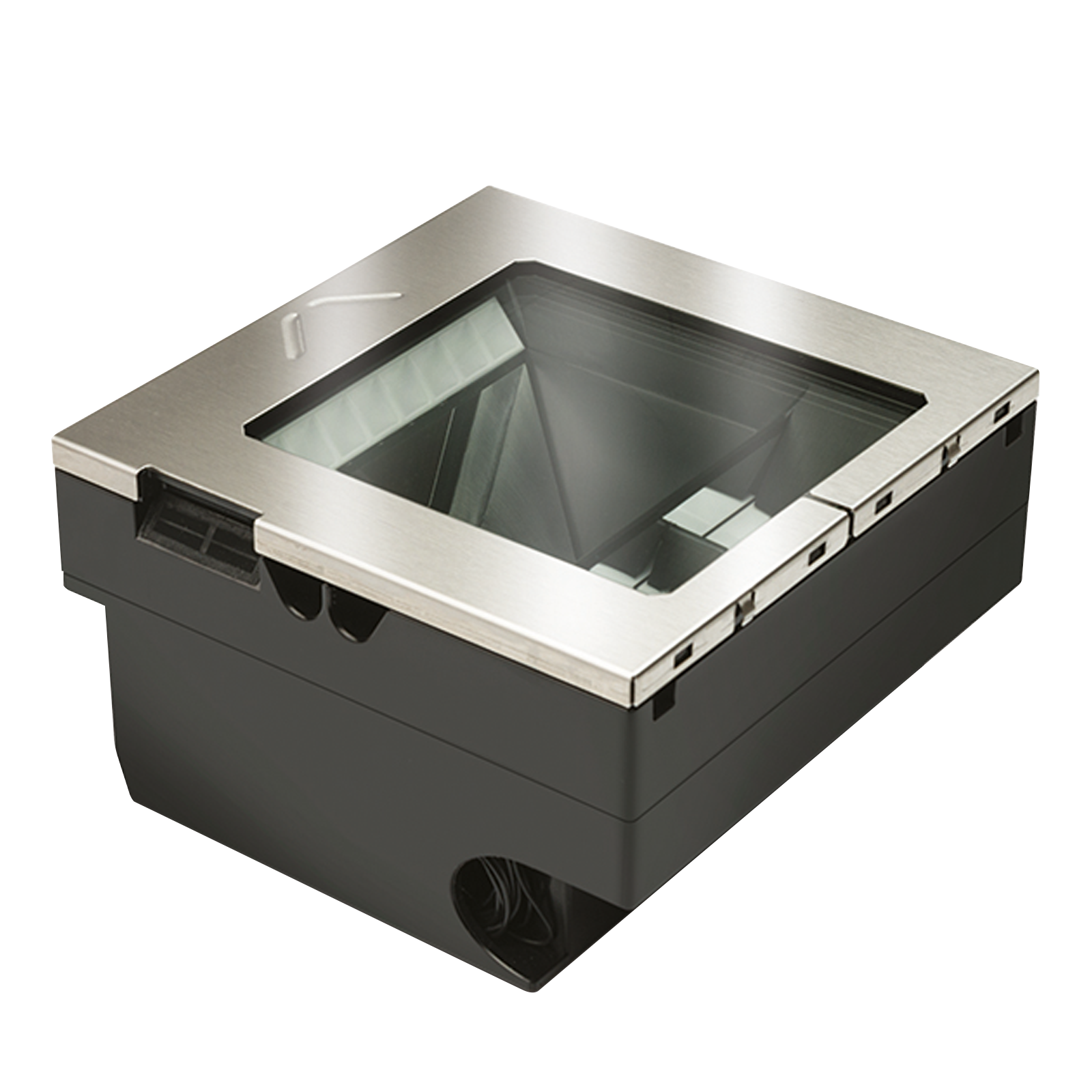

The Datalogic Magellan 3510HSi delivers best-in-class scanning performance for modern retail checkout counters. Designed with an advanced digital imaging engine and Digimarc® digital watermark decoding, this in-counter barcode scanner handles 1D and 2D barcodes with exceptional speed and accuracy—even when printed poorly or displayed on smartphone screens.
Its factory standard build ensures reliability and easy integration, especially with support for OEM USB interface. The scanner is powered via a single 5V USB connection, reducing cabling complexity at the point-of-sale. Ideal for supermarkets, convenience stores, and high-volume retailers seeking a quiet, low-maintenance, and future-proof scanning solution.
Product Features
- High-speed scanning of 1D, 2D, and Digimarc® barcodes
- Factory standard configuration for easy POS integration
- Enhanced field-of-view enables presentation and sweep scanning
- Subtle LED lighting optimised for eye comfort during scanning
- Silent operation with solid-state electronics – no moving parts
- Micro SD card slot for simplified updates and configuration
- Multiple interfaces in a single device – including USB, RS-232, and USB Keyboard
- Compatible with Checkpoint and Tyco Sensormatic EAS systems
- Powered from a single 5V USB port – no external power supply needed
- 3-year factory warranty
Product Specifications
Feature | Specification |
Mount Type | In-counter (no mount included) |
Power Input | DC 5–12V; USB powered |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep Mode: 0.95W |
Image Sensor | 1 MP CMOS (1280 × 800 pixels) |
Light Source | Multiple diffused LEDs for user comfort |
Read Height | Up to 10.2 cm (4.0 in) |
Read Rate | 30 million pixels per second |
Print Contrast | Minimum 25% |
Scan Angles | Pitch: ±65°; Skew: ±75°; Roll: 360° |
Indicators | Audio beeper, Good Read LED, Good Transmission |
Sealing | IP52 |
Ambient Light Tolerance | 0 to 86,100 lux |
Operating Temp. | 10°C to 40°C |
Storage Temp. | -40°C to 70°C |
Humidity | 5–95% RH, non-condensing |
Dimensions (L×W×D) | 15.2 × 15.2 × 8.7 cm |
Weight | 0.98 kg |
Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
Software Tools | Scanalyzer, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
