Description

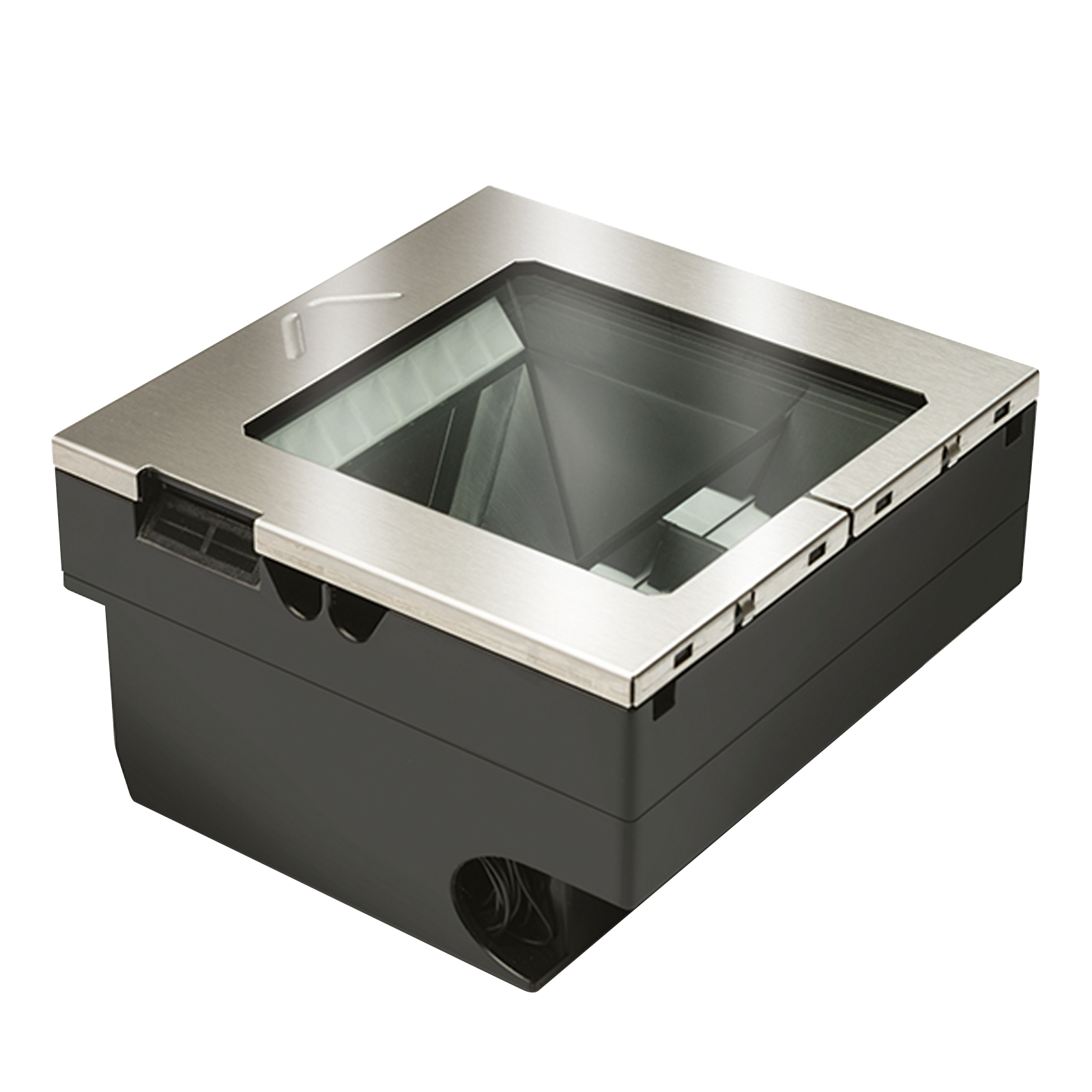

The Datalogic Magellan 3510HSi is a powerful in-counter barcode scanner designed for modern retail environments that demand speed, reliability, and space-saving integration. With advanced digital imaging and Digimarc® digital watermark decoding, it delivers seamless reading performance for both printed and digital barcodes.
Engineered with a standard configuration and OEM USB interface, this model offers effortless integration with existing POS systems. Its compact, in-counter design is ideal for high-volume checkout counters where performance and efficiency are key. Perfect for retailers who value consistent performance without the need for bundled accessories.
Product Features
- Advanced digital imaging technology for high-speed scanning
- Reads 1D, 2D, and Digimarc® barcodes from paper or mobile screens
- Standard factory build for flexible deployment
- Operates via a single 5V USB connection – no separate power supply needed
- Quiet, solid-state design with no moving parts
- Adaptive lighting ensures comfortable use during prolonged operation
- Image capture and diagnostics reporting via micro SD slot
- Compatible with major POS systems and remote management tools
- Multiple interface support (USB, RS-232, USB Keyboard, USB TEC)
- EAS compatible with Checkpoint and Tyco Sensormatic systems
- Backed by a 3-year factory warranty
Product Specifications
Feature | Specification |
Model | Magellan 3510HSi (M35,ENH,N,STD,DIGI,N,NO ACC) |
Mount Type | In-counter (mounts sold separately) |
Power Input | DC 5–12V (USB powered) |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep Mode: 0.95W |
Image Sensor | 1 MP (1280 × 800 pixels) |
Image Capture | JPEG, BMP formats |
Light Source | Multi-wavelength diffused LEDs for user comfort |
Read Height | Up to 10.2 cm |
Read Rate | 30 million pixels per second |
Minimum Print Contrast | 25% |
Scan Angles | Pitch: ±65°; Skew: ±75°; Roll: 360° |
IP Rating | IP52 |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5–95% non-condensing |
Ambient Light Tolerance | 0 to 86,100 lux |
Dimensions (L×W×D) | 15.2 × 15.2 × 8.7 cm |
Weight | 0.98 kg |
Certifications | EU RoHS, China RoHS, EN62471 (Exempt Group) |
Software Tools | Magellan Scanalyzer, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Handheld
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
