Description

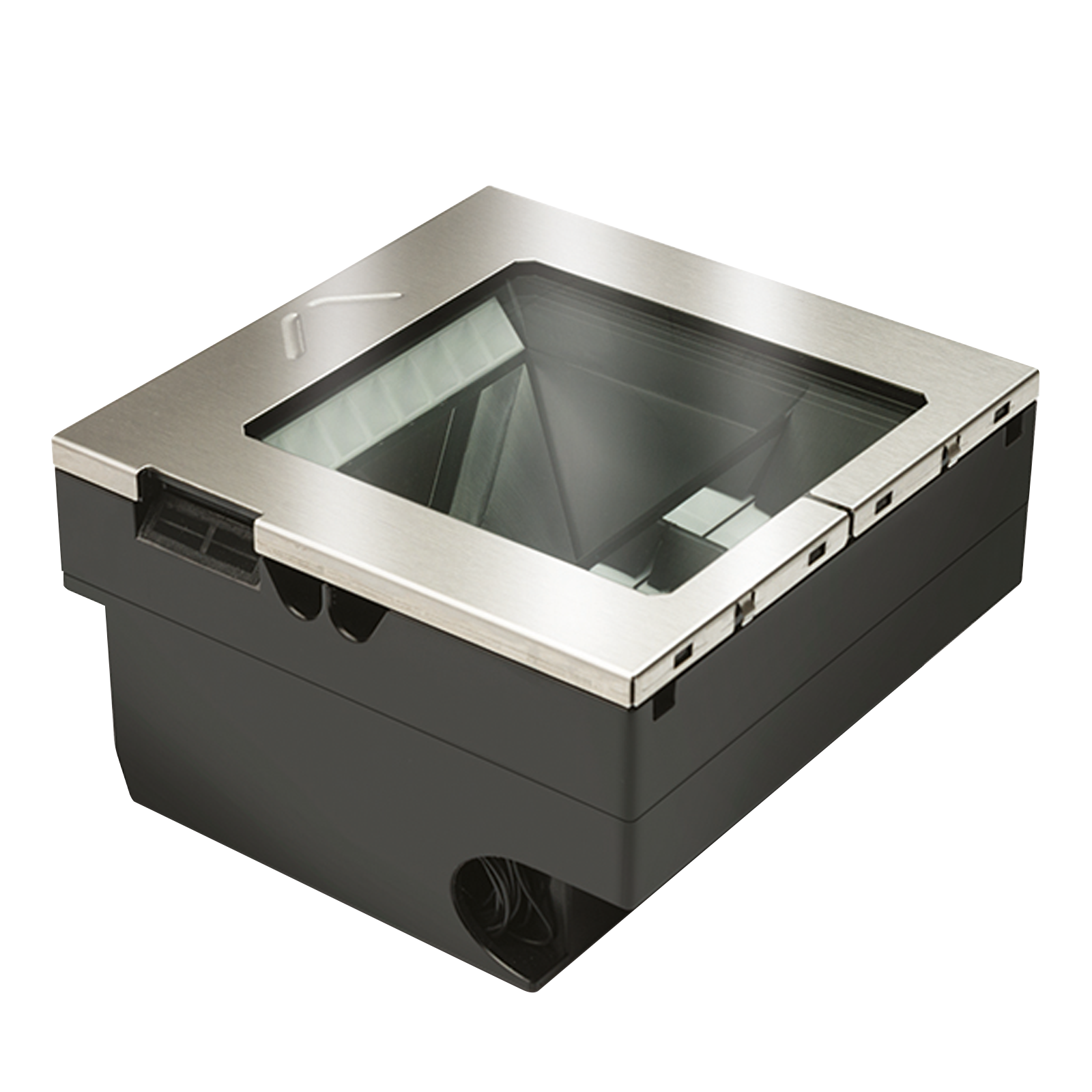

Designed for demanding retail environments, the Datalogic Magellan 3510HSi in-counter barcode scanner delivers premium performance with next-generation imaging technology. Featuring Digimarc® digital watermark reading and advanced 1D/2D decoding, it is ideal for high-throughput point-of-sale systems.
This variant comes with a standard counter mount and no accessories, providing a flexible integration-ready solution. Its high-resolution imaging, subtle illumination, and quiet, solid-state design ensure superior reliability, even with low-contrast or damaged barcodes. Powered through a single 5V USB port, it offers seamless integration into modern POS systems with minimal power consumption.
Product Features
- Factory-standard configuration with Digimarc® digital watermark decoding
- Compatible with all standard 1D, 2D, and stacked barcode symbologies
- Standard counter mount design for streamlined integration
- 1 MP high-resolution imaging sensor ensures accurate, fast scanning
- Adaptive LED lighting enhances user comfort and visibility
- Solid-state electronics offer silent, low-maintenance operation
- Micro SD slot for configuration and upgrades
- Multiple onboard interfaces including USB, RS-232, and USB Keyboard
- Checkpoint Systems and Tyco Sensormatic EAS compatible
- Diagnostics reporting and advanced configuration via Scanalyzer software
- Covered by a 3-Year Factory Warranty
Product Specifications
Feature | Specification |
Mount Type | Standard Counter Mount |
Power Input | DC 5–12V; USB powered |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep Mode: 0.95W |
Image Sensor | 1 MP CMOS (1280 × 800 pixels) |
Light Source | Multiple diffused LEDs for eye-comfort |
Read Height | Up to 10.2 cm (4.0 in) |
Read Rate | 30 million pixels per second |
Print Contrast | Minimum 25% |
Scan Angles | Pitch: ±65°; Skew: ±75°; Roll: 360° |
Indicators | Audio Beeper, Good Read LED, Good Transmission |
Sealing | IP52 |
Ambient Light Tolerance | 0 to 86,100 lux |
Operating Temp. | 10°C to 40°C |
Storage Temp. | -40°C to 70°C |
Humidity | 5–95% RH, non-condensing |
Dimensions | 15.2 × 15.2 × 8.7 cm (L×W×D) |
Weight | 0.98 kg |
Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
Software Tools | Scanalyzer, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
