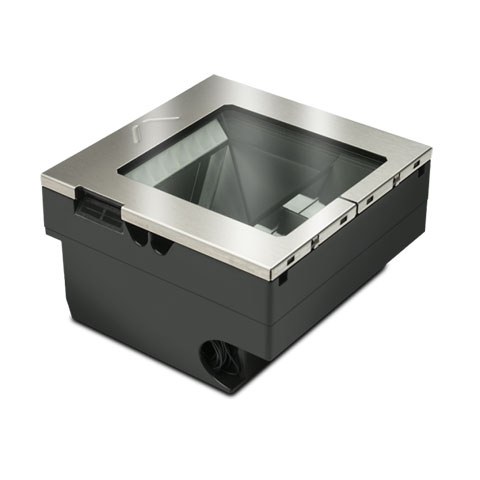

Datalogic Magellan 3510HSi In-Counter Barcode Scanner – Enhanced, Standard, USB-Powered

Wired, Non-rugged, Datalogic, Presentation, 2D, USB, Midrange, Grey, General purpose, Mid Level, IP52, Retail, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
M3551-010310

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic Magellan™ 3510HSi is a powerful in-counter imaging barcode scanner built for high-throughput retail environments. Delivering fast and accurate reading of 1D, 2D, and Digimarc® barcodes, this compact scanner enhances efficiency at the point of sale. Its wide field-of-view, advanced digital imaging, and adaptive lighting allow seamless capture of printed or digital barcodes—even those that are truncated or poorly printed.

Powered via a single 5V USB Type A port, the Magellan 3510HSi is engineered for easy integration with existing POS systems. With no mounting or interface accessories bundled, this model is ideal for businesses with established in-counter installations seeking a simple, OEM-ready upgrade.

Product Features

  • In-counter 1D/2D scanner with wide-area digital imaging
  • Supports Digimarc® digital watermark barcode technology
  • Compact design with USB power – no separate power adapter needed
  • Effortlessly scans barcodes from mobile phones and paper labels
  • Silent, solid-state operation for reliable performance
  • Adaptive LED lighting optimised for operator comfort
  • Optional integration with Checkpoint and Sensormatic EAS systems
  • Flexible software configuration via micro SD card
  • Diagnostic reporting and remote management capabilities
  • 3-Year factory warranty with optional service plans


Product Specifications

Specification

Details

Image Sensor

1 MP (1280 x 800 px); formats: JPEG, BMP

Scan Rate

30 million pixels per second

Max Resolution

5 mil

Print Contrast

Minimum 25%

Power Input

5–12V DC / 100–240V AC (50–60 Hz)

Power Consumption

Max: 2.25W @ 5V, Typical: 1.6W, Sleep: 0.95W

Environmental Sealing

IP52

Ambient Light Resistance

0 – 86,100 lux

Temperature Range

Operating: 10°C to 40°C; Storage: -40°C to 70°C

Humidity Range

5 – 95% RH (non-condensing)

Dimensions (L x W x D)

15.2 x 15.2 x 8.7 cm

Weight

0.98 kg / 2.16 lb

Mounting Options

Mounts available separately

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
IP Rating:
  • IP52
Industry/Vertical:
  • Retail
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3972-datasheet.pdf, 179 Kb) [Download]
