Description

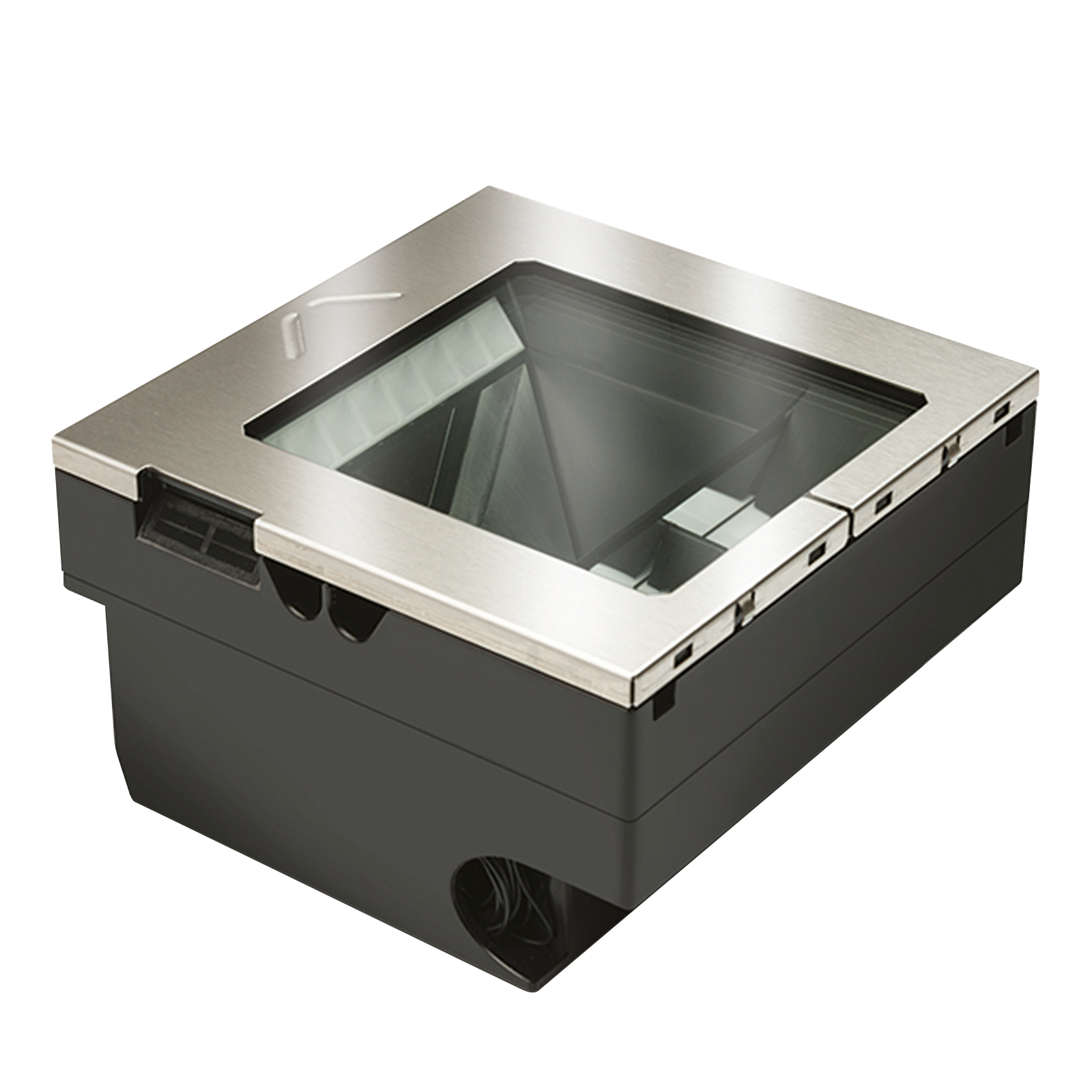

The Datalogic Magellan 3510HSi in-counter barcode scanner with RS-232 and Scale (Weighing) Interface offers premium scanning performance for high-volume retail and grocery environments. With EU certification and robust compatibility with integrated weighing systems, this model is ideal for applications requiring both barcode scanning and scale functionality.
Powered via a 5V USB connection, the 3510HSi simplifies installation while maintaining exceptional scan performance on all 1D and 2D barcodes—including Digimarc® digital watermarks. Designed for seamless integration with POS counters, the scanner enhances workflow efficiency, accuracy, and customer satisfaction.
Product Features
- In-counter high-performance barcode scanner for checkout lanes
- EU-certified model with RS-232/Weighing (WN) interface
- Supports 1D, 2D and optional Digimarc® barcode decoding
- Compatible with integrated weighing scales for grocery checkouts
- Reads printed and mobile-displayed barcodes with ease
- Adaptive LED lighting for user-friendly operation
- Silent, solid-state design with minimal maintenance
- Powered by standard USB 5V (no external adapter required)
- Integrated diagnostics and remote management support
- Optional Customer Service Scanner (CSS) for scanning mobile coupons in parallel
- 3-Year Factory Warranty
Product Specifications
| Feature | Specification |
| Mount Type | In-counter installation |
| Auxiliary Port | USB Type A (requires 12V external power or powered host) |
| Power Supply | USB 5V or optional 12V DC input |
| Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep: 0.95W |
| Image Sensor | 1 MP (1280 x 800 pixels) |
| Image Capture | JPEG, BMP formats supported |
| Light Source | Multi-diffused LEDs for ergonomic scanning |
| Min. Print Contrast | 25% |
| Scan Height | Up to 10.2 cm |
| Scan Rate | 30 million pixels per second |
| Scan Angles | Pitch: ±65°; Roll: 360°; Skew: ±75° |
| Feedback Indicators | Audio beeper, Good Read LED, Good Transmission |
| Environmental Rating | IP52 (dust/splash resistant) |
| Operating Temp | 10°C to 40°C |
| Storage Temp | -40°C to 70°C |
| Humidity | 5%–95% non-condensing |
| Ambient Light Tolerance | Up to 86,100 lux |
| Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
| Weight | 0.98 kg |
| Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
| Software Utilities | Magellan Scanalyzer, OPOS, JavaPOS |
| Warranty | 3-Year Factory Warranty |
Features
Connectivity:
- Wired
Ruggedness:
- Non-rugged
Brand:
Datalogic
Form Factor:
- Presentation
Scan Engine/Technology:
- 2D
Interface:
- Serial/RS232
Scan Range:
- Midrange
Colour:
- Grey
Rugged:
- General purpose
Usage:
- Mid Level
IP Rating:
- IP52
Industry/Vertical:
- Retail
Warranty:
- 3 Years
Product Type/Condition:
- New
