Description

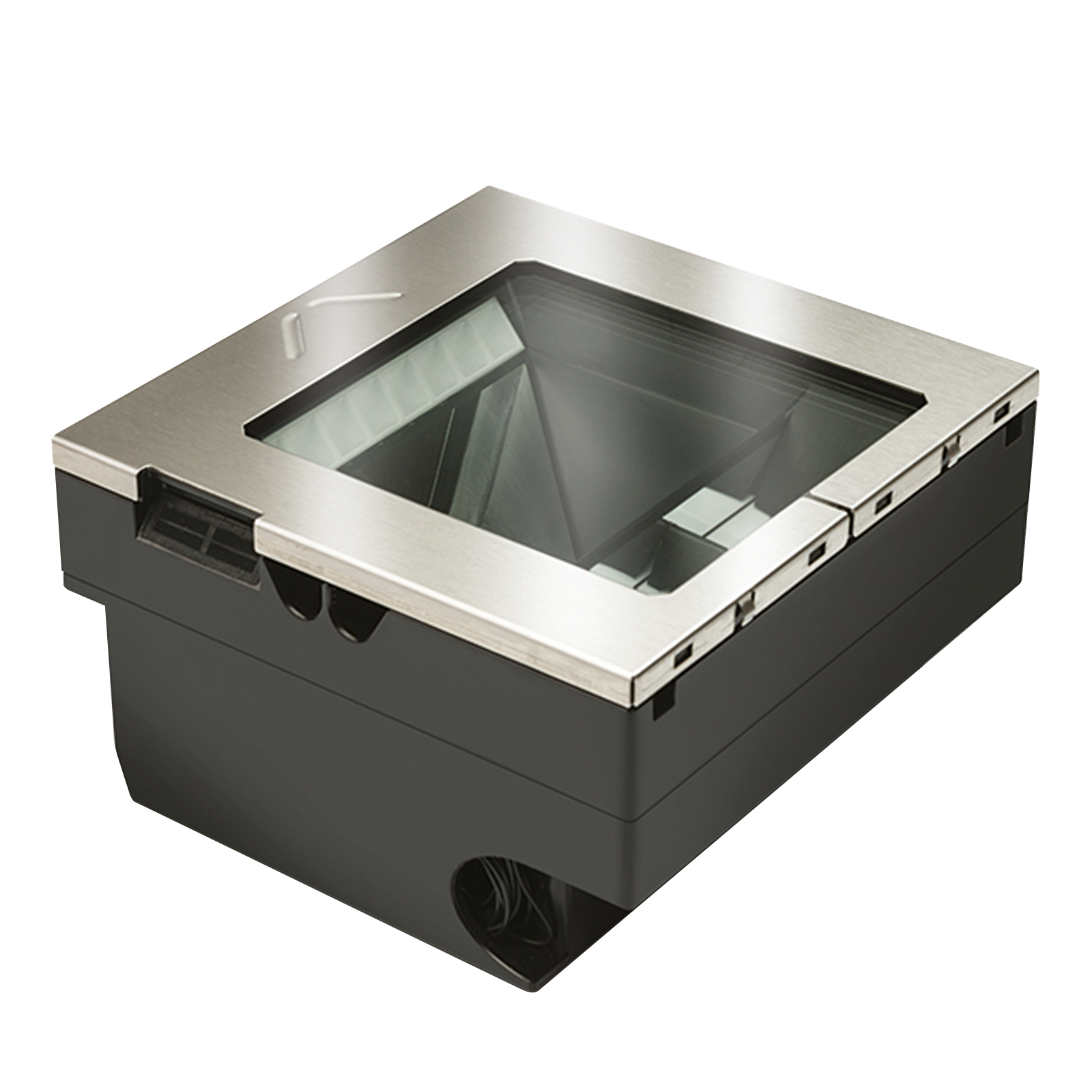

The Datalogic Magellan 3510HSi is a high-performance in-counter barcode scanner, purpose-built for demanding point-of-sale environments. This EU-certified model with USB/Keyboard interface is ideal for retailers who need efficient and accurate scanning from a compact, integrated unit.
Featuring cutting-edge digital imaging, the 3510HSi supports 1D, 2D, and Digimarc® barcode decoding with seamless performance—even on damaged, truncated, or mobile-displayed codes. It operates using only a single 5V USB connection, simplifying installation and reducing cable clutter. Its subtle adaptive illumination, silent operation, and robust design deliver excellent reliability and user comfort for continuous retail use.
Product Features
- In-counter form factor optimised for high-volume retail checkouts
- Certified for EU operation with USB Keyboard interface
- Reads all standard 1D/2D barcodes plus optional Digimarc® support
- USB-powered (5V) – no additional power supply needed
- Solid-state electronics ensure quiet, reliable operation
- Image capture support (BMP, JPEG formats)
- Compatible with EAS systems: Checkpoint and Sensormatic
- Adaptive illumination for comfortable scanning
- Remote management and configuration via OPOS, JavaPOS, Wavelink®
- 3-Year Factory Warranty
Product Specifications
Feature | Specification |
Mount Type | In-counter installation |
Auxiliary Port | USB Type A (requires 12V power to function) |
Power Supply | 5V via USB (standard), or 12V DC (optional) |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep Mode: 0.95W |
Image Sensor | 1 MP (1280 x 800 pixels) |
Image Capture | JPEG, BMP |
Light Source | Multiple diffused LEDs |
Minimum Print Contrast | 25% |
Read Height | Up to 10.2 cm |
Scan Rate | 30 million pixels per second |
Scan Angles | Pitch: ±65°; Roll: 360°; Skew: ±75° |
Feedback Indicators | Audio beeper, Good Read LED, Good Transmission |
Ingress Protection | IP52 (dust and splash resistant) |
Operating Temp | 10°C to 40°C |
Storage Temp | -40°C to 70°C |
Humidity | 5%–95% non-condensing |
Ambient Light Tolerance | Up to 86,100 lux |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
Software Utilities | Magellan Scanalyzer, OPOS, JavaPOS (free) |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
