Description

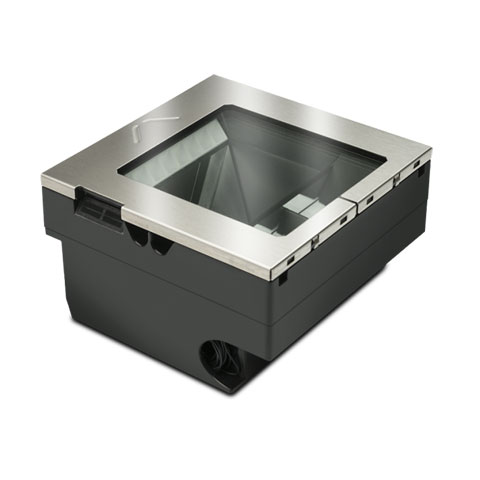

The Datalogic Magellan 3510HSi with OEM USB interface is a high-performance in-counter barcode scanner designed for demanding point-of-sale environments. Engineered for seamless integration with OEM systems, this model delivers industry-leading imaging technology, flexible interface support, and Digimarc® decoding capabilities for modern retail applications.
Powered via a single 5V USB connection, the Magellan 3510HSi supports multiple bar code symbologies and mobile wallet codes, ensuring smooth operation at checkout. The scanner features adaptive illumination for user comfort, and solid-state electronics for silent, reliable operation—making it the perfect solution for fast-paced retail counters and integrated OEM builds.
Product Features
- In-counter design with OEM USB interface for flexible POS integration
- Seamlessly reads 1D, 2D, stacked, and Digimarc® barcodes
- Compatible with printed and digital/mobile barcodes
- Adaptive, low-glare LED illumination for customer-friendly scanning
- USB-powered operation (2.5W) simplifies installation
- Durable, silent solid-state design with minimal moving parts
- Micro SD slot for easy upgrades and configuration
- Integrated diagnostic tools and remote management capabilities
- Compatible with Checkpoint and Tyco Sensormatic EAS systems
- Optional Magellan Customer Service Scanner (CSS) for dual-scanning support
- Backed by a 3-year factory warranty
Product Specifications
Feature | Specification |
Mount Type | In-counter installation |
Power Supply | USB 5V (no external adapter required) |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep: 0.95W |
Image Sensor | 1 MP (1280 x 800 pixels) |
Image Capture | JPEG, BMP formats supported |
Light Source | Multi-diffused LEDs for optimal comfort |
Min. Print Contrast | 25% |
Scan Height | Up to 10.2 cm |
Scan Rate | 30 million pixels per second |
Scan Angles | Pitch: ±65°; Roll: 360°; Skew: ±75° |
Feedback Indicators | Audio beeper, Good Read LED, Good Transmission |
Environmental Rating | IP52 (dust/splash resistant) |
Operating Temp | 10°C to 40°C |
Storage Temp | -40°C to 70°C |
Humidity | 5%–95% non-condensing |
Ambient Light Tolerance | Up to 86,100 lux |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
Software Utilities | Magellan Scanalyzer, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
