Description

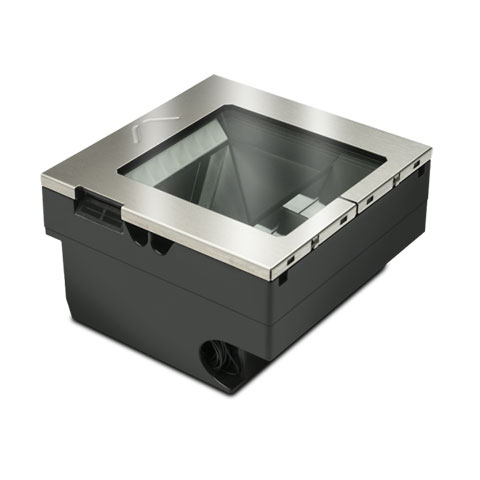

The Datalogic Magellan 3510HSi is a high-performance in-counter barcode scanner built to streamline retail checkout operations with speed, accuracy, and reliability. This variant, featuring RS-232 interface support, ensures seamless integration with traditional POS systems while delivering advanced imaging capabilities, including Digimarc® decoding.
Equipped with a large field-of-view and 1 MP image sensor, the 3510HSi efficiently captures standard and difficult-to-read barcodes—including 1D, 2D, stacked codes, and codes from mobile devices. With adaptive illumination and solid-state construction, it offers whisper-quiet operation and enhanced durability, making it ideal for high-traffic point-of-sale environments.
Product Features
- High-performance in-counter scanner with RS-232 connectivity
- Reads 1D, 2D, PDF417, stacked codes and optional Digimarc® barcodes
- Reads printed and digital barcodes (e.g., from mobile phones)
- 1 MP image sensor for precise and fast barcode decoding
- Advanced LED-based adaptive illumination ensures user comfort
- USB-powered operation via single 5V Type A port (2.5W)
- Durable, solid-state design for silent operation and high reliability
- Micro SD card slot for easy configuration and firmware updates
- Checkpoint and Sensormatic EAS compatible
- Optional Magellan Customer Service Scanner (CSS) for customer-driven barcode scans
- Remote management supported via OPOS, JavaPOS, IBM Director®, and Wavelink® Avalanche®
- Backed by a 3-year manufacturer warranty
Product Specifications
Feature | Specification |
Mount Type | In-counter |
Power Supply | USB 5V (no external supply required) |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep: 0.95W |
Image Sensor | 1 MP (1280 x 800 pixels) |
Image Capture | BMP, JPEG |
Light Source | Multiple diffused LEDs (eye-safe) |
Min. Print Contrast | 25% |
Scan Height | Up to 10.2 cm |
Scan Rate | 30 million pixels per second |
Scan Angles | Pitch: ±65°; Roll: 360°; Skew: ±75° |
Indicators | Beeper (adjustable), Good Read LED, Good Transmission |
Environmental Rating | IP52 (dust/splash resistant) |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5%–95% non-condensing |
Ambient Light Tolerance | Up to 86,100 lux |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
Software Utilities | Magellan Scanalyzer, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- Serial/RS232
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
