Description

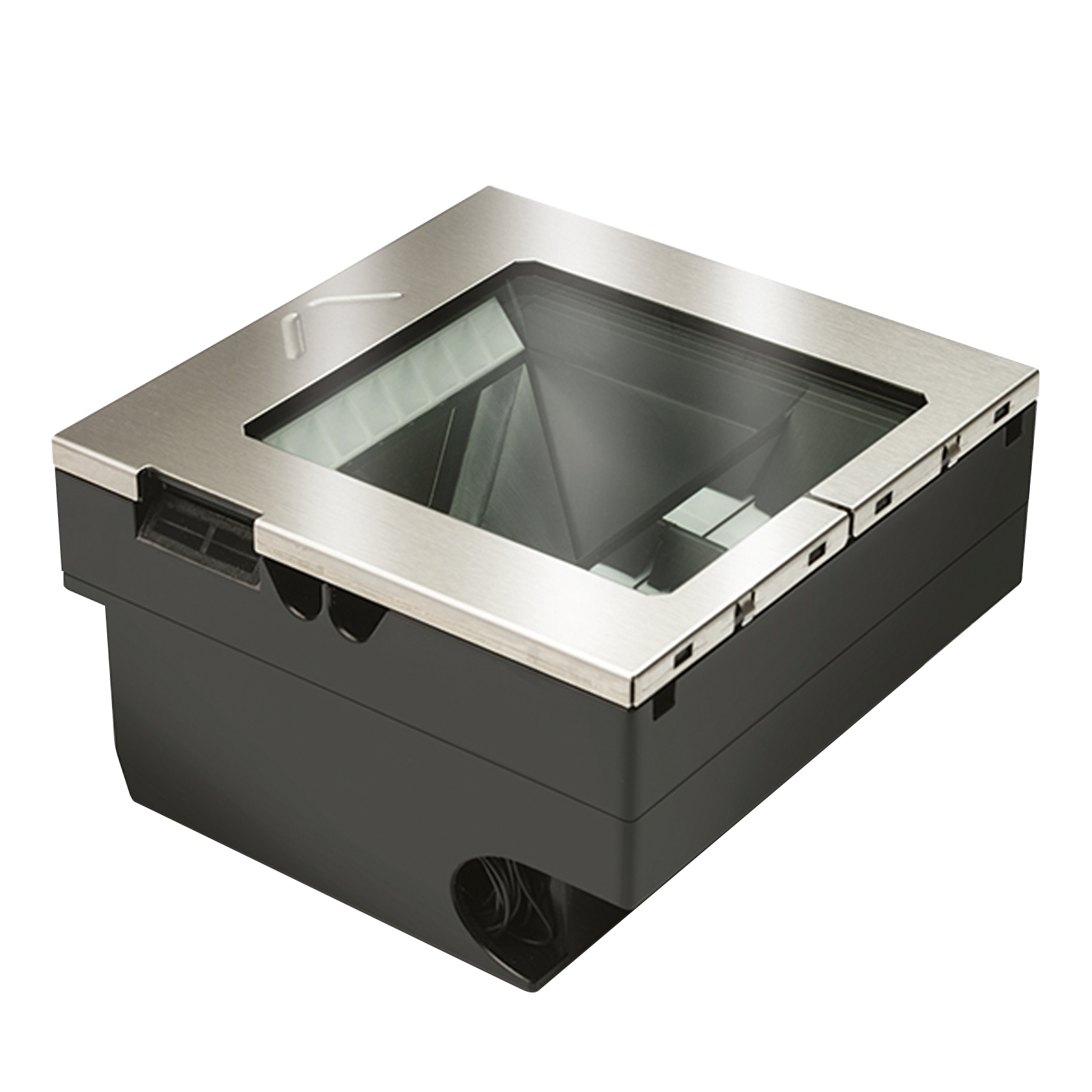

The Datalogic Magellan 3510HSi in-counter barcode scanner brings top-tier imaging performance to retail POS systems. Featuring Digimarc® digital watermark support, a high-resolution 1 MP image sensor, and OEM USB connectivity, it is engineered for high-speed, high-volume environments.
This factory-configured model offers superior decoding of 1D, 2D, and Digimarc barcodes, even on poorly printed or truncated labels. Its compact design easily integrates with existing Magellan systems, while advanced features like adaptive LED lighting, image capture, and solid-state electronics deliver unmatched performance and reliability.
Product Features
- Factory-configured Magellan 3510HSi with standard Digimarc support
- Fast, accurate scanning of 1D, 2D, and digital watermark (Digimarc®) barcodes
- OEM USB interface for seamless integration into IBM POS systems
- High-performance 1 MP sensor with adaptive illumination for operator comfort
- Reads barcodes from screens and paper with ease
- Rugged, solid-state build with silent operation
- Image capture capability and built-in MicroSD card slot
- Diagnostic reporting and support for OPOS, JavaPOS, and remote management tools
- Compatible with Checkpoint and Sensormatic EAS systems
- 3-Year Factory Warranty ensures long-term reliability
Product Specifications
Feature | Specification |
Mount Type | In-counter |
Interfaces | OEM (IBM) USB |
Power Input | 5–12V DC (via USB Type A or external supply) |
Image Sensor | 1 MP CMOS, 1280 × 800 resolution |
Light Source | Multi-diffused LEDs, eye-comfort optimised |
Scan Rate | 30 million pixels per second |
Read Height | 10.2 cm (4.0 in) |
Minimum Print Contrast | 25% |
Resolution | 5 mil |
Scan Angles | Pitch: ±65°; Skew: ±75°; Roll: 360° |
Read Feedback | Audio beeper, Good Read LED, Good Transmission |
Sealing | IP52 |
Ambient Light Tolerance | 0–86,100 lux |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5–95% RH, non-condensing |
Dimensions | 15.2 × 15.2 × 8.7 cm (L×W×D) |
Weight | 0.98 kg (2.16 lbs) |
Certifications | EU & China RoHS, EN62471 Exempt Group |
Configuration Software | Magellan Scanalyzer, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
