Description

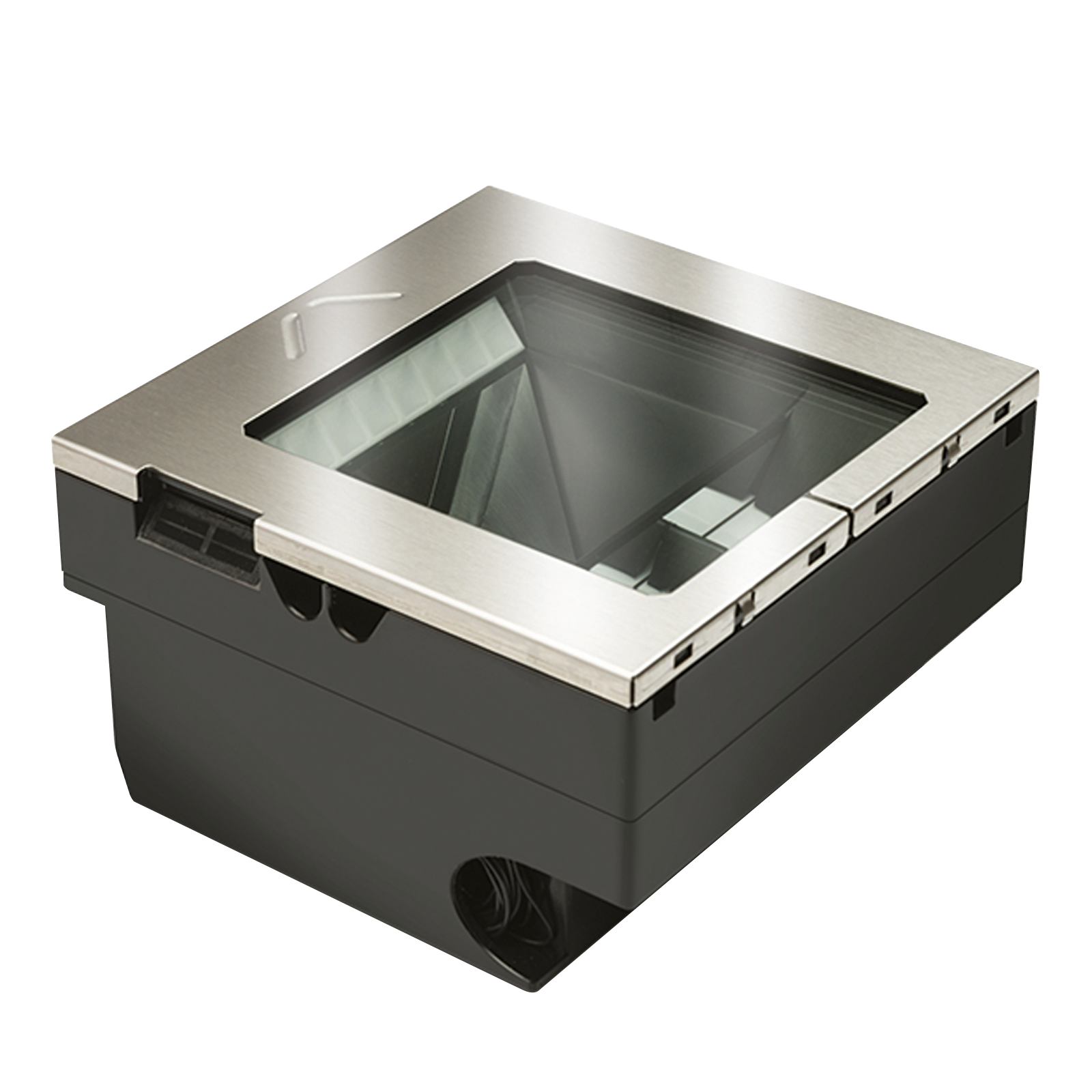

The Datalogic Magellan 3510HSi is a powerful, in-counter barcode scanner designed to enhance productivity and reliability at retail points of sale. Featuring standard configuration with USB Keyboard interface, this scanner ensures quick and easy integration into existing systems, especially in retail environments using keyboard wedge connectivity.
Its advanced digital imaging technology supports 1D, 2D, and Digimarc® barcode decoding, making it ideal for fast-paced checkout lanes. Powered directly via a single 5V USB port, it provides reliable scanning of printed or on-screen codes, offering consistent performance with a sleek, compact footprint. Perfect for high-volume retail, loyalty programs, and mobile coupon applications.
Product Features
- Standard configuration with USB Keyboard interface
- Supports all common 1D/2D barcodes, including QR, PDF417, and Digimarc®
- In-counter mounting for clutter-free POS setups
- Optimised for reading printed and mobile-displayed barcodes
- Adaptive LED illumination ensures user comfort
- Silent, solid-state electronics – no moving parts
- Multiple interface support for flexibility (USB Keyboard, RS-232, OEM USB)
- Diagnostic and reporting tools for easy maintenance
- Supports EAS systems (Checkpoint & Sensormatic)
- Backed by a 3-Year Factory Warranty for long-term reliability
Product Specifications
Feature | Specification |
Model | Magellan 3510HSi (M35,TIN,STD,STD,N,N,N,N,USB KEYBD) |
Mount Type | In-counter (optional mounts sold separately) |
Auxiliary Ports | USB Type A (requires 12V host/power supply to enable) |
Power Supply | 5V DC via USB or 12V DC via external PSU |
Power Consumption | Max: 2.25W @ 5V; Typical: 1.6W; Sleep Mode: 0.95W |
Image Sensor | 1 MP (1280 x 800 pixels) |
Image Capture | JPEG, BMP formats |
Illumination | Diffused LEDs for eye comfort |
Minimum Contrast | 25>#/span### |
Scan Range | Up to 10.2 cm (4.0 in) |
Scan Rate | Up to 30 million pixels per second |
Scan Angles | Pitch: ±65°; Skew: ±75°; Roll: 360° |
Ingress Protection | IP52 – protects against dust and spills |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity Range | 5–95% non-condensing |
Ambient Light Resistance | 0 to 86,100 lux |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Entry Level
- IP52
- Retail
- 3 Years
- New
