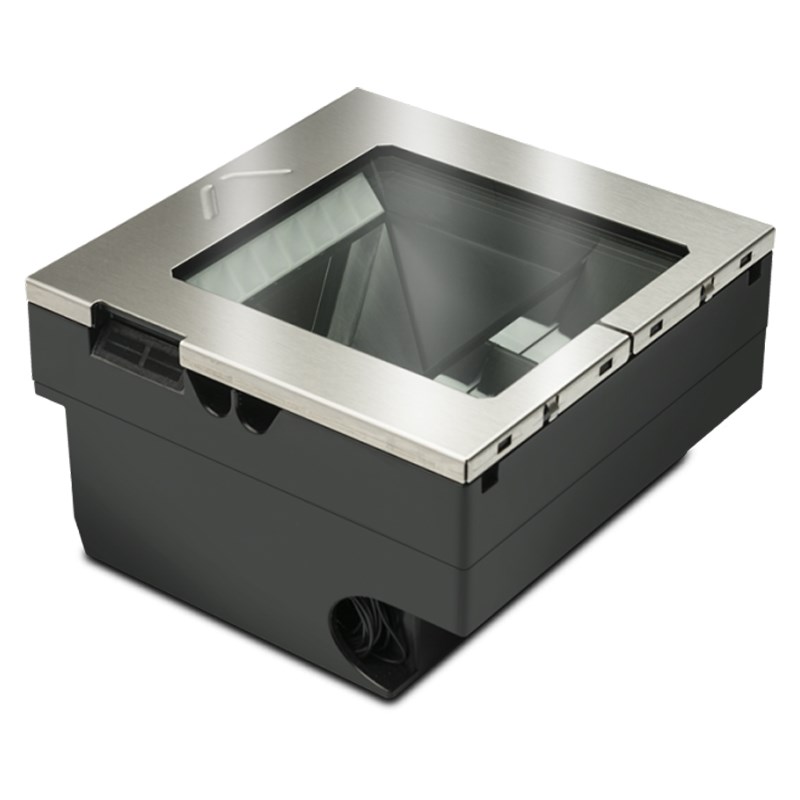

Datalogic Magellan 3510HSi In-Counter Barcode Scanner – USB Kit, Digimarc, Enhanced Illumination, Standard Counter Mount (EU)

Wired, Non-rugged, Datalogic, Presentation, 2D, USB, Midrange, Grey, General purpose, Mid Level, IP52, Retail, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
M3551-010310-07604

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic Magellan™ 3510HSi in-counter barcode scanner is a cutting-edge scanning solution built for high-throughput retail environments. This USB Kit version includes enhanced illumination for operator comfort, Digimarc® digital watermark decoding, and USB Keyboard Interface for simple plug-and-play POS connectivity. Housed in a durable tin oxide glass window, this high-performance scanner ensures fast, reliable, and silent operation using solid-state electronics.

The scanner supports a wide range of 1D and 2D barcode symbologies and is optimised to read barcodes off printed labels or smartphone screens with ease. Perfect for point-of-sale, mobile couponing, and age verification applications, the Magellan 3510HSi integrates seamlessly into existing checkout counters and helps retailers speed up transactions while improving the customer experience.

Product Features

  • High-performance in-counter 1D/2D scanning with Digimarc® decoding support
  • Enhanced low-light illumination optimised for operator comfort
  • Tin oxide glass window for scratch resistance and long-term use
  • USB Keyboard Interface for easy integration with POS systems
  • Reads barcodes from paper and digital screens with high speed and accuracy
  • Solid-state, silent operation enhances reliability and durability
  • Multiple interface support (USB Keyboard, USB Com, RS-232, OEM USB, USB TEC)
  • Powered USB auxiliary port for future expansion (requires 12V host)
  • Micro SD card slot for convenient software upgrades
  • EAS system compatibility with Checkpoint and Sensormatic
  • Remote device management via OPOS, JavaPOS, IBM Director, and Wavelink®


Product Specifications

Feature

Specification

Model

Magellan 3510HSi (USB Kit – EU Region)

Platter Material

Tin Oxide Glass

Image Sensor

1 MP (1280 x 800 pixels)

Image Capture

JPEG, BMP formats

Print Contrast Ratio

Minimum 25%

Read Rate

30 million pixels per second

Read Height

10.2 cm / 4.0 in

Reading Angle

Pitch: ±65°, Roll: 360°, Skew: ±75°

Resolution (Max)

5 mil

Power Input

5V USB Type A (2.5W typical) or 12V DC

Power Consumption

Max: 2.25W @ 5V / 3.3W @ 12V

Ambient Light Resistance

0 – 86,100 lux

Humidity

5 – 95% (non-condensing)

ESD Protection

±25kV (air discharge)

Ingress Protection

IP52

Operating Temp.

10°C to 40°C

Storage Temp.

-40°C to 70°C

Dimensions (L x W x D)

15.2 x 15.2 x 8.7 cm

Weight

0.98 kg

Mount Option

Standard Counter Mount (Included)

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
IP Rating:
  • IP52
Industry/Vertical:
  • Retail
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3972-datasheet.pdf, 179 Kb) [Download]
