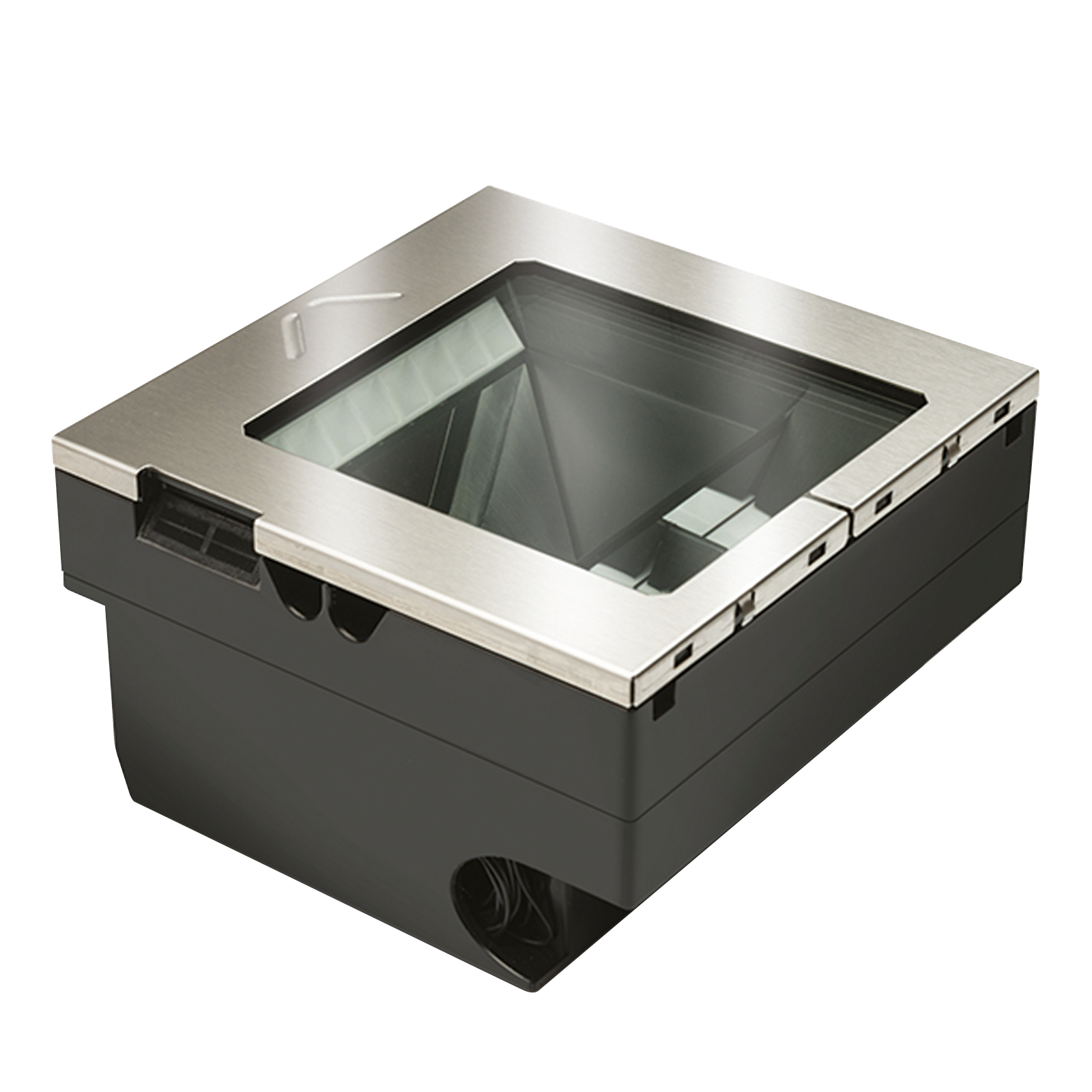

Datalogic Magellan 3510HSi In-Counter Barcode Scanner with HS1250 Fill Kit – USB/Keyboard Interface

Wired, Non-rugged, Datalogic, Presentation, 2D, USB, Midrange, Grey, General purpose, Mid Level, IP52, Retail, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
M3511-010220-00604

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic Magellan 3510HSi delivers best-in-class imaging performance in a compact, in-counter scanner. This model includes the Magellan HS1250 fill kit, ensuring seamless installation in high-throughput retail environments such as grocery and general merchandise stores.

Equipped with USB/Keyboard interface and supporting both 1D/2D and Digimarc® barcodes, the 3510HSi allows for flexible integration into any POS system. With intuitive scanning, even on poorly printed or mobile-displayed barcodes, and enhanced features like EAS compatibility and adaptive illumination, this scanner ensures operational efficiency and a smooth customer experience.

Product Features

  • Includes HS1250 Fill Kit for enhanced installation flexibility
  • Reads all common 1D, 2D, and Digimarc® barcodes
  • In-counter design optimised for retail checkout lanes
  • Advanced digital imaging for high-speed sweep and presentation scanning
  • Powered via single USB port (5V) – no additional power supply required
  • Compatible with Checkpoint and Sensormatic EAS systems
  • Adaptive LED lighting ensures eye comfort and efficient scanning
  • Multiple interfaces including USB/Keyboard, USB COM, RS-232
  • Durable, solid-state build for silent and reliable operation
  • 3-Year Factory Warranty ensures long-term value and reliability


Product Specifications

Feature

Specification

Mount Type

In-counter with HS1250 Fill Kit

Barcode Support

1D, 2D (QR, PDF417, Data Matrix, Aztec), Digimarc®

Interface

USB Keyboard (KBD Wedge); USB COM; RS-232

Auxiliary Ports

USB Type A (requires 12V power for use)

Power Supply

5V DC via USB; 12V DC optional

Power Consumption

Max: 2.25W @ 5V; Typical: 1.6W; Sleep: 0.95W

Image Sensor

1 MP (1280 x 800 pixels)

Image Capture

JPEG, BMP formats

Illumination

Soft diffused LEDs

Minimum Contrast

25%

Read Range

Up to 10.2 cm (4.0 in)

Scan Rate

30 million pixels/sec

Scan Angles

Pitch: ±65°; Skew: ±75°; Roll: 360°

User Feedback

Audio beeper, Good Read LED, Transmission confirmation

Ingress Protection

IP52 – dust and splash resistant

Operating Temp

10°C to 40°C

Storage Temp

-40°C to 70°C

Humidity

5–95% (non-condensing)

Ambient Light Tolerance

Up to 86,100 lux

Dimensions (L x W x D)

15.2 x 15.2 x 8.7 cm

Weight

0.98 kg

Certifications

China RoHS, EU RoHS, EN62471 Exempt Group

Software Utilities

Scanalyzer, OPOS, JavaPOS (free download)

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
IP Rating:
  • IP52
Industry/Vertical:
  • Retail
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3972-datasheet.pdf, 179 Kb) [Download]
