Datalogic Magellan 3550HSi In-Counter Barcode Scanner Kit – RS-232, 1D/2D, Tin Oxide Glass, Standard Mount, EU Power Brick

Wired, Non-rugged, Datalogic, Presentation, 2D, USB, Midrange, Grey, General purpose, Mid Level, IP52, Retail, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
M3553-010210-07203

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

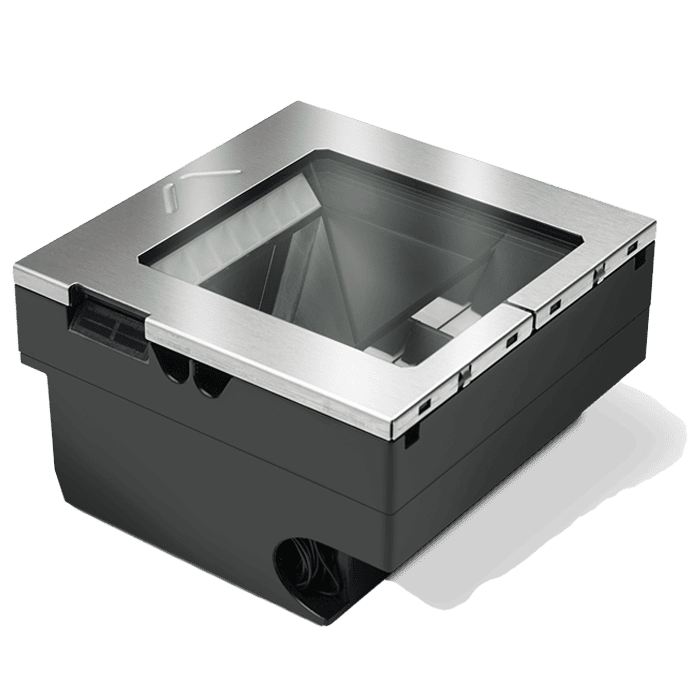

The Datalogic Magellan™ 3550HSi RS-232 Kit is a high-performance in-counter barcode scanning solution designed for fast-paced retail environments. This comprehensive kit includes the Magellan 3550HSi scanner with a tin oxide glass platter, a standard counter mount, EU power brick and cord, and a 4.5m Beetle-compatible extension power cable.

Equipped with RS-232 interface and multi-code reading capability, this advanced imager supports 1D, 2D, and optional Digimarc® barcode formats. Its wide field-of-view and image-based decoding technology deliver exceptional scan accuracy for both printed and digital barcodes—even those poorly printed or truncated.

Ideal for fixed checkout points in supermarkets, pharmacies, and general retail outlets, this scanner kit ensures streamlined installation and powerful POS integration.

Product Features

  • Complete RS-232 scanner kit with power accessories and extension cable
  • Tin oxide glass platter ensures durability and scratch resistance
  • Class-leading performance on 1D, 2D, and Digimarc® barcodes
  • Easily scans from mobile devices, printed labels, and loyalty cards
  • Adaptive LED lighting for operator comfort
  • Integrated EAS support for Checkpoint and Sensormatic systems
  • Micro SD card slot and image capture functionality
  • Multiple onboard interfaces: RS-232, USB Com, USB Keyboard, USB TEC
  • Optional CSS (Customer Service Scanner) support
  • Backed by a 3-year factory warranty


Product Specifications

Feature

Specification

Model

Magellan 3550HSi Kit (RS-232)

Platter Material

Tin Oxide Glass

Mount Type

Standard Counter Mount

Image Sensor

1 MP (1280 x 800 pixels)

Image Formats

JPEG, BMP

Read Rate

30 million pixels per second

Resolution (Max)

5 mil

Read Height

10.2 cm / 4.0 in

Power Requirement

5V–12V DC via power brick (included)

Environmental Rating

IP52

Ambient Light Tolerance

0 to 86,100 lux

Operating Temperature

10°C to 40°C

Storage Temperature

-40°C to 70°C

Humidity (Non-Condensing)

5% to 95%

ESD Protection

±25kV (air discharge)

Dimensions (L x W x D)

15.2 x 15.2 x 8.7 cm

Weight

0.98 kg

Warranty

3-Years



Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
IP Rating:
  • IP52
Industry/Vertical:
  • Retail
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3972-datasheet.pdf, 179 Kb) [Download]
