Description

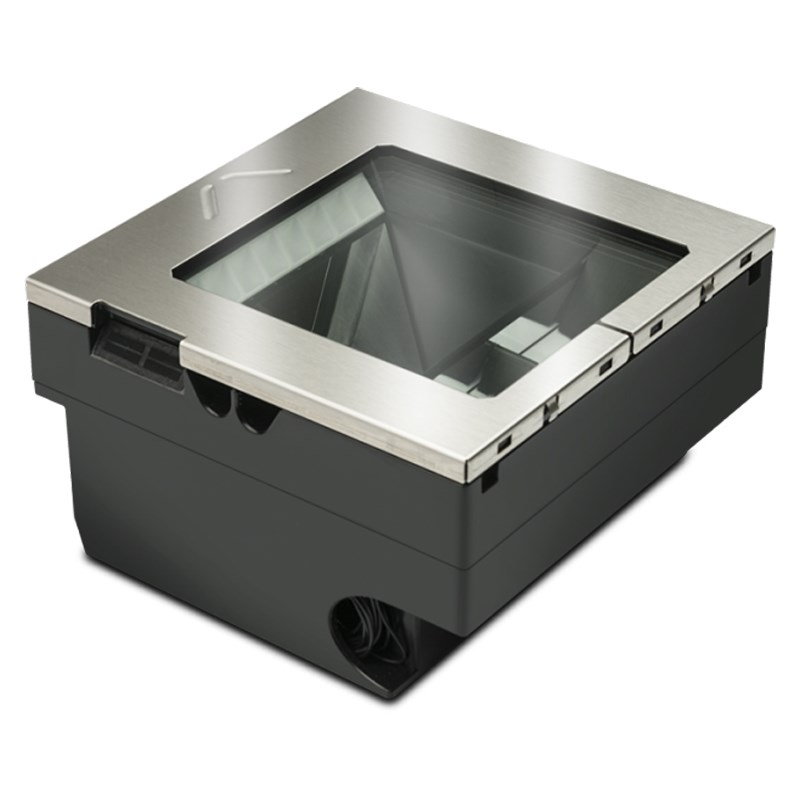

The Datalogic Magellan™ 3550HSi Kit with Sapphire Glass is a top-tier in-counter barcode scanning solution designed to withstand the rigours of high-volume retail environments. Engineered for performance, this model delivers fast and accurate scanning of 1D, 2D, and Digimarc® barcodes, whether presented on printed labels or digital screens.
This kit includes the Magellan 3550HSi scanner, a durable sapphire glass scanning window, and a 4.6m OEM USB cable, providing reliable operation with minimal maintenance. The sapphire glass surface ensures long-term clarity and resistance to scratching, ideal for intensive POS use.
With advanced illumination, silent solid-state electronics, and multiple interface support, this scanner guarantees superior reliability, user comfort, and maximum checkout efficiency. It is powered via a single USB port and supports advanced features like remote management, image capture, and diagnostic reporting.
Product Features
- Includes Magellan 3550HSi scanner, sapphire glass window, and 4.6m OEM USB cable
- Seamless reading of 1D, 2D, and Digimarc® barcodes
- Sapphire glass offers maximum scratch resistance and optical clarity
- Supports digital and printed barcode scanning, including on mobile phones
- Adaptive illumination enhances comfort in any lighting condition
- Powered via USB – no external power supply needed (2.5W)
- MicroSD card slot for firmware upgrades and service logs
- Checkpoint and Sensormatic EAS compatible
- Multiple host interfaces including USB Keyboard, USB COM, RS-232
- 3-Year factory warranty
Product Specifications
Feature | Specification |
Image Sensor | 1 MP (1280 x 800 pixels) |
Read Rate | 30 million pixels per second |
Resolution | 5 mil |
Print Contrast Ratio | ≥ 25% |
Light Source | Multiple diffused LEDs |
Reading Angles | Pitch: ±65°, Roll: 360°, Skew: ±75° |
Ambient Light | Up to 86,100 lux |
Glass Type | Sapphire Glass (Scratch-Resistant) |
Power Supply | 5V USB – Max: 2.25W, Typical: 1.6W |
Environmental Sealing | IP52 |
ESD Protection | ±25 kV |
Operating Temp | 10°C to 40°C |
Storage Temp | -40°C to 70°C |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
