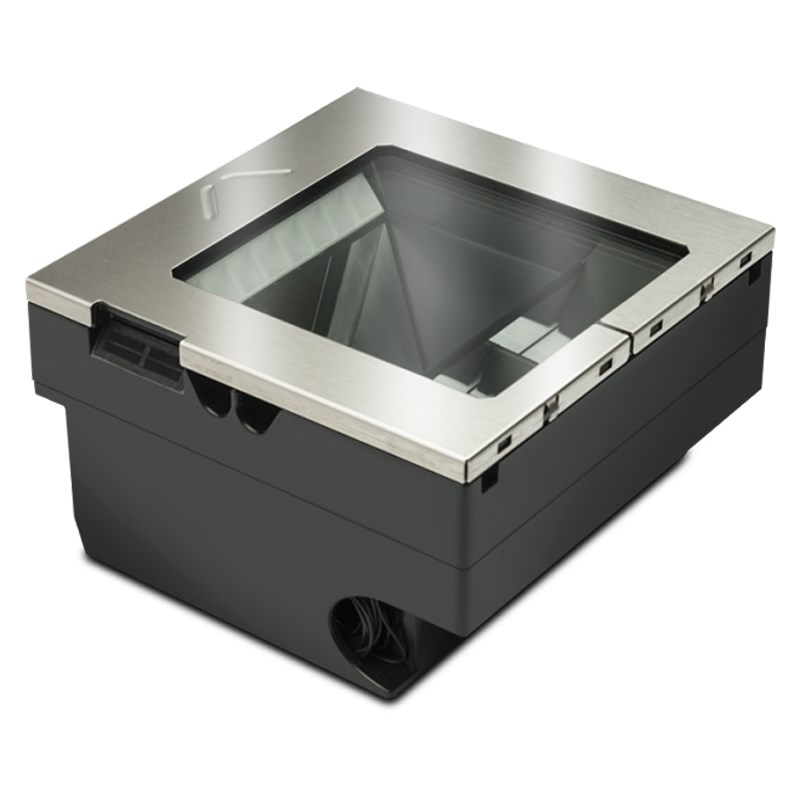

Datalogic Magellan 3550HSi In-Counter Barcode Scanner – Multi-Interface, 1D/2D, Digimarc, No Mount or Cable

Wired, Non-rugged, Datalogic, Presentation, 2D, USB, Serial/RS232, Standard Range, Grey, General purpose, Mid Level, IP52, Retail, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
M3550-010200

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic Magellan™ 3550HSi is a high-performance, in-counter barcode scanner designed to meet the needs of demanding retail environments. Featuring a multi-interface design and advanced digital imaging technology, it offers fast, reliable decoding of 1D, 2D, and Digimarc® barcodes from printed labels or mobile devices.

This model is ideal for integrators and custom installations, shipped without mount or cable – allowing you to tailor connectivity and installation options to suit your existing infrastructure. It delivers exceptional read rates, ergonomic ease, and silent operation thanks to its solid-state electronics and adaptive LED lighting.

Whether used in supermarkets, specialty retail, or mobile marketing checkout counters, the Magellan 3550HSi delivers the flexibility and reliability needed to optimise customer throughput and boost checkout efficiency.

Product Features

  • High-performance in-counter barcode scanner with flexible multi-interface support
  • Reads 1D, 2D, and Digimarc® barcodes for advanced scanning capability
  • No mount or cable included – ideal for custom installation or existing setups
  • Supports printed and mobile barcode scanning
  • Adaptive illumination for eye comfort and consistent performance
  • Solid-state design ensures quiet operation and superior durability
  • Optional Magellan Customer Service Scanner (CSS) supports dual scanning use cases
  • Software-configurable and firmware-upgradeable via microSD card
  • Compatible with Checkpoint® and Sensormatic® EAS systems
  • Remote management support (OPOS, JavaPOS, Wavelink®, Toshiba, IBM Systems Director®)
  • Includes 3-year factory warranty


Product Specifications

Feature

Specification

Image Sensor

1 MP (1280 x 800 pixels)

Image Formats

JPEG, BMP

Read Rate

Up to 30 million pixels per second

Read Height

10.2 cm / 4.0 in

Print Contrast Ratio

25% minimum

Scan Angles

Pitch: ±65°, Roll: 360°, Skew: ±75°

Resolution

5 mil

Ambient Light Resistance

0 – 86,100 lux

ESD Protection

±25 kV (air discharge)

Power Consumption

Max 2.25W @ 5V / 3.3W @ 12V

Mount/Cable

Not included

Ingress Protection

IP52

Operating Temperature

10°C to 40°C

Storage Temperature

-40°C to 70°C

Dimensions (L x W x D)

15.2 x 15.2 x 8.7 cm

Weight

0.98 kg

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
  • Serial/RS232
Scan Range:
  • Standard Range
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
IP Rating:
  • IP52
Industry/Vertical:
  • Retail
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3972-datasheet.pdf, 179 Kb) [Download]
