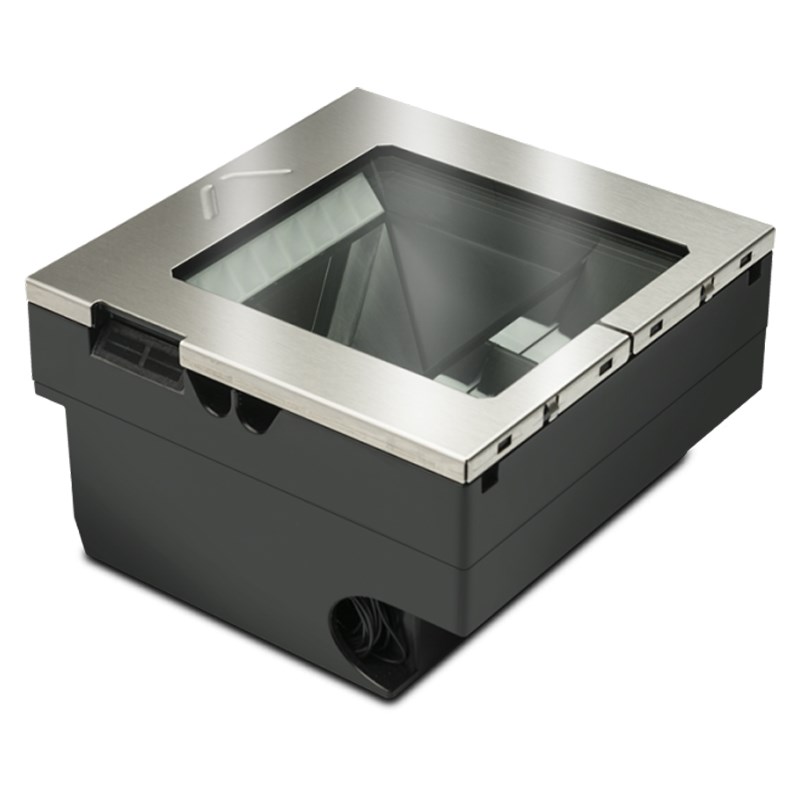

Datalogic Magellan 3550HSi In-Counter Multi-Interface 1D/2D Barcode Scanner – Sapphire Glass, Digimarc Support (No Cable or Mount)

Wired, Datalogic, Presentation, 2D, USB, Midrange, Grey, General purpose, Mid Level, IP52, Retail, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
M3551-010300

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic Magellan™ 3550HSi is a high-performance, in-counter barcode scanner engineered for retail environments demanding speed, accuracy, and future-proof functionality. Designed with a sapphire glass window for long-lasting durability and silent operation, it seamlessly reads 1D, 2D, and Digimarc® barcodes from both printed labels and digital screens.

This multi-interface model supports various connections including USB Keyboard, RS-232, OEM USB, and more, offering flexibility for integration into diverse POS systems. Note: Mounting hardware and cable/power accessories are sold separately, making this scanner ideal for custom setups.

Product Features

  • In-counter barcode scanner with multi-interface connectivity (USB, RS-232, OEM USB, USB Keyboard)
  • Reads 1D, 2D, and Digimarc® digital watermark barcodes
  • Durable sapphire glass scanning window for scratch resistance
  • Compatible with Checkpoint® and Sensormatic® EAS systems
  • Silent operation with solid-state electronics – ideal for retail checkout
  • Advanced imaging with high-speed sweep and presentation scanning
  • Enhanced illumination with soft LED lighting for operator comfort
  • Supports mobile barcode scanning, coupons, and loyalty apps
  • Image capture and diagnostic reporting supported
  • Software-driven – fully upgradeable with Scanalyzer configuration tools
  • 3-Year factory warranty included


Product Specifications

Feature

Specification

Model

Magellan 3550HSi

Scanning Window

Sapphire Glass

Power Requirements

DC Input: 5–12V or via host USB port

Power Consumption

Max: 2.25W @ 5V; Typical: 1.6W @ 5V

Image Sensor

1 MP (1280 x 800), JPEG/BMP image capture

Read Rate

30 million pixels/second

Resolution

5 mil

Print Contrast

≥ 25%

Read Height

Up to 10.2 cm

Reading Angle

Pitch: ±65°, Roll: 360°, Skew: ±75°

Environmental Sealing

IP52; ESD Protection: 25kV

Operating Temp.

10 to 40 °C

Storage Temp.

-40 to 70 °C

Humidity

5 – 95% (non-condensing)

Dimensions (L x W x D)

15.2 x 15.2 x 8.7 cm

Weight

0.98 kg

Mounting / Cable

Sold separately

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wired
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
IP Rating:
  • IP52
Industry/Vertical:
  • Retail
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3972-datasheet.pdf, 179 Kb) [Download]
