Description

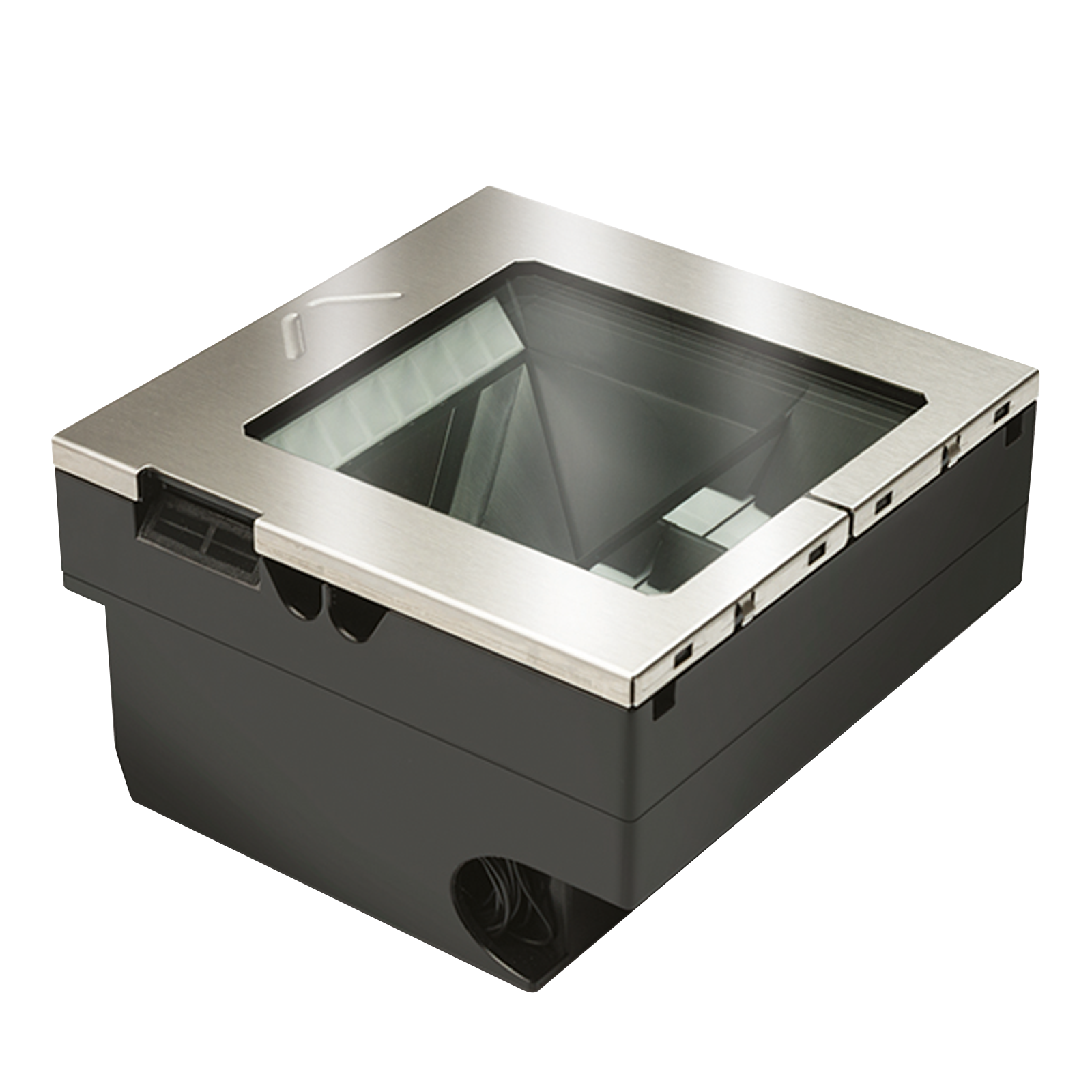

The Datalogic Magellan™ 3550HSi RS-232 Kit with Sapphire Top and Standard Counter Mount delivers best-in-class in-counter scanning for high-volume retail checkouts. Designed for integration into fixed POS stations, this premium scanner features RS-232 serial communication (DE9P Beetle), a durable sapphire glass top, and includes the standard counter mount for seamless installation.
It supports 1D, 2D, and Digimarc® digital watermark barcodes, enabling fast, reliable scans from both printed labels and mobile device screens. Powered via a DC plug and connected using the included 4.5m RS-232 cable, this solution ensures stable operation in demanding point-of-sale environments. The scanner includes solid-state electronics for silent, maintenance-free operation, subtle adaptive lighting, and full EAS compatibility, making it ideal for busy supermarkets, retail chains, and loyalty-driven transactions.
Product Features
- In-counter RS-232 barcode scanner with DE9P Beetle connection and DC plug
- Rugged sapphire top for enhanced durability and scratch resistance
- Reads 1D, 2D, Digimarc®, and mobile display barcodes
- Standard counter mount (11-0027) included for easy installation
- Enhanced reading performance for poorly printed or truncated barcodes
- Adaptive, eye-safe illumination improves user comfort
- Micro SD card slot for diagnostics and firmware updates
- Silent, solid-state design enhances reliability
- Checkpoint® and Sensormatic® EAS compatible
- Image capture support (BMP, JPEG)
- Powered from a single 5V USB port (via power adapter)
- Software upgradeable for future-proof flexibility
- Backed by 3-Year Factory Warranty from Datalogic
Product Specifications
Feature | Specification |
Model | Magellan 3550HSi RS-232 Kit – Sapphire Top |
Mount | 11-0027 Standard Counter Mount |
Top Surface | Sapphire Glass |
Cable | 4.5m / 15 ft RS-232 serial cable (included) |
Power Source | DC input (5–12V), Max 3.3W @ 12V |
Image Sensor | 1 MP (1280 x 800 pixels) |
Reading Speed | Up to 30 million pixels per second |
Print Contrast Ratio | Minimum 25% |
Reading Angle | Pitch: ±65°; Skew: ±75°; Roll: 360° |
Illumination | Multiple diffused LEDs, eye-safe |
Resolution | 5 mil |
Ambient Light Resistance | Up to 86,100 lux |
Environmental Rating | IP52 |
Operating Temp | 10°C to 40°C |
Storage Temp | -40°C to 70°C |
Humidity | 5% to 95% RH, non-condensing |
Dimensions | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Software Utilities | OPOS, JavaPOS, Scanalyzer |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- Serial/RS232
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
