Description

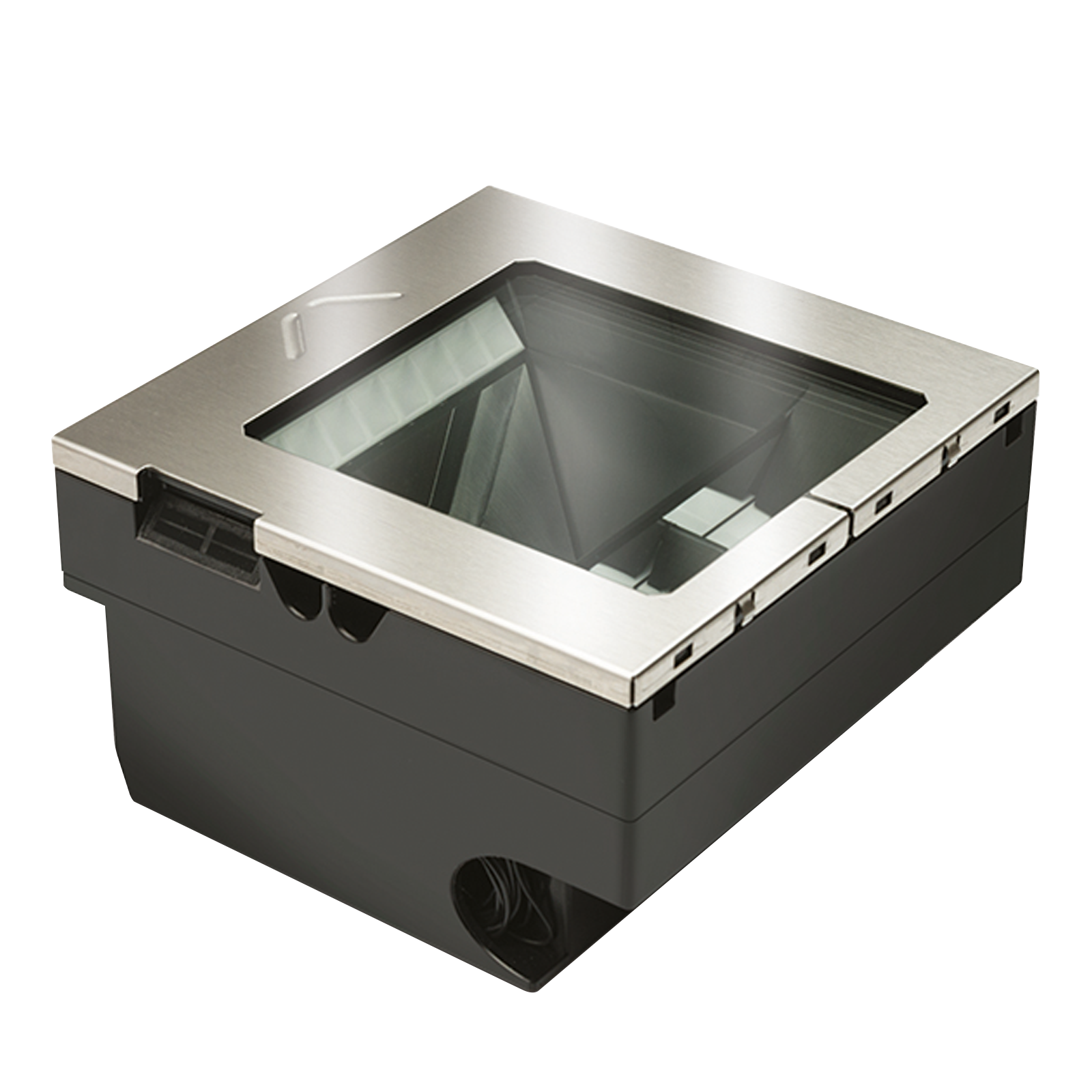

The Datalogic Magellan™ 3550HSi RS-232 Enhanced Scanner is a high-performance in-counter imaging barcode reader designed for UK retail environments requiring exceptional speed, accuracy, and versatility. This factory-configured model supports 1D/2D barcode symbologies including Digimarc®, enabling rapid and seamless scanning of both printed and digital labels.
With RS-232 interface, it integrates easily into legacy POS systems and offers multiple onboard interfaces for flexible connectivity. The scanner’s enhanced digital imaging platform supports reliable reading of even low-quality or truncated barcodes and is ideal for busy point-of-sale operations, self-checkouts, and mobile marketing use cases.
The standard counter mount ensures hassle-free installation, while silent solid-state electronics and subtle adaptive lighting ensure a quiet, comfortable checkout experience. This scanner also supports Checkpoint® and Sensormatic® EAS systems and is backed by a robust 3-year warranty.
Product Features
- In-counter barcode scanner with enhanced imaging performance
- Reads all major 1D, 2D, and Digimarc® digital watermarked barcodes
- RS-232 connectivity for compatibility with legacy POS platforms
- Integrated standard counter mount for easy installation
- Subtle, adaptive LED lighting for improved user comfort
- Supports scanning from printed labels and smartphone screens
- Durable, factory-configured model for UK deployments
- Silent operation with solid-state design for longer life
- Diagnostics tools and micro SD card slot for serviceability
- EAS integration ready with Checkpoint and Sensormatic systems
- Remote management support via JavaPOS, OPOS, and Wavelink® Avalanche®
- 3-Year Factory Warranty
Product Specifications
| Feature | Specification |
|---|---|
| Model | Magellan 3550HSi (M35,ENH,LLT,FACT,1D/2D,STD,N,N,UK,RS232) |
| Mount Type | Standard Counter Mount (Factory Default) |
| Barcode Support | 1D, 2D (PDF417, QR, Data Matrix, Aztec), Digimarc® |
| Interfaces | RS-232, USB Keyboard, USB COM, OEM (IBM), USB TEC |
| Auxiliary Ports | Powered USB Type A (requires 12V host power) |
| Power Supply | DC input 5–12V (Max 3.3W @ 12V) |
| Image Sensor | 1 MP; 1280 x 800 pixels |
| Read Speed | Up to 30 million pixels per second |
| Print Contrast Ratio | ≥ 25% |
| Scan Area | Read height: 10.2 cm |
| Scan Angle | Pitch ±65°, Roll 360°, Skew ±75° |
| Light Source | Multiple diffused LEDs |
| Resolution (Max) | 5 mil |
| Image Capture | JPEG, BMP |
| Ambient Light Tolerance | Up to 86,100 lux |
| Sealing Rating | IP52 |
| Operating Temp | 10°C to 40°C |
| Storage Temp | -40°C to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 15.2 x 15.2 x 8.7 cm |
| Weight | 0.98 kg |
| Software Utilities | JavaPOS, OPOS, Scanalyzer |
| Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
| Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- Serial/RS232
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
