Description

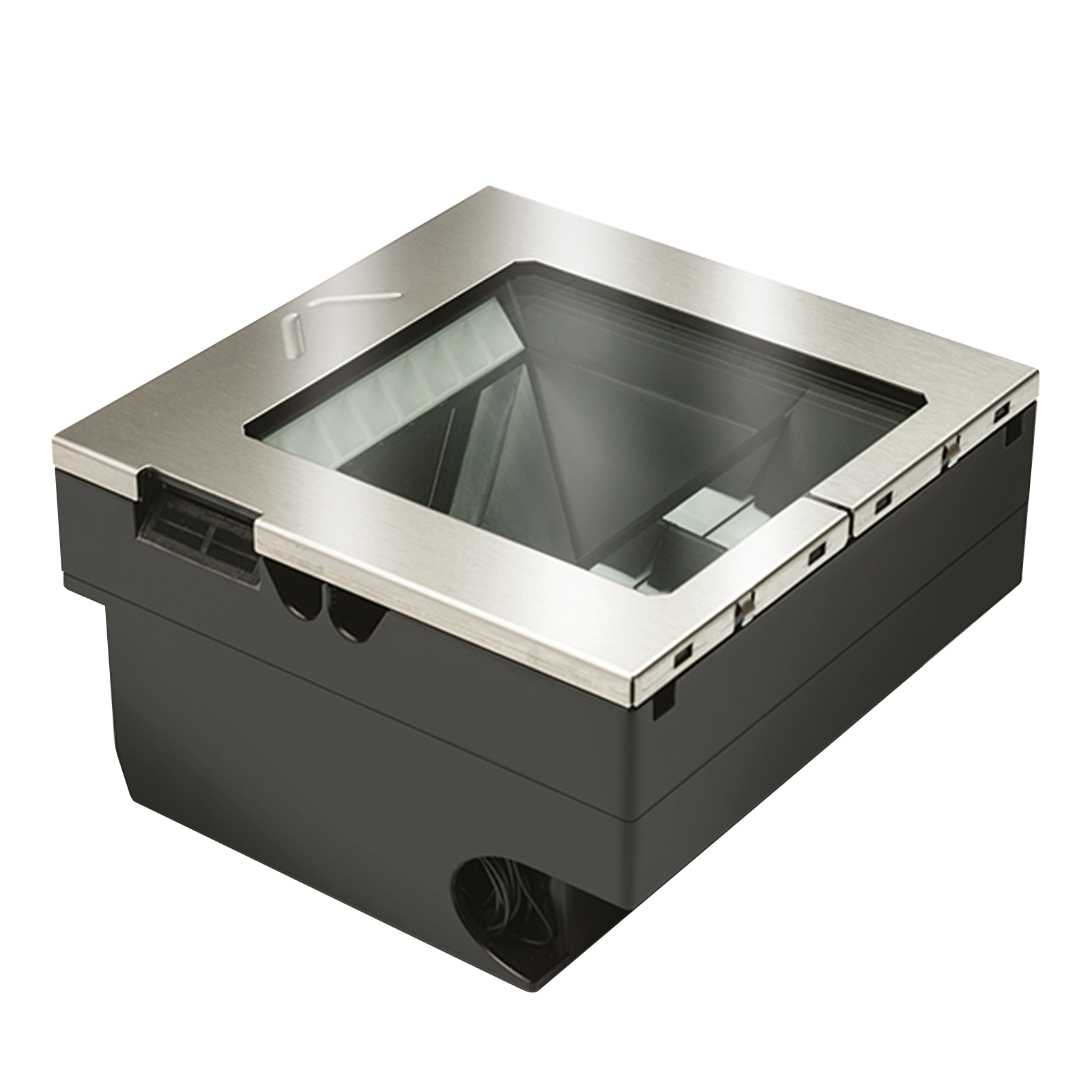

The Datalogic Magellan™ 3550HSi RS-232 Barcode Scanner delivers high-performance scanning in demanding retail environments. Designed for in-counter installation, this scanner supports 1D, 2D, and Digimarc® barcodes, offering seamless reading from paper labels and digital screens alike.
This RS-232 interface version is fully compliant with US/CAN electrical standards, ideal for customers seeking a robust and flexible in-counter solution with serial connectivity. The 3550HSi features advanced digital imaging, adaptive LED illumination, and a silent, solid-state design for reliability and comfort in busy checkout operations.
Packed with enterprise-level features like diagnostics, EAS compatibility, image capture, and remote management support, this scanner is software-driven and upgradeable for long-term performance.
Product Features
- In-counter form factor for integrated retail checkout systems
- RS-232 serial interface for reliable POS system connectivity
- Decodes 1D/2D barcodes and Digimarc® digital watermarks
- Seamless mobile screen scanning (e.g., loyalty apps and coupons)
- Powered via 5–12V DC; compatible with external power supply setups
- Advanced 1 MP imaging sensor with high read rates and wide field of view
- Durable, quiet, and fanless solid-state construction
- Supports Checkpoint and Sensormatic EAS systems
- Diagnostic reporting and Magellan Scanalyzer software for easy setup
- 3-Year Factory Warranty
Product Specifications
Feature | Specification |
Interface | RS-232 (Serial) |
Power Input | 5–12V DC |
Power Consumption | Max: 3.3W @ 12V; Typical: 2.1W @ 12V; Sleep: 1.25W @ 12V |
Image Sensor | 1 MP, 1280 × 800 pixels |
Light Source | Multi-diffused LEDs with eye-comfort design |
Scan Rate | 30 million pixels/sec |
Resolution | 5 mil |
Print Contrast | ≥ 25% |
Scan Height | 10.2 cm (4.0 in) |
Scan Angles | Pitch: ±65°, Skew: ±75°, Roll: 360° |
Indicators | Audio beeper, Good Read LED, Good Transmission |
Environmental Sealing | IP52 |
Ambient Light Tolerance | Up to 86,100 lux |
Temperature (Operating) | 10°C to 40°C |
Temperature (Storage) | -40°C to 70°C |
Humidity | 5%–95% RH, non-condensing |
Dimensions | 15.2 × 15.2 × 8.7 cm (L×W×D) |
Weight | 0.98 kg (2.16 lbs) |
Certifications | RoHS (EU & China), EN62471 Exempt Group |
Utilities | OPOS, JavaPOS, Scanalyzer (Free Download) |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- Serial/RS232
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
