Description

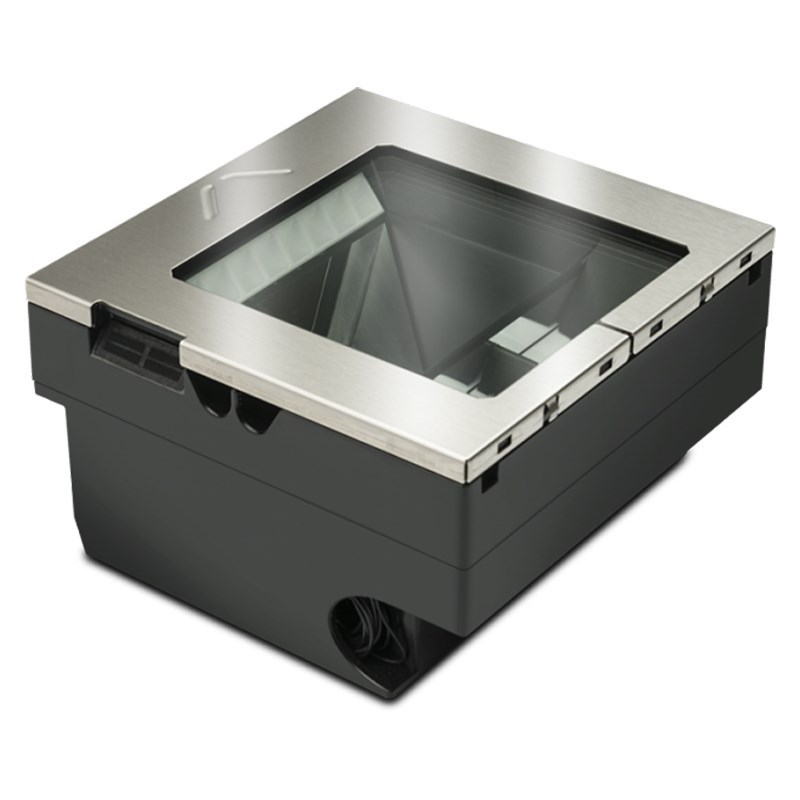

The Datalogic Magellan™ 3550HSi RS-232 Kit is a high-performance in-counter barcode scanning solution designed for demanding retail environments. Featuring sapphire glass for superior durability and an RS-232 interface for seamless POS integration, this model supports Digimarc® watermark decoding, 1D and 2D barcode reading, and is equipped with advanced digital imaging technology.
This ready-to-use kit includes a standard counter mount, EU power supply, and 4.5m DB9 RS-232 cable, making installation fast and efficient. The 3550HSi provides smooth reading of both printed and digital barcodes, thanks to its subtle illumination system, wide field of view, and ability to decode poorly printed or truncated codes. Built to maximise performance and minimise downtime, it's ideal for high-traffic checkout counters.
Product Features
- In-counter high-performance barcode scanner with RS-232 interface
- Reads 1D, 2D, and Digimarc® barcodes for future-ready scanning
- Sapphire glass scanning window for extended durability and scratch resistance
- Ideal for retail point-of-sale, mobile marketing, and age verification
- Compatible with Checkpoint® and Sensormatic® EAS systems
- Omni-directional scanning for printed and digital barcodes
- Advanced imaging sensor for fast, accurate reads even in low light
- Solid-state design for silent operation and enhanced reliability
- Includes standard counter mount, EU power brick and 15ft DB9 extension cable
- Backed by 3-year factory warranty
Product Specifications
Feature | Specification |
Model | Datalogic Magellan 3550HSi RS-232 Kit |
Glass Type | Sapphire Glass |
Interface | RS-232 (PC DB9) |
Image Sensor | 1 MP (1280 x 800 pixels) |
Image Formats | JPEG, BMP |
Read Rate | Up to 30 million pixels per second |
Read Height | 10.2 cm / 4.0 in |
Min. Print Contrast | 25% |
Scan Angles | Pitch: ±65°, Roll: 360°, Skew: ±75° |
Resolution | 5 mil (maximum) |
Ambient Light Resistance | 0 – 86,100 lux |
ESD Protection | ±25 kV (air discharge) |
Power Consumption | Max 2.25W @ 5V / 3.3W @ 12V |
Mount Type | Standard Counter Mount |
Ingress Protection | IP52 |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Dimensions (L x W x D) | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- Serial/RS232
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
