Datalogic Magellan 3550HSi USB COM Barcode Scanner Kit – Sapphire Glass, 1D/2D, EU Power Brick, 4.5m Cable

Wired, Non-rugged, Datalogic, Presentation, 2D, USB, Midrange, Grey, General purpose, Mid Level, IP52, Retail, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
M3551-010200-07904

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

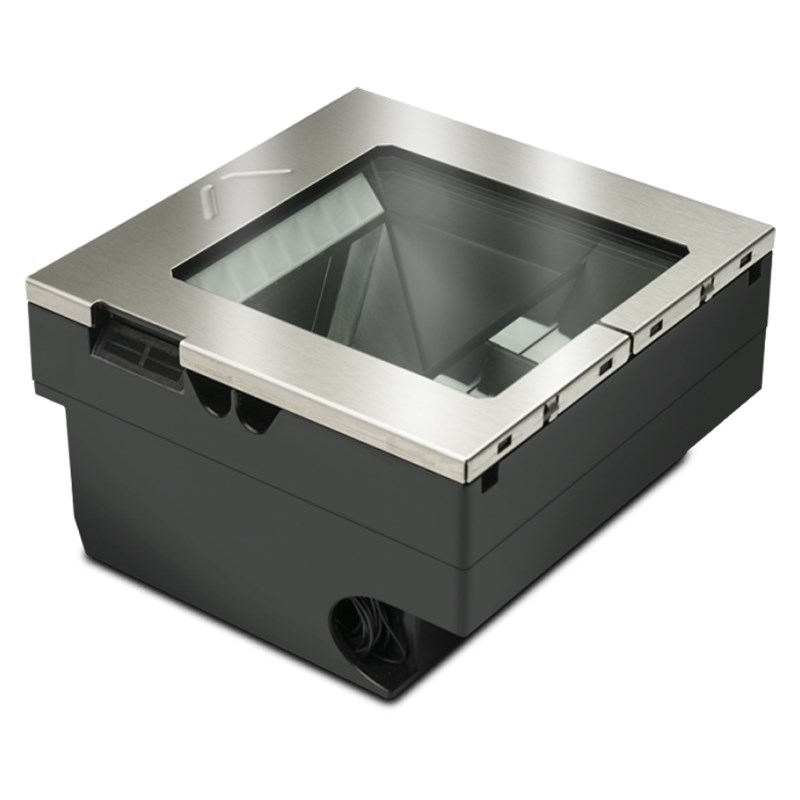

The Datalogic Magellan™ 3550HSi USB COM Kit is a high-performance in-counter barcode scanner optimised for retail and point-of-sale environments in the UK. This model is equipped with a sapphire glass scanning window, USB Type A COM interface, EU-compliant power brick, and a 4.5m (15 ft) cable, offering durability and flexible deployment across diverse checkout setups.

With industry-leading digital imaging technology, it delivers seamless scanning of 1D, 2D, and Digimarc® codes, whether printed or on a mobile screen. The scanner’s subtle adaptive LED illumination improves user comfort, while the rugged sapphire glass enhances longevity and resistance to wear. Designed for easy integration into existing counters, this Magellan scanner supports a wide array of POS systems, remote diagnostics, and enterprise tools such as OPOS and JavaPOS.

Product Features

  • Complete kit with USB COM Type A interface, EU power supply, and 4.5m cable
  • High-speed imaging with support for 1D, 2D, and Digimarc® barcodes
  • Rugged sapphire glass window for scratch resistance and durability
  • Advanced adaptive LED lighting enhances user comfort and readability
  • Compatible with barcodes on mobile devices, loyalty cards, and paper coupons
  • Remote management via OPOS, JavaPOS, Wavelink® Avalanche®, and more
  • Integrated EAS compatibility with Checkpoint and Sensormatic systems
  • Micro SD card slot for firmware updates and diagnostics
  • Silent operation with solid-state components
  • Backed by a 3-Year Factory Warranty


Product Specifications

Feature

Specification

Interface

USB COM (Type A)

Image Sensor

1 MP (1280 x 800 pixels)

Read Rate

Up to 30 million pixels/sec

Resolution

5 mil

Print Contrast Ratio

≥ 25%

Light Source

Multi-wavelength diffused LEDs

Ambient Light Tolerance

0–86,100 lux

Power Supply

External AC (100–240V, 50–60Hz) EU Plug

Power Consumption

Max: 3.3W @ 12V; Typical: 2.1W @ 12V

Environmental Rating

IP52

ESD Protection

±25 kV

Temperature (Operating)

10°C to 40°C

Temperature (Storage)

-40°C to 70°C

Dimensions (L x W x D)

15.2 x 15.2 x 8.7 cm

Weight

0.98 kg

Warranty

3-Year Factory Warranty

Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
IP Rating:
  • IP52
Industry/Vertical:
  • Retail
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3972-datasheet.pdf, 179 Kb) [Download]
