Description

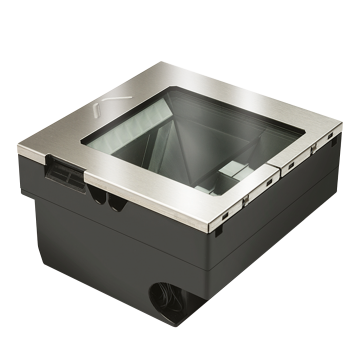

The Datalogic Magellan™ 3550HSi USB-K Scanner is a high-performance in-counter imaging barcode reader optimised for high-volume retail point-of-sale environments. Powered via a single 5V USB connection, this factory-configured model supports 1D, 2D, and Digimarc® digital watermark barcodes, ensuring fast and seamless scanning from both printed labels and mobile screens.
Ideal for grocery, pharmacy, and general retail checkout counters, the scanner features advanced imaging technology with a large field of view to deliver exceptional read rates, even on damaged or poorly printed codes. This model is equipped with a USB Keyboard interface and complies with EU regulatory standards.
The solid-state design, adaptive LED illumination, and silent operation enhance both durability and user comfort, while software-driven features make it highly flexible and future-ready.
Product Features
- In-counter scanner with high-speed sweep and presentation scan modes
- Reads 1D/2D barcodes and Digimarc® watermarks with industry-leading accuracy
- Powered by USB Type A (USB-K interface) – no external power required
- Enhanced image sensor (1 MP) for better capture of difficult or damaged barcodes
- Optimised for mobile barcode scanning from smartphones and digital wallets
- Software-upgradeable platform with microSD slot for serviceability
- Solid-state electronics for quiet and reliable operation
- EAS-compatible with Checkpoint and Sensormatic systems
- Fully supports OPOS, JavaPOS, and Wavelink® Avalanche®
- 3-Year Factory Warranty included
Product Specifications
Feature | Specification |
Interface | USB Keyboard (USB-K) |
Aux Ports | Powered USB Type A (not enabled with 5V USB host) |
Power Requirements | 5V DC (USB-powered); Max 2.25W |
Image Sensor | 1 MP, 1280 x 800 pixels |
Light Source | Multiple diffused LEDs for low-glare scanning |
Read Speed | 30 million pixels per second |
Resolution | Up to 5 mil |
Print Contrast | ≥ 25% |
Read Height | 10.2 cm |
Scanning Angles | Pitch: ±65°, Roll: 360°, Skew: ±75° |
Environmental Sealing | IP52-rated |
Ambient Light Tolerance | Up to 86,100 lux |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5–95% RH (non-condensing) |
Dimensions | 15.2 x 15.2 x 8.7 cm |
Weight | 0.98 kg |
Certifications | EU RoHS, China RoHS, EN62471 Exempt Group |
Software Utilities | Scanalyzer, OPOS, JavaPOS (Free download) |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- IP52
- Retail
- 3 Years
- New
