Description

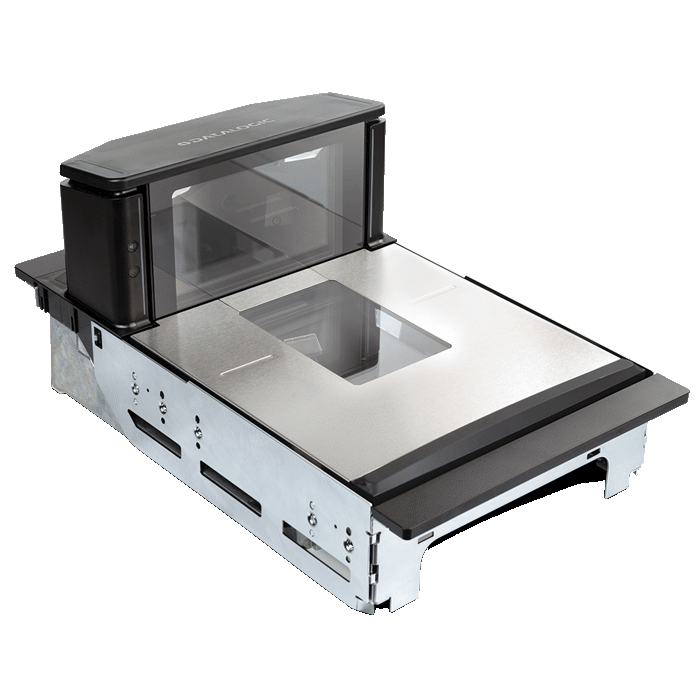

The Datalogic Magellan™ 9600i Scanner/Scale is engineered for the UK’s busiest retail environments, combining cutting-edge image capture, adaptive weighing, and built-in AI readiness. Designed with a medium platter, fixed produce rail, and shelf mount chassis, this unit offers seamless installation and reliable performance across assisted and self-checkout lanes.
Powered by QuadVision™ imaging technology and a high-performance IMX8 multi-core processor, it simultaneously reads barcodes from 5 planes with extreme precision, even under poor lighting or barcode damage. Future-forward features like neural processors, optional Coral TPU, and dual colour cameras enable integration with advanced AI models and GS1 Digital Link readiness.
Its ScaleSentry™ infrared monitoring system prevents produce misplacement on the scale, while the All-Weighs™ platter ensures bulky items are properly weighed — boosting accuracy and reducing shrinkage. Certified for dual interval metric configurations and fully preverified for EU compliance, this scanner/scale combo is the smart choice for UK retail chains aiming to modernise their checkout operations.
Product Features
- QuadVision™ 4-Camera Imaging – Captures barcodes from 5 planes for ultra-fast decoding
- AI-Ready Design – Supports Coral TPU, neural processors, and colour cameras for future AI/ML use
- ScaleSentry™ Loss Prevention – Infrared detection system alerts for produce misplacement
- Dual Interval Metric Scale – EU preverified, measures up to 30 kg with precision
- All-Weighs™ Bonnet Platter – Enables accurate weighing of oversized produce across the bonnet
- Shelf Mount & Fixed Produce Rail – Sturdy design ideal for high-traffic POS environments
- Multi-Interface Support – USB, Powered USB, RS-232, IBM 46XX, Ethernet
- Customer Display Support – Optional remote display port for weight/price viewing
- Touch-Activated Controls – Capacitive buttons for easy, hygienic operation
- Future-Ready for GS1 Digital Link – Barcode decoding aligned with next-gen GS1 specs
Product Specifications
Attribute | Details |
Brand | Datalogic |
Model | Magellan™ 9600i Scanner/Scale |
Form Factor | In Counter |
Mount Type | Shelf Mount |
Platter Type | Medium Platter (39.9 cm / 15.7 in) |
Produce Rail | Fixed Produce Rail |
Bonnet Height | 13.4 cm (5.3 in) |
Scan Engine | QuadVision™ 2D Area Imager (4 cameras) |
Processor | IMX8 Multi-Core with Embedded Linux OS |
Scale Type | Dual Interval (EU Preverified, Metric Config) |
Weight Range | 0–6 kg @ 0.002 kg; 6–15 kg @ 0.005 kg |
Display Support | Remote display compatible (sold separately) |
Operating Systems | Windows, Linux, Android, IBM 4690 |
Power Requirements | 12 VDC (Power Brick Sold Separately) |
Environmental Tolerance | Temp: 10–40°C; Humidity: 5–95%; ESD: 25 kV |
Warranty | 1-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- Retail
- 1 Year
- New
