Description

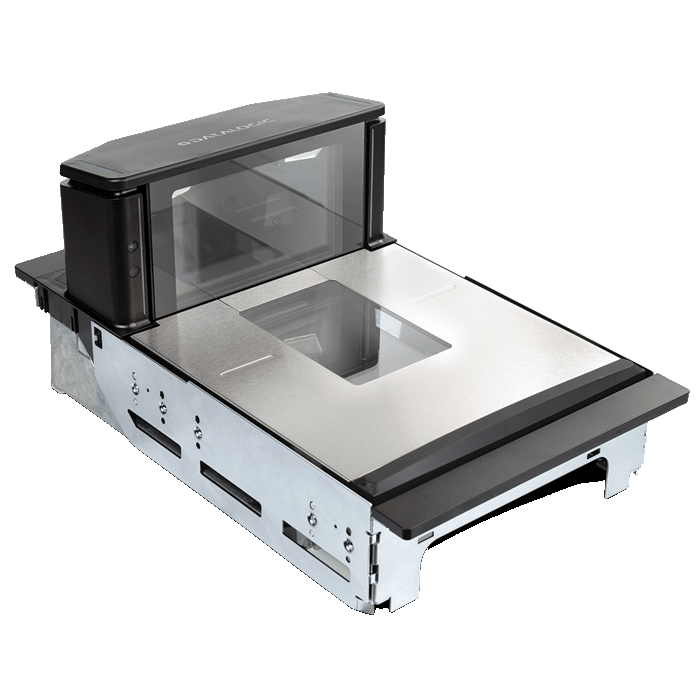

The Datalogic Magellan™ 9600i Scanner/Scale sets the benchmark for next-generation checkout systems, combining premium barcode scanning, adaptive weighing, and embedded AI capabilities. Designed for high-volume retail and grocery environments across the UK, this scanner/scale hybrid streamlines transactions while reducing shrink.
Built with QuadVision™ technology, the 9600i leverages four high-resolution cameras and an IMX8 multi-core processor to deliver unmatched 5-sided image capture—even on damaged or poorly printed barcodes. The integrated ScaleSentry™ system uses infrared detection to prevent under-weighing by alerting staff to misplacement on the scale platter.
This configuration includes a medium All-Weighs™ scale platter with a fixed produce rail, making it ideal for large or oddly shaped items. The USB Powered (POT) Cable supports scanner and scale functions with a single cable, reducing clutter and simplifying integration.
Fully AI-ready, this model offers optional neural processors, Coral TPUs, and dual colour cameras to support image recognition, loss prevention, and real-time analytics. Future-ready for GS1 Digital Link, the Magellan 9600i is built to adapt as retail technology evolves.
Product Features
- QuadVision™ Image Capture: 5-sided scanning with four high-res cameras
- Embedded IMX8 Processor: Delivers AI compute power at the edge
- ScaleSentry™ Technology: Prevents shrink with IR detection of off-platter placement
- Medium All-Weighs™ Platter: Integrated weighing with large item support
- Fixed Produce Rail: Ideal for high-throughput produce scanning
- USB Powered Operation: USB POT Cable simplifies installation and connectivity
- AI-Ready Design: Supports neural processors and Coral TPU acceleration (optional)
- GS1 Digital Link Compatible: Future-proofed barcode decoding
- Multiple OS Support: Works with Windows, Android, Linux, and IBM 4690
- Built-In Ethernet & USB Ports: Expandable interfaces for retail systems
Product Specifications
Attribute | Details |
Brand | Datalogic |
Model | Magellan™ 9600i Scanner/Scale |
Form Factor | In Counter |
Mount Type | Flange Mount |
Platter Type | Medium All-Weighs™ with Fixed Produce Rail |
Scan Engine | QuadVision™ 2D Area Imager |
Processor | IMX8 Multi-Core with Embedded Linux OS |
Interface | USB Powered (USB POT Cable) |
OS Compatibility | Windows, Android, Linux, IBM 4690 |
Certifications | RoHS, REACH, CE Compliant |
Dimensions (W x L x H) | 29.2 cm x 39.9 cm x 13.4 cm (above counter) |
Weight Capacity | 0–15 kg active |
Temperature Range | Operating: 10–40°C |
Humidity Range | 5–95% RH, non-condensing |
ESD Protection | Up to 25 kV air discharge |
Warranty | 1-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- Retail
- 1 Year
- New
