Datalogic Magellan™ 9600i Scanner Only – Medium Platter, Shelf Mount, Fixed Produce Rail, ScaleSentry, Power Brick Included

Non-rugged, Wired, Datalogic, Presentation, 2D, USB, Midrange, Grey, General purpose, Mid Level, Retail, 1 Year, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
96111001000-001100

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

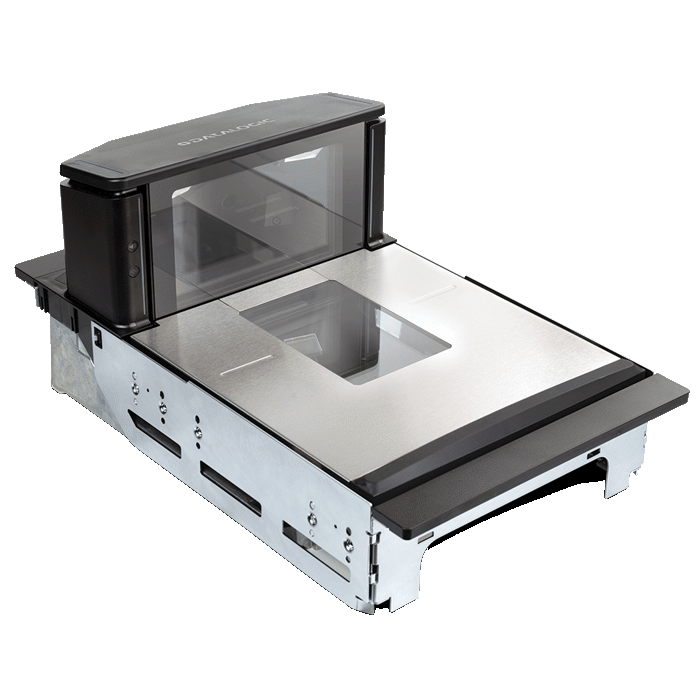

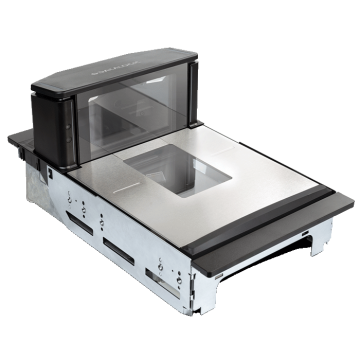

Designed for high-volume retail environments, the Datalogic Magellan™ 9600i Scanner Only offers top-tier imaging technology and future-ready AI capabilities, now available in a medium platter, shelf-mount configuration with a fixed produce rail.

At its core, the 9600i is powered by QuadVision™, a cutting-edge system with four cameras and an IMX8 multi-core processor, enabling simultaneous multi-plane scanning and superior performance even on damaged barcodes. With ScaleSentry™ infrared monitoring, it delivers exceptional loss prevention by identifying produce placed incorrectly on the scale area.

This configuration includes a UK-compatible power brick, while the power cord and data cable are sold separately, providing flexible installation to suit your existing POS environment.

Whether used in assisted or self-checkouts, the Magellan 9600i redefines scanning performance with GS1 Digital Link support, colour imaging, and optional AI integration via Coral TPU and embedded neural processors.

Product Features

  • QuadVision™ Multi-Camera Technology – Delivers rapid, accurate barcode capture from all angles
  • IMX8 Multi-Core Processor – Enables fast decoding and future AI processing
  • Medium Platter with Shelf Mount – Tailored for UK grocery and retail checkouts
  • Fixed Produce Rail Design – Ensures produce placement and weighing accuracy
  • ScaleSentry™ Technology – Prevents shrink by detecting misplacement on the scale
  • AI-Ready Hardware – Supports colour cameras, neural processors, and Coral TPU (optional)
  • GS1 Digital Link Support – Future-proof your checkout for emerging barcode standards
  • Sanitisable Design – Smooth surfaces and touch buttons for easy cleaning
  • UK Power Brick Included – Power cord and communication cables sold separately
  • Multi-Interface Compatibility – Supports RS-232, USB, and IBM POS systems


Product Specifications

Attribute

Details

Brand

Datalogic

Model

Magellan™ 9600i (Scanner Only – 9612 series)

Form Factor

In-Counter (Scanner Only)

Platter Size

Medium – 39.9 cm / 15.7 in

Mount Type

Shelf Mount with Fixed Produce Rail

Scan Engine

QuadVision™ 4-Camera 2D Area Imager

Processor

IMX8 Multi-Core ARM, Embedded Linux

Shrink Prevention

ScaleSentry™ IR Detection with Alerts

Ambient Light Tolerance

0–86,080 lux

Power Consumption

Operating: 9.3W; Sleep: 7.3W

ESD Protection

25 kV Air Discharge

Static Load Capacity

68 kg / 150 lb

Operating Temperature

10°C to 40°C

Storage Temperature

-40°C to 70°C

Humidity Range

5–95% RH, non-condensing

Dimensions (LxWxH)

39.9 cm x 29.2 cm x 13.4 cm

Weight

Approx. 5.5 kg (varies by configuration)

OS Compatibility

Windows, Android, Linux, IBM 4690

Warranty

1-Year Standard Factory Warranty

Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
Industry/Vertical:
  • Retail
Warranty:
  • 1 Year
Product Type/Condition:
  • New

Attachments

Brochure (4136-datasheet.pdf, 167 Kb) [Download]
