Description

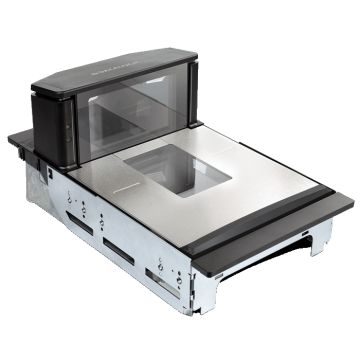

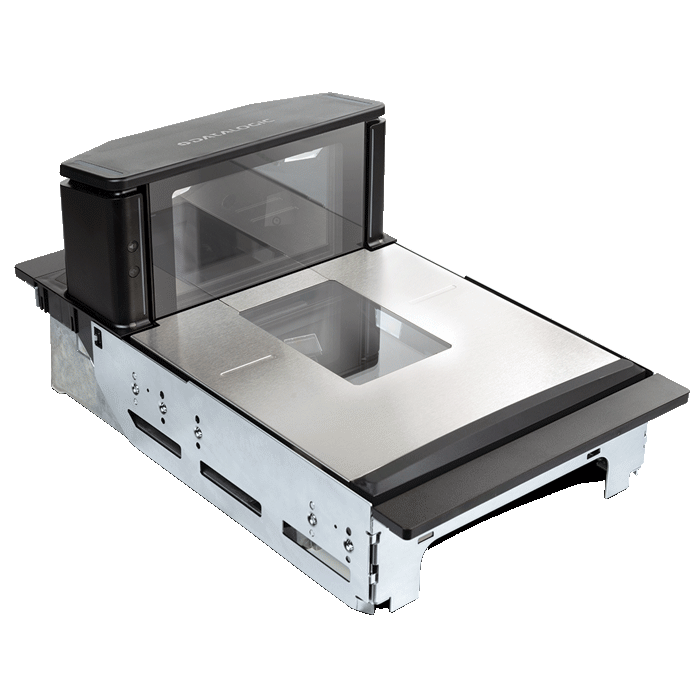

Engineered for modern checkout environments, the Datalogic Magellan™ 9600i Scanner Only – Short Platter Configuration is designed to elevate performance, prevent shrink, and support AI integration in both assisted and self-checkout systems.
This model features a compact short platter design with shelf mount, Adaptive Scale readiness, and comes complete with RS-232 WN communication cable and IT/CH power brick and cord. The Magellan™ 9600i boasts QuadVision™ imaging technology, combining four high-resolution cameras with an advanced IMX8 multi-core processor to deliver unmatched decoding speed, accuracy, and future scalability.
With built-in ScaleSentry™ infrared monitoring, it prevents under-weighing errors caused by misplacement, while the All-Weighs™ scale platter support provides extended functionality for weighing long or bulky items when paired with compatible scales.
Future-proof your checkout with optional AI capabilities, GS1 Digital Link readiness, and modular hardware upgrades including Coral TPU processors and colour cameras for machine learning and visual recognition.
Product Features
- QuadVision™ Imaging System – Four-camera architecture delivers superior barcode reading
- IMX8 Multi-Core Processor – Optimised for high-speed decoding and AI applications
- Short Platter Design – Perfect for space-constrained UK checkout counters
- Adaptive Scale Ready – Compatible with Avery, Mettler Toledo, DIGI, and more
- ScaleSentry™ Shrink Prevention – IR beam detects misplacement of produce on scale area
- All-Weighs™ Support – Accommodates long items over bonnet surface for accurate weighing
- RS-232 WN Cable Included – Reliable connection to legacy POS terminals
- IT/CH Power Brick & Cord – Fully equipped for installation with UK-compatible power
- Multi-Interface Support – USB, RS-232, IBM 46xx integration
- Sanitisable Surfaces – Smooth, capacitive-touch buttons for clean, hygienic use
Product Specifications
Attribute | Details |
Brand | Datalogic |
Model | Magellan™ 9600i (9610 Series – Scanner Only) |
Form Factor | In-Counter (Short Platter, Shelf Mount) |
Platter Size | Short – 35.2 cm / 13.9 in |
Scan Engine | QuadVision™ 2D Area Imager (4 Cameras) |
Processor | IMX8 Multi-Core ARM, Embedded Linux |
Power Kit | IT/CH Power Brick & Cord (Included) |
Power Input | 12 VDC (100-240V AC Input) |
Power Consumption | Operating: 9.3W; Sleep: 7.3W |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5–95% RH, non-condensing |
Ambient Light Tolerance | Up to 86,080 lux |
ESD Protection | 25 kV Air Discharge |
Height Above Counter | 13.4 cm / 5.3 in |
Width | 29.2 cm / 11.5 in |
Depth Below Counter | 10.2 cm / 4.0 in |
OS Compatibility | Windows, Android, Linux, IBM 4690 |
Warranty | 1-Year Standard Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- Serial/RS232
- Midrange
- Grey
- General purpose
- Mid Level
- Retail
- 1 Year
- New
