Description

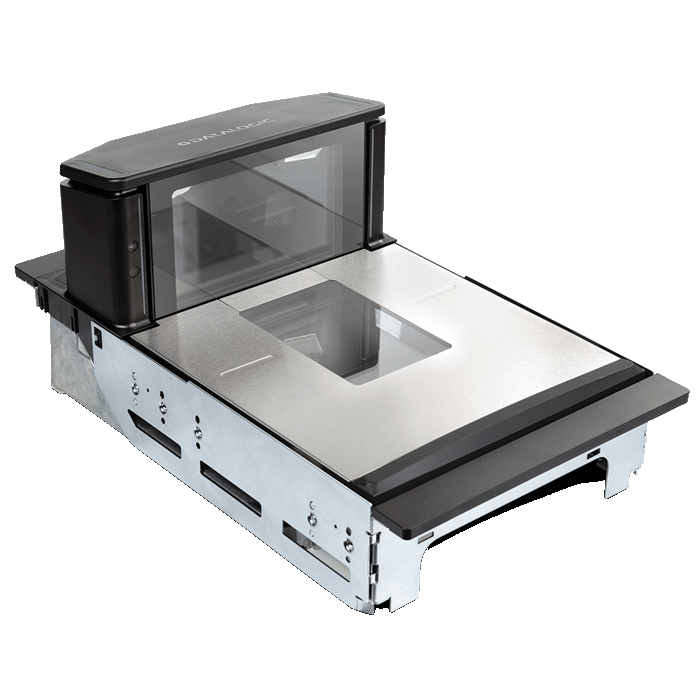

Enhance retail checkout with the Datalogic Magellan™ 9600i, the most advanced imaging scanner/scale available for high-throughput environments. Designed with a long platter, fixed produce rail, and shelf mount, this configuration includes dual displays for improved operator-customer interaction and a USB Powered Type A (POT) interface for simplified connectivity.
The integrated QuadVision™ system harnesses four high-resolution cameras and a powerful IMX8 processor to deliver unmatched 1D/2D barcode reading—even on damaged or poorly printed labels. With support for GS1 Digital Link and optional AI-ready hardware, it future-proofs your POS.
Loss prevention is elevated with ScaleSentry™ technology, which detects items incorrectly placed on the weighing surface and prevents shrink. The All-Weighs™ scale bonnet offers extended weighing support for oversized produce, ensuring maximum accuracy.
Ideal for large retailers, grocers, and multi-lane self-checkouts, the 9600i delivers maximum efficiency, hygiene compliance, and AI-readiness in a rugged, fully integrated design.
Product Features
- QuadVision™ 4-Camera Imaging – Fast and precise barcode capture across five sides.
- Dual Display Configuration – Improved cashier-customer communication and visibility.
- ScaleSentry™ Shrink Prevention – Infrared sensors alert on misplacement of items.
- All-Weighs™ Bonnet – Extended weighing platform for larger items.
- USB POT Interface – Simplified integration with powered USB support.
- Shelf Mount Design – Stable integration into a wide range of checkout layouts.
- Single Interval Scale – Weighs up to 15 kg with precision down to 0.005 kg.
- AI-Ready with Neural Processor Options – Supports future upgrades like Coral TPU and colour cameras.
- Smooth & Hygienic Surfaces – Easy to clean and designed for retail food environments.
- GS1 Digital Link Ready – Supports the future of barcode data encoding.
Product Specifications
Attribute | Details |
Brand | Datalogic |
Model | Magellan™ 9600i Scanner/Scale (9621) |
Mounting Type | Shelf Mount |
Platter Type | Long Platter with Fixed Produce Rail |
Display | Dual Display |
Scan Technology | QuadVision™ – 4-Camera 2D Area Imaging |
Processor | IMX8 Multi-Core with Embedded Linux OS |
Scale Type | Single Interval |
Scale Capacity | 0 – 15 kg |
Scale Accuracy | 0.005 kg minimum increment |
Power Requirements | 12 VDC, 9.3W nominal (scanner only) |
Max Static Weight | 68 kg |
Operating Temp | 10°C to 40°C |
Humidity | 5% to 95% (non-condensing) |
Environmental | EU RoHS, China RoHS, REACH Compliant |
OS Compatibility | Windows 10, Linux, Android, IBM 4690 |
Warranty | 1-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- Retail
- 1 Year
- New
